Product Number: CAT 5E HD-110 PP 48 2U

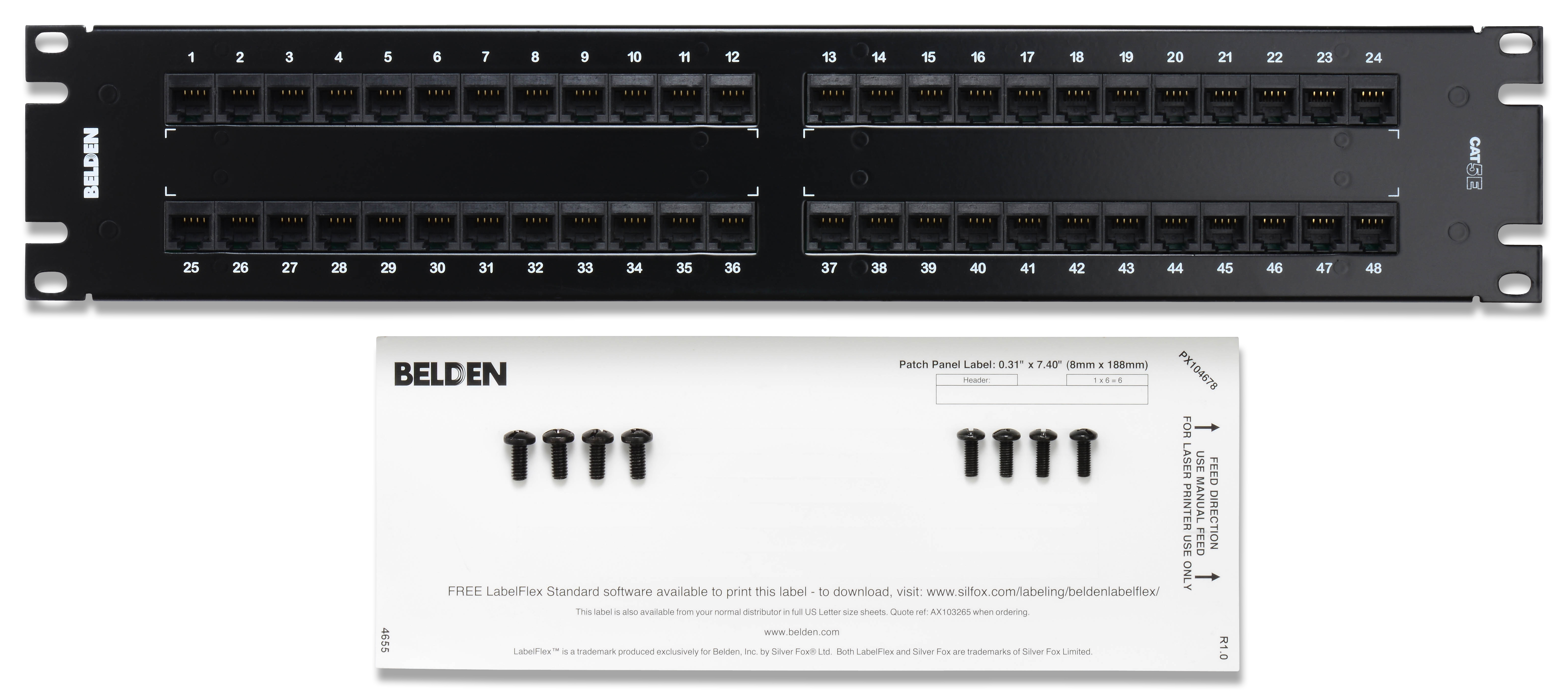

AX103259-CAT 5E HD-110 Patch Panel, 48 Port, 2U
CAT5E HD-110 Patch Panel, 48-port, 2U
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
IBDN System 1200, TIA Category 5e, ISO Class D, 1000BASE-T, 100BASE-T |
|---|
Physical Characteristics (Overall)
|
Height |
3.440 in |
|---|---|
|
Width |
19.000 in |
|
Depth |
1.35 in |
|
Port Count |
48 Port |
|
Front Connection |
Flush |
|
Packaging |
Individually packaged in a cardboard box. |
|
Weight |
1.700 lbs |
Connectors
Materials
| Description | Material |
|---|---|
| Panel | Steel |
Construction and Dimensions
|
Max Capacity |
48 connectors (preloaded) |
|---|
Electrical Characteristics
|
Dielectric Strength |
1,000 V RMS @ 60 Hz for 1 minute |
|---|---|
|
Current Rating |
1.500 A |
|
Insulation Resistance |
500 M-Ohm Minimum |
|
Termination Resistance |
2.5 mOhm |
Temperature Range
|
Installation Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
|
Operating Temperature Range |
-10°C To +60°C |
Mechanical Characteristics
|
Footprint/Type |
HDPP |
|---|---|
|
Tool Compatibility |
Gigaflex Connecting Tool (AX100749) |
|
Plug /Jack Compatibility |
RJ45 |
|
Termination Type |
Universal T568A/B |
Standards
|
Data Category |
Category 5e |
|---|---|
|
TIA/EIA Compliance |
Category 5 - ISO/IEC 11801:2002 Ed.2 |
|
Other Standards |
FCC Part 68, Subpart F, IEC 60603-7 |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
Flammability, LS0H, Toxicity Testing
|
Safety Listing |
ACA, Bi-national Standard Listed |
|---|
Related Part Numbers
|
Related Parts |
CAT5E Modular Cords |
|---|
Product Notes
|
Included Parts |
4 Screws (10x32); 4 Screws (12x24); 1 Printable LabelFlex Half-Sheet; 1 Installation Guide. |
|---|---|
|
Notes |
For proper installation refer to Installation Guide PX100733 included with the product |
History
|
Update and Revision |
Revision Number: 0.265 Revision Date: 11-19-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.265 Revision Date: 11-19-2024 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| AX103259 | Black | 611589005777 |
