Product Number: REVConnect WM Cable Mgmt Chan.

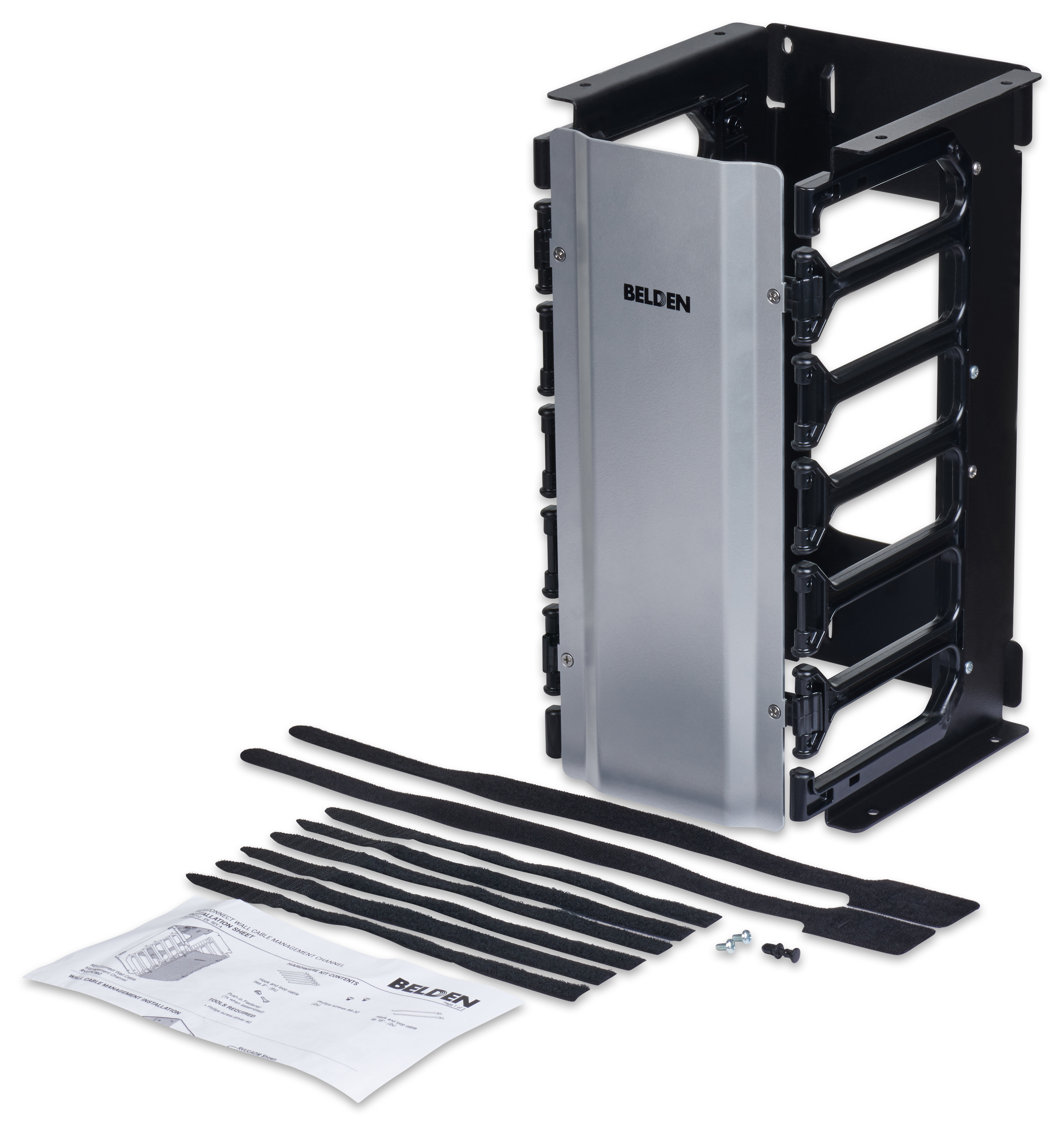

RVUPCMC-REVConnect Wall-Mount Cable Management Channel
The REVConnect Wall-Mount Cable Management Channel is designed for use with the REVConnect Wall-Mount kits
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
IBDN System 4800,3600,2400,1200,10GX |
|---|
Physical Characteristics (Overall)
|
Height |
15.175 in |
|---|---|
|
Width |
8.11 in |
|
Depth |
9.244 in |
|
Packaging |
Individually packaged in a cardboard box. |
|
Weight |
5.4 lbs |
Connectors
Materials
| Description | Material | Color |
|---|---|---|
| Module | Steel | Black |
| Cable Support | Lexan | Black |
| Door | Aluminum | Silver |
Temperature Range
|
Installation Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
Standards
|
UL Rating |
UL1863 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
Flammability, LS0H, Toxicity Testing
|
Safety Listing |
c(UL)us Listed |
|---|
Related Part Numbers
|
Related Parts |
REVConnect wall termination kit, REVConnect wall connector mount, REVConnect wall cable dressing module, REVConnect cable management channel, REVConnect wall horizontal channel kit |
|---|
|
Included Parts |
2 Screws #8-32; 8 Velcro cable tie; 1 Installation guide; 1 Grommet; 1 Plunger |
|---|
Product Notes
|
Notes |
Refer to Installation Guide PX106710 (English) or visit our web site at http://www.belden.com |
|---|
History
|
Update and Revision |
Revision Number: 0.232 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.232 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| RVUPCMC | Black | 611589237956 |
