RVEPPF1U48BK

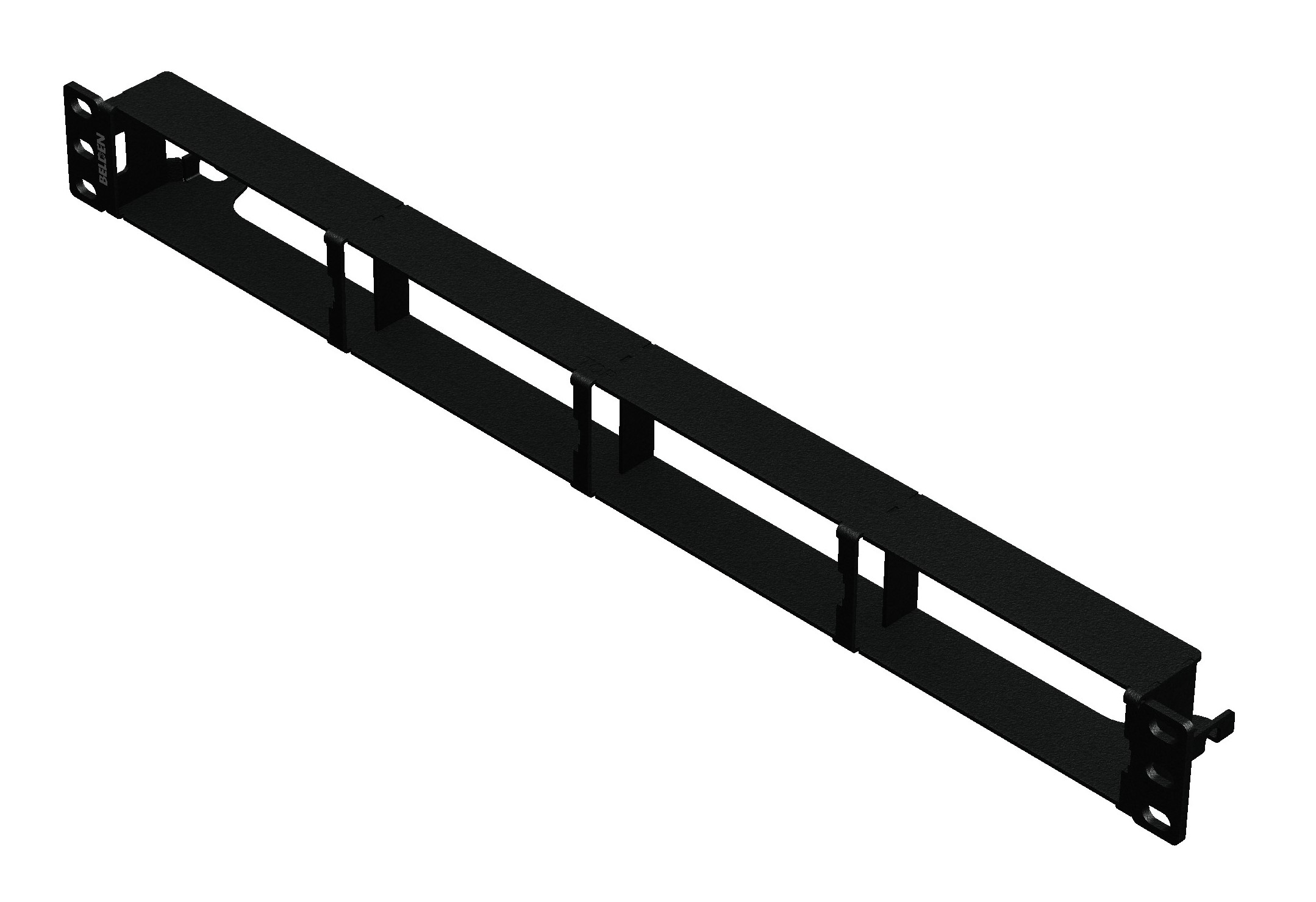

REVConnect Patch Panel, Empty, Flat, 1U, 48P

...
REVConnect Empty Patch Panel, Flat, 48 Port, 1U, Black
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

For use with REVConnect High Density Termination Modules

Physical Characteristics (Overall)

Height

1.73

Width

19

Depth

2

Front Connection

Flush

Packaging

Individually packaged in a cardboard box.

Weight

2.088

Connectors
Materials
Description Material Color
Panel Steel Black
Management Bar Steel Black
Construction and Dimensions

Max Capacity

48 Connectors

Temperature Range

Installation Temperature Range

-10°C to +60°C

Storage Temperature Range

-40°C to +70°C

Operating Temperature Range

-10°C to +60°C

Mechanical Characteristics

Footprint/Type

REVConnect

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU Directive 2011/65/EU (RoHS 2)

Yes

MII Order #39 (China RoHS)

EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing

c(UL)us Listed

Related Part Numbers

Related Parts

REVConnect 12-port Termination Modules, REVConnect Blank Modules

Product Notes

Included Parts

1 REVConnect Empty High Density Patch Panel; 1 Rear Cable Management Bar; 4 Screws (10x32); 4 Screws (12x24); 2 Velcro Straps; 1 Installation Guide

Notes

For proper installation, refer to Installation Guide PX107031.

History

Update and Revision

Revision Number: 0.27 Revision Date: 05-31-2024
