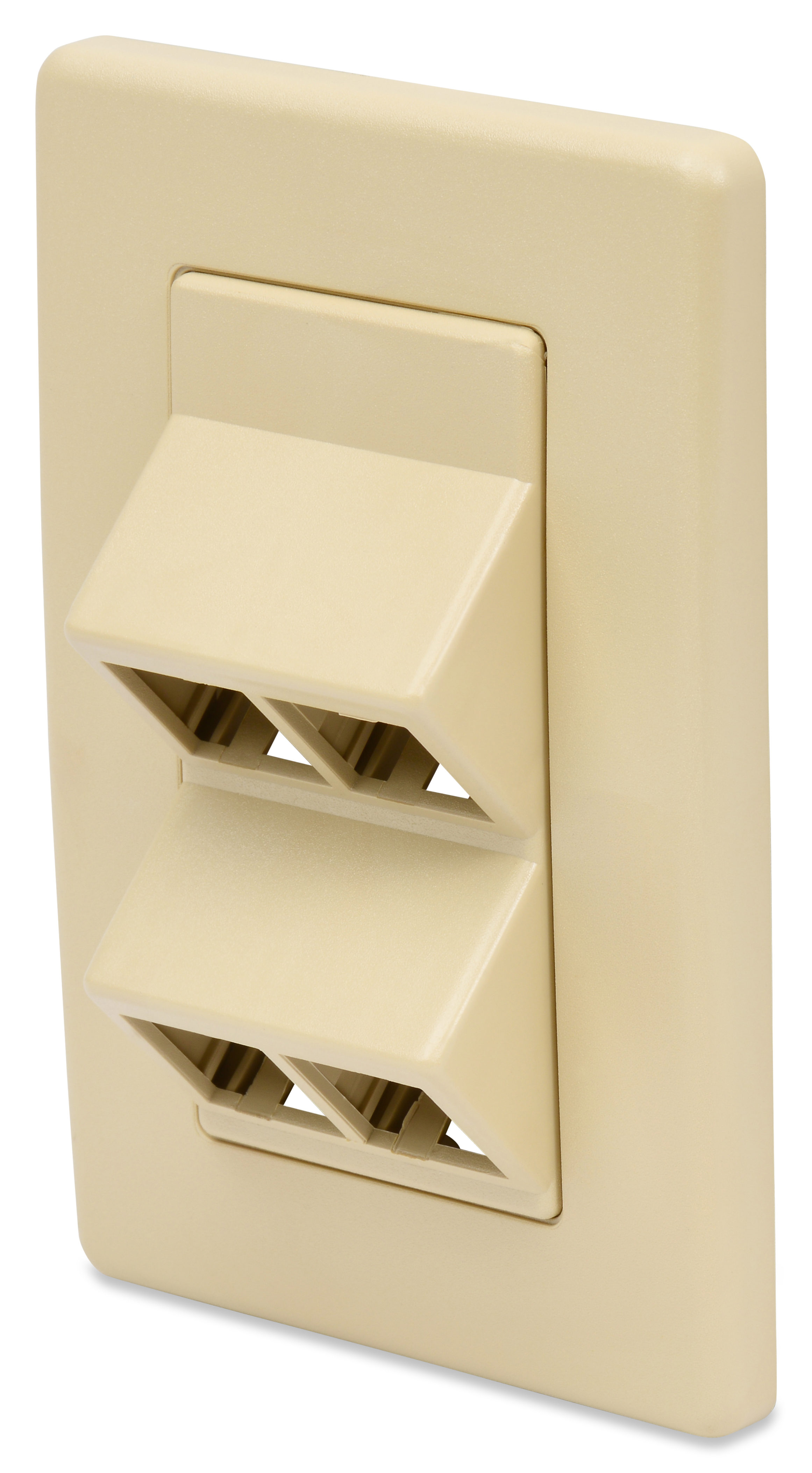

MDVO FACEPLATES

Angled & Flush MDVO Faceplates

Angled and Flush MDVO Faceplates are available in 1, 4, 8, & 12 Port Counts and many colors.

Request Quote

Share

Get Product Alerts

Specifications

Report An Error

Suitable Applications	Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800,3600, 2400 and 1200

Height	4.49 m
Width	3
Depth	107
Front Connection	Flush
Packaging	Individually packaged in a plastic bag.
Weight	0.22 kg

Material
Plastic - UL94V-0

Installation Temperature Range	-10 to 60°C
Storage Temperature Range	-40 to 70°C
Operating Temperature Range	-10 to 60°C

Footprint/Type	MDVO
Connector/Hardware Retention	20 lbs

Environmental Space	Indoor
EU Directive 2002/95/EC (RoHS)	Yes
MII Order #39 (China RoHS)	EUP 50

Safety Listing	ACA, Bi-national Standard Listed

Related Parts	Compatible with 10GX, CAT6+ and CAT5E MDVO-style Modular Jacks and MDVO Multimedia Modules

Included Parts	blank, 6-32 screw, installation sheet

Update and Revision	Revision Number: 0.188 Revision Date: 03-04-2023

Part Numbers

Item #	Color	Port Count
A0405256	Almond	1 Port
A0405295	Almond	8 Port
A0620807	Almond	12 Port
A0645268	Almond	4 Port
A0405258	Black	1 Port
A0405298	Black	8 Port
A0620809	Black	12 Port
A0645270	Black	4 Port
A0405255	Gray	1 Port
A0405294	Gray	8 Port
A0620806	Gray	12 Port
A0645267	Gray	4 Port
AX102585	Ivory	1 Port
AX102586	Ivory	8 Port
AX102587	Ivory	12 Port
AX102588	Ivory	4 Port
A0405296	White	8 Port
A0620808	White	12 Port
A0645269	White	4 Port

Resources

Catalogs

Copper Catalog

Installation Guides

MDVO Interface-Plates-Eng-INTERFACE_PLATES_EN.pdf
