Product Number: DDD Series Dual Link DVI-D

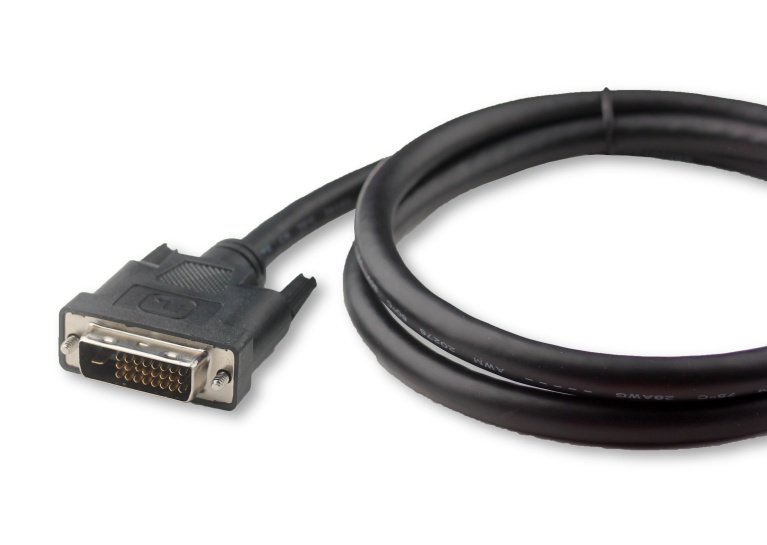

Dual Link DVI-D Cable Assembly
Dual Link DVI-D Cable Assembly, 2560 x 1600 (WQXGA) @ 60Hz, 7.92Gbits/sec as well as single link feature.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Digital Signage, Computer Monitors, Projectors, Gaming Consoles, DVD Players |
|---|
Physical Characteristics (Overall)
Outer Shield
| Type | Material | Material Trade Name | Coverage [%] |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% |
| Braid | Tinned Copper (TC) | 80% |
Outer Jacket
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.323 in |
Electrical Characteristics
Impedance
| Nominal Characteristic Impedance |
|---|
| 100 Ohm |
|
Table Notes |
+/- 10 Ohms |
|---|
Voltage
| Voltage Rating [V] |
|---|
| 30V |
|
Electrical Characteristics Notes |
Nominal Attenuation @ 825 MHz |
|---|---|
|
Performance Footnote1 |
Intrapair Delay Skew 150 ps |
|
Performance Footnote2 |
Interpair Delay Skew 2420 ps |
Temperature Range
|
Operating Temperature Range |
0°C To +80°C |
|---|
Mechanical Characteristics
|
Max. Pull Tension |
39 lbs |
|---|
Termination Interface
| Connection |
|---|
| DVI 24+1 Male |
Standards
|
UL Rating |
AWM 20276 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|
Suitability
|
Suitability - Indoor |
Yes |
|---|
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
UL 1685 Vertical Tray & VW-1 |
|---|
History
|
Update and Revision |
Revision Number: 0.100 Revision Date: 11-21-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.100 Revision Date: 11-21-2024 |
|---|
Part Numbers
| Item # | Color | Length |
|---|---|---|
| DDD001MB | Black | 1 m |
| DDD002MB | Black | 2 m |
| DDD003MB | Black | 3 m |
| DDD005MB | Black | 5 m |
