49616A

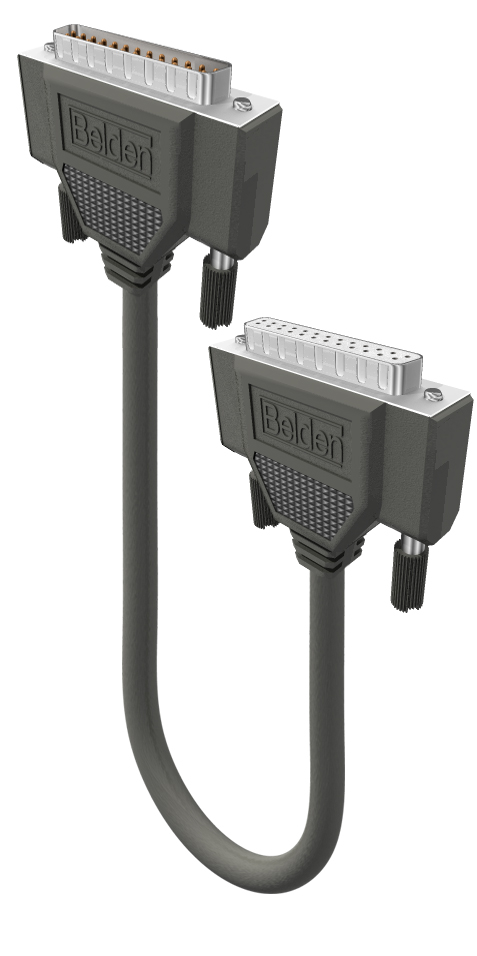

D-Subminiature Assembly, 10 ft, (25) 24 AWG (7x32) TC, S-R PVC/PVC, Foil+TC Braid Shld, CM

...
Twenty-five 24 AWG stranded (7x32) tinned copper conductors, S-R PVC insulation, Beldfoil® plus tinned copper braid shield, PVC jacket, ten foot length.

Regions Available: Global
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Conductors
24 7x32 TC - Tinned Copper 0.024 in 25

Conductor Count

25

Insulation
Material Nominal Wall Thickness
SR-PVC - Polyvinyl Chloride (Semi-Rigid) 0.01 in
Outer Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Bi-Laminate (Alum+Poly) Beldfoil® 100%
Braid 2 Tinned Copper (TC) 65%
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.37 in 0.04 in
Electrical Characteristics
Voltage
UL Voltage Rating
300 V RMS (UL AWM Style 2464)
Temperature Range

UL Temp Rating

80°C (UL AWM Style 2464)

Standards

NEC/(UL) Compliance

CM

UL AWM Style Compliance

AWM 2464 (300 V 80°C) (cable only)
Applicable Environmental and Other Programs

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating

300 V RMS (UL AWM Style 2464)

Plenum/Non-Plenum

Plenum (Y/N)

No

Product Notes

Notes

Molded handles are 100% shielded to guard against EMI/RFI. All connectors tin-plated and male connectors have detents for a positive shield to ground connection. Wiring is point-to-point with the shield to connector shell.

History

Update and Revision

Revision Number: 0.499 Revision Date: 02-03-2025

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Length UPC
49616A 060S2 Chrome 10 ft 612825154112
