49740A

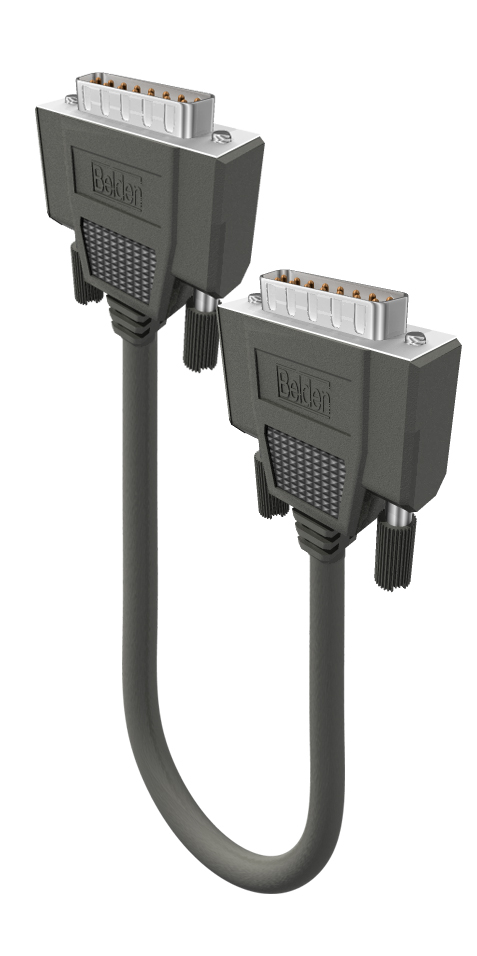

D-Subminiature Assembly, 5 ft, (15) 24 AWG (7x32) TC, S-R PVC/PVC, Foil+TC Braid Shld, CM

...
Fifteen 24 AWG stranded (7x32) tinned copper conductors, S-R PVC insulation, Beldfoil® plus tinned copper braid shield, PVC jacket, five foot length.
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Conductors
24 7x32 TC - Tinned Copper 0.024 in 15

Conductor Count

15

Insulation
Material Nominal Wall Thickness
SR-PVC - Polyvinyl Chloride (Semi-Rigid) 0.01 in
Outer Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Bi-Laminate (Alum+Poly) Beldfoil® 100%
Braid 2 Tinned Copper (TC) 65%
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.3 in 0.035 in
Electrical Characteristics
Voltage
UL Voltage Rating
300 V RMS (UL AWM Style 2464)
Temperature Range

UL Temp Rating

80°C (UL AWM Style 2464)

Standards

NEC/(UL) Compliance

CM

UL AWM Style Compliance

AWM 2464 (300 V 80°C) (cable only)
Applicable Environmental and Other Programs

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating

300 V RMS (UL AWM Style 2464)

Plenum/Non-Plenum

Plenum (Y/N)

No

Product Notes

Notes

Molded handles are 100% shielded to assist in FCC compliance and guard against EMI/RFI. All connectors tin-plated and male connectors have detents for positive ground connection. Wiring is point-to-point with the shield to connector shell.

History

Update and Revision

Revision Number: 0.367 Revision Date: 05-05-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Length UPC
49740A 060S2 Chrome 5 ft 612825154280
