Product Number: FMSMMBDxxxM

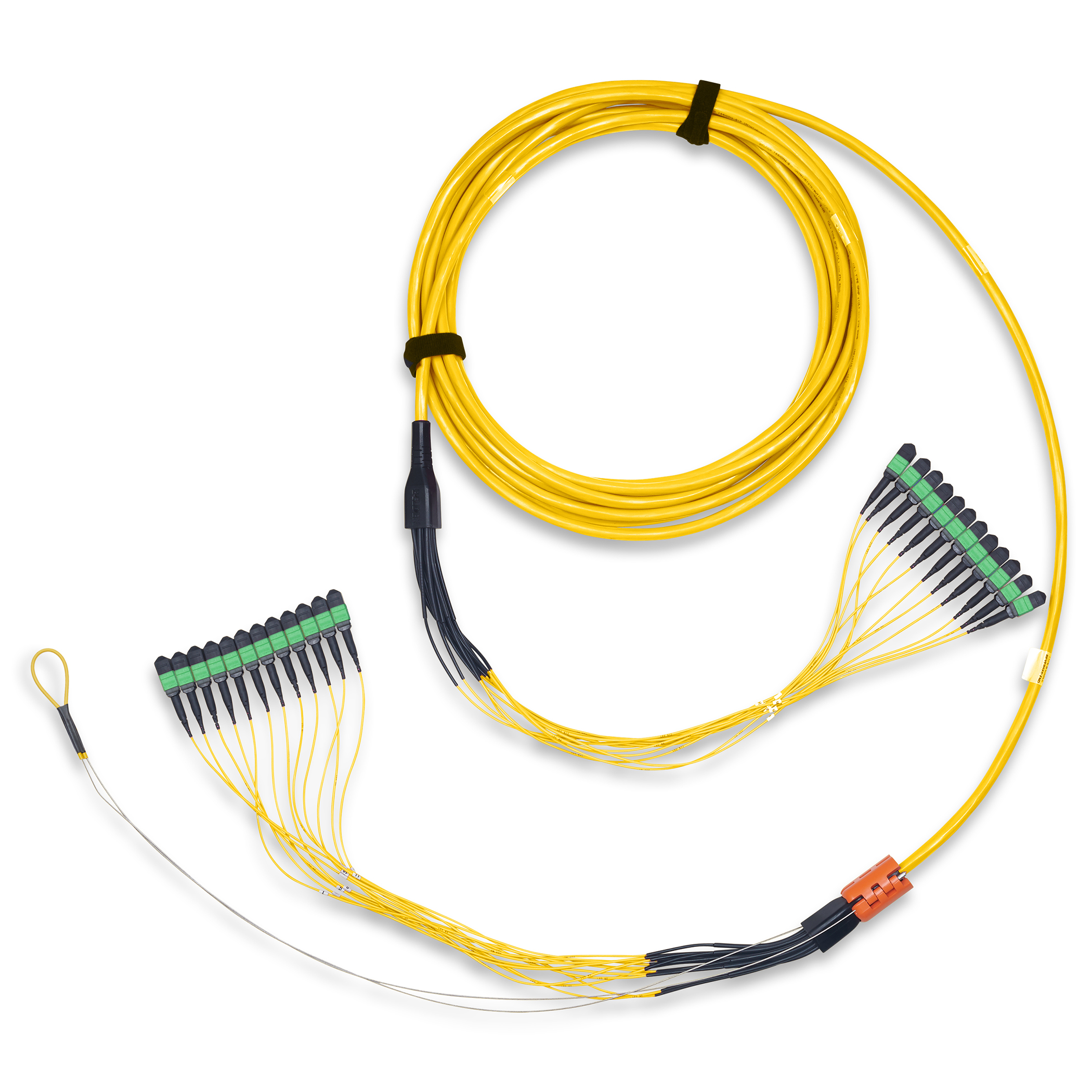

FMT OS2 MPO12(M-M) B 144F xxxM OFNP MD_2.0 0.5xINLINE YL
FX MPO TRUNK, OS2, MPO-12(MALE TO MALE), TYPE-B, xxx M (LENGTH IN METERS)PO (144 FIBERS), xxx M (LENGTH IN METERS), OFNP, MINI-DISTRIBUTION (2.0MM SUB-UNITS), FAN-OUT: 0.5M x IN-LINE, YELLOW JACKET
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Data Center, LAN, Equipment Room, Telecommunication room, Workstation Area |
|---|
Fiber Specifications
|
Fiber Type |
OS2 |
|---|---|
|
Fiber Core Diameter |
8.2/125 µm |
|
Fiber Count |
144 |
|
Fiber Color Coding |
TIA-598-D |
Physical Specifications
Connectors
| Description | Type | Housing Material | Housing Color | Boot Material | Boot Color |
|---|---|---|---|---|---|
| Connector A (Inside End) | MPO-12 Male | Plastic | Green | Rubber | Black |
| Connector B (Outside End) | MPO-12 Male | Plastic | Green | Rubber | Black |
Fan-out (Legs)
| Description | Transition | Length (m) | Diameter | Geometry |
|---|---|---|---|---|
| Connector A (Inside End) | LPM | 0.5 m | 2.0 mm | In-Line |
| Connector B (Outside End) | LPM | 0.5 m | 2.0 mm | In-Line |
Assembly Cable
| Cable Nominal OD | Jacket Color |
|---|---|
| 9.9 mm | Yellow |
Measurement
| Overall Assembly Length |
|---|
| xxx meters |
Overall Length Tolerances
| Range | Tolerance |
|---|---|
| 0 to 2 meters | +0.2 / -0 meter |
| 2.1 to 4.9 meters | +0.3 / -0 meter |
| 5 to 40 meters | +0.4 / -0 meter |
| over 40 meters | +1.0% / -0% |
Armor Specifications
|
Armor Type and Material |
No Armor |
|---|
Optical Characteristics
|
Polarity Identification |
Type-B |
|---|
Fiber Connector Performance
| Description | Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|---|
| Connector A (Inside End) | MPO-12 Male | 0.35 dB | 60 dB |
| Connector B (Outside End) | MPO-12 Male | 0.35 dB | 60 dB |
Mechanical Characteristics
|
Pulling Eye Type |
FX Pulling Eye |
|---|---|
|
Pulling Eye Location |
Outside End |
|
Pulling Eye Tension |
100 lbs |
|
Min. Bend Radius During Installation |
15x Cable OD |
|
Min. Bend Radius During Operation |
10x Cable OD |
Temperature Range
|
Operating Temperature Range |
-10C to +60C |
|---|---|
|
Storage Temperature Range |
-10C to +60C |
Standards and Compliance
|
Environmental Suitability |
Indoor |
|---|---|
|
Flammability / Reaction to Fire |
OFNP |
|
UL Rating |
Plenum |
|
TIA/EIA Compliance |
TIA/EIA 568.3 |
|
European Directive Compliance |
EU Directive 2011/65/EU (RoHS 2) |
|
MII Order #39 (China RoHS) |
EUP 50 |
|
Other Standard Compliance(s) |
ACMA |
Product Notes
|
Related Parts |
DCX system, FX UHD Patch Panels, ECX Patch Panels, FX Patch cords, FX MPO Trunks, FX Multi-fiber Trunks |
|---|
History
|
Update and Revision |
Revision Number: 0.13 Revision Date: 05-31-2024 |
|---|
