Product Number: 1513C

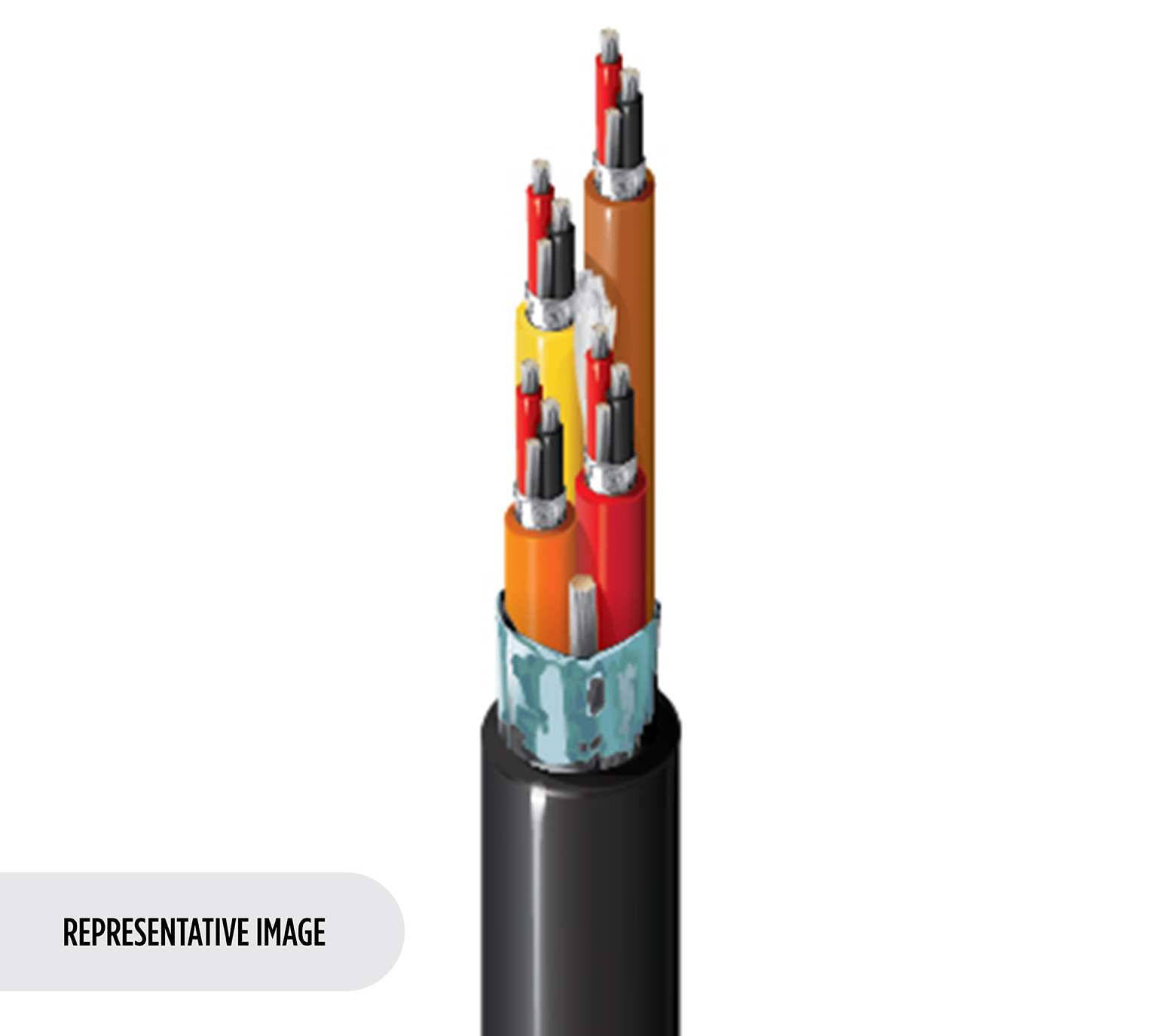

Audio Snake Cable, #24-12pr Str TC, Ind. Shielded & Jacketed, O/A Foil, PVC Jkt, Ripcord, CM, Flexible
Audio Snake Cable, 12 Pair 24 AWG (7 x 32) Tinned Copper, PP Insulation, Individually Foil Shielded and PVC Jacketed, Overall Beldfoil® Shield, PVC jacket, Ripcord, CM, Flexible
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 12 | 24 AWG | 7x32 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|---|---|
| Pair(s) | PP - Polypropylene | 0.008 in (0.20 mm) | 0.04 in (1.0 mm) | Black & Red | |
| Yellow, Green, Blue, Violet, Grey, White, Black, Tan, Pink, Brown, Red, Orange | The Colors represented in this rows are for Inner Jacket colors |
Inner Shield
| Element | Shield Type | Material | Coverage | Drainwire Type | Notes |
|---|---|---|---|---|---|
| Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC | Individual pair tapes are adhered to their inner jackets for easy stripping |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 18 AWG (65x36) TC |
Inner Jacket
| Element | Material | Nom. Thickness | Nom. Diameter |
|---|---|---|---|
| Pair(s) | PVC - Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.113 in (2.87 mm) |
|
Table Notes |
Inner jackets are numbered and are colored: Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black, Tan, Pink |
|---|
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.045 in (1.1 mm) | 0.561 in (14.2 mm) | Yes |
|
Overall Cable Diameter (Nominal) |
0.561 in (14.2 mm) |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Pair(s) | 23.3 Ohm/1000ft | 31 pF/ft (100 pF/m) | 58 pF/ft (190 pF/m) | 50 Ohm | 66% | 1.05 Amps per conductor @ 25°C |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CM) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 75°C | -35°C to +75°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 5.6 in (140 mm) | 5.6 in (140 mm) |
|
Max. Pull Tension |
220.4 lbs (99.97 kg) |
|---|---|
|
Bulk Cable Weight |
162 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor (Not Riser or Plenum), Indoor |
|---|---|
|
Flammability / Reaction to Fire |
UL 1685 FT4 Loading, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 800, CM |
|
CEC / C(UL) Compliance |
CM |
|
European Directive Compliance |
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
History
|
Update and Revision |
Revision Number: 0.516 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.516 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 1513C B59500 | Black, Matte | Reel | 500 ft | 612825116851 | C |
| 1513C B591000 | Black, Matte | Reel | 1,000 ft | 612825116844 | C |
| 1513C B595000 | Black, Matte | Reel | 5,000 ft | 612825431237 |
