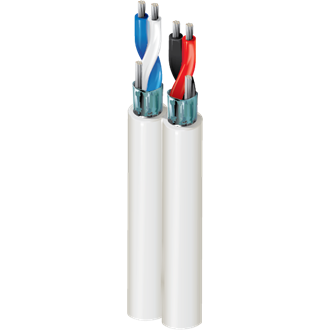

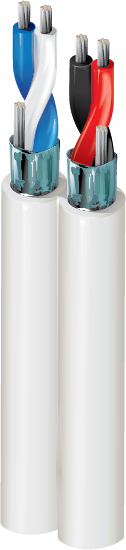

Product Number: 1801BD
Audio Snake Cable, 2 Pair 24 AWG, TC, Individually Shielded, CMP
Digital Audio Snake Cable, Plenum-CMP, 2-24 AWG tinned copper pairs, foam FEP insulation, Flamarrest® jacket, Parallel construction
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Recording Studio, Radio Broadcast, Sports Stadium, Nurse Call |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Pairs |
|---|---|---|---|---|
| 24 | 7x32 | TC - Tinned Copper | 0.024 in | 2 |
|
Conductor Count |
4 |
|---|
Insulation
| Material | Material Trade Name | Nominal Diameter |
|---|---|---|
| FEP - Fluorinated Ethylene Propylene (Foam) | Teflon® | 0.066 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Red & Black |
| 2 | White & Blue |
Inner Shield
| Type | Material | Material Trade Name | Drainwire Material | Drainwire AWG |
|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | TC - Tinned Copper | 24 |
Outer Shield
| Material | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|
| Bi-Laminate (Alum+Poly) | 100% | TC - Tinned Copper | 24 | 7x32 |
Outer Jacket
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.165 x 0.345 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR |
|---|
| 23.7 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 12 pF/ft | 26 pF/ft |
Inductance
| Nominal Inductance |
|---|
| 0.18 µH/ft |
Impedance
| Nominal Characteristic Impedance |
|---|
| 110 Ohm |
High Frequency (Nominal/Typical)
| Nom. Insertion Loss |
|---|
| 0.82 dB/100ft |
| 1.01 dB/100ft |
| 1.02 dB/100ft |
| 1.08 dB/100ft |
| 1.15 dB/100ft |
| 1.16 dB/100ft |
| 1.23 dB/100ft |
| 1.34 dB/100ft |
| 1.38 dB/100ft |
| 1.58 dB/100ft |
| 1.79 dB/100ft |
| 1.85 dB/100ft |
| 2.05 dB/100ft |
| 2.34 dB/100ft |
| 2.43 dB/100ft |
| 3.33 dB/100ft |
Delay
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 78% |
High Frequency
| Frequency [MHz] |
|---|
| 0.384 MHz |
| 0.7056 MHz |
| 0.768 MHz |
| 1.024 MHz |
| 1.4112 MHz |
| 1.536 MHz |
| 2.048 MHz |
| 2.8224 MHz |
| 3.072 MHz |
| 4.096 MHz |
| 5.6448 MHz |
| 6.144 MHz |
| 8.192 MHz |
| 11.2896 MHz |
| 12.288 MHz |
| 24.576 MHz |
Current
| Max. Recommended Current [A] |
|---|
| 2.9 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
|
Operating Temperature Range |
-20°C To +60°C |
|---|
Mechanical Characteristics
|
UV Resistance |
No |
|---|---|
|
Bulk Cable Weight |
26 lbs/1000ft |
|
Max. Pull Tension |
33 lbs |
|
Min. Bend Radius/Minor Axis |
1.75 in |
Standards
|
NEC/(UL) Compliance |
CMP |
|---|---|
|
CEC/C(UL) Compliance |
CMP |
|
Other Specification |
AES/EBU |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor - Plenum |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/96/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Aerial |
No |
|---|---|
|
Suitability - Burial |
No |
|
Suitability - Hazardous Locations |
No |
|
Suitability - Indoor |
Yes |
|
Suitability - Outdoor |
No |
|
Suitability - Sunlight Resistance |
No |
Flammability, LS0H, Toxicity Testing
|
UL voltage rating |
300 V RMS |
|---|
Plenum/Non-Plenum
|
Plenum (Y/N) |
Yes |
|---|
Product Notes
|
Notes |
Teflon« is a registered trademark of Chemours and is used under license by Belden, Inc. |
|---|
History
|
Update and Revision |
Revision Number: 0.375 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.375 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 1801BD 8771000 | Natural | Reel | 1,000 ft | 612825122982 |
| 1801BD Z4B1000 | Violet Z4B | Reel | 1,000 ft | 612825122975 |
