70056

16 PAIR AES/EBU, 26AWG, ISTP, LSZH

...
DIGITAL AUDIO 16 PAIR AES/EBU, 26AWG/0.14mm², ISTP, LSZH
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Digital multi-modulation cable used in professional studios for the transmission of analogue and digital audio signals; Designed to meet the requirements of the AES/EBU specification

Physical Characteristics (Overall)
Conductor
AWG Stranding Material Cross Section Construction n x D No. of Pairs
26 7x34 BC-OFHC - Oxygen-Free Bare Copper (High Conductivity) 0.14 mm² 7x0.15 mm 16

Conductor Count

32

Insulation
Type Material Nominal Diameter Diameter +/- Tolerance
Insulation PE - Polyethylene (Foam) 1.10 mm 0.03 mm
Color Chart
Number Color
Pair 1 t/m 16 White & Blue
Inner Shield
Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Bi-Laminate (Alum+Poly) Beldfoil® 100% Stranded tinned copper 26 7x0.16 mm

Table Notes

Aluminum inside

Inner Jacket
Material Nominal Diameter Diameter +/- Tolerance
LSZH - Low Smoke Zero Halogen (Flame Retardant) 2.90 mm 0.10 mm

Table Notes

Elements are numbered for identification

Outer Shield
Type Material Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) 100% TC - Tinned Copper 26 7x0.16 mm
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant) 16.50 mm 1.30 mm

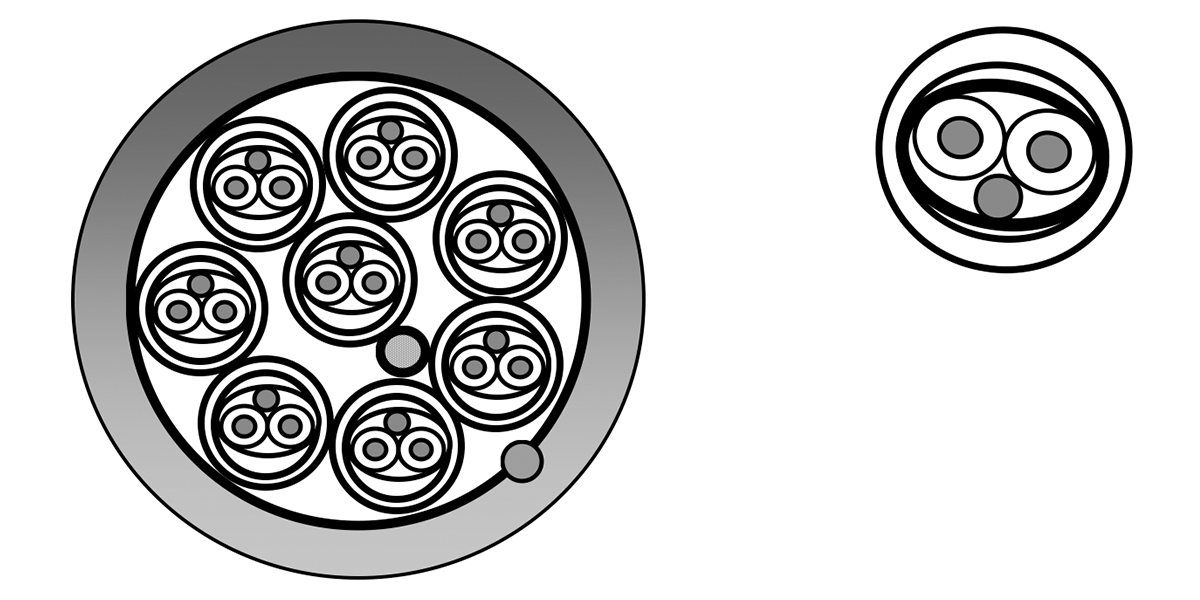

Construction and Dimensions
Cabling
Description Filler
1 filler + 16 pairs Polypropylene
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
134.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
40 pF/m
Impedance
Frequency [MHz] Nominal Characteristic Impedance Nominal Characteristic Tolerance
0.1 - 6 110 Ohm +/- 15 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
80%
Temperature Range

Other Temp Range

-30 to +70 °C

Mechanical Characteristics

Min. Bend Radius During Installation

165 mm

Min. Bend Radius During Operation

247.5 mm

Applicable Environmental and Other Programs

Environmental Space

Indoor
Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-1-2

LOI of Jacket

Min. 34 %

IEC 60754-1 - Halogen Amount

Zero

IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity

2.5 µS/mm

IEC 60754-2 - Halogen Acid Gas Amount - Min. pH

4.3

History

Update and Revision

Revision Number: 0.175 Revision Date: 01-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
70056.00500 Violet Reel 500 m 8719605010285
