70069CH

2 PAIR AES/EBU, 22AWG, ISTP, LSZH-C

...
DIGITAL AUDIO 2 PAIR AES/EBU, 22AWG/0.34mm², ISTP, LSZH-C
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Digital multi-modulation cable used in professional studios for the transmission of analogue and digital audio signals.; Designed to meet the requirements of the AES/EBU specification

Physical Characteristics (Overall)
Conductor
AWG Stranding Material Construction n x D No. of Pairs
22 7x30 BC-OFHC - Oxygen-Free Bare Copper (High Conductivity) 7x0.25 mm 2

Conductor Count

4

Total Number of Pairs

2

Insulation
Material Nominal Diameter Diameter +/- Tolerance
PE - Polyethylene (Foam) 2.1 mm 0.05 mm
Color Chart
Number Color
Pair 1 t/m 2 Red & Black
Inner Shield
Type Material Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D Drainwire Position
Tape Bi-Laminate (Alum+Poly) 100% Stranded tinned copper 22 7x0.25 mm Under shielding foil
Inner Jacket
Material Nominal Diameter Diameter +/- Tolerance
LSZH - Low Smoke Zero Halogen (Flame Retardant) 5.3 mm 0.1 mm

Table Notes

Elements are numbered for identification

Outer Shield
Material
Bi-Laminate (Alum+Poly)
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance
LSZH - Low Smoke Zero Halogen (Flame Retardant) 13.5 mm 0.1 mm

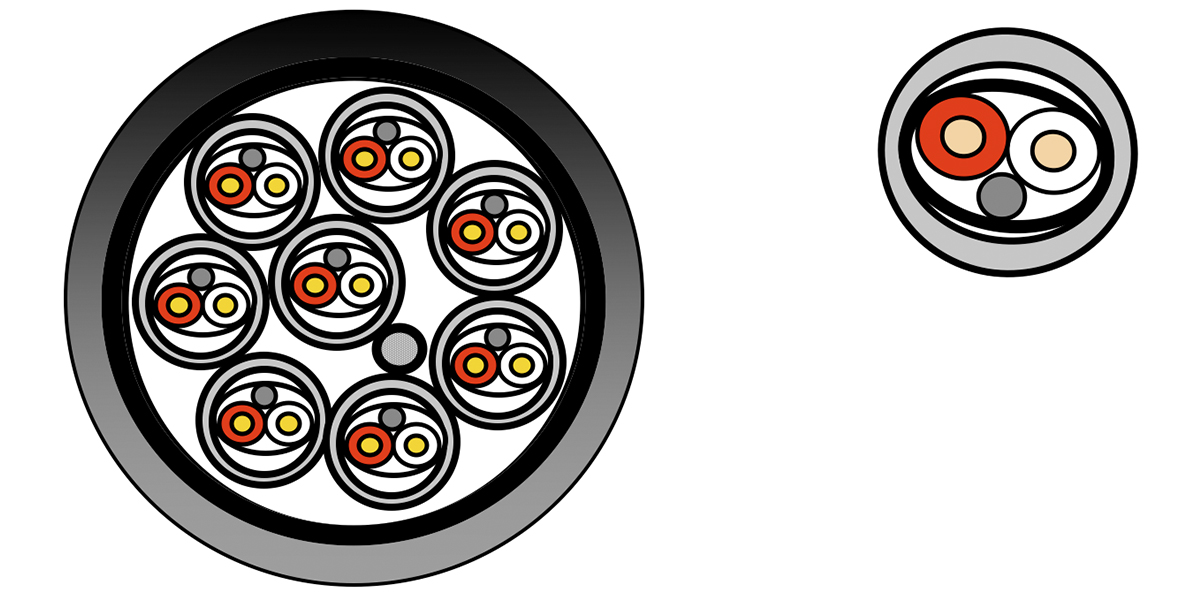

Construction and Dimensions
Cabling
Description
1 center filler + 2 pairs + stranded tinnend copper drainwire (22AWG)(7x0.25) covered with a non-woven foil
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
86 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
40 pF/m
Impedance
Nominal Characteristic Impedance Nominal Characteristic Tolerance
110 Ohm 15 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
80%
Temperature Range

Other Temp Range

-30-+70 °C

Mechanical Characteristics

Min Setting Radius

67.5 mm
Standards

CPR Euroclass

Dca-s1,d1,a1

Applicable Environmental and Other Programs

Environmental Space

Indoor - Euroclass Dca

EU Directive 2011/65/EU (RoHS 2)

Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-1-2, IEC 60332-3-24

IEC 60754-1 - Halogen Amount

Zero

IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity

10 µS/mm

IEC 60754-2 - Halogen Acid Gas Amount - Min. pH

4.3

IEC 61034-2 - Smoke Density Min. Transmittance

60%

History

Update and Revision

Revision Number: 0.144 Revision Date: 01-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
70069CH.00500 Gray Reel 500 m 8719605124272
