BE43907

Speaker Cable PVC 8x2.5mm², CPR Eca.

...
Speaker Cable, 8 Conductor 2.5mm² (50 x 0.25mm) Oxygen-Free Bare Copper (High Conductivity), PVC Insulation, PVC Jacket, Flexible, CPR Euroclass Eca.

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Speaker cable

Physical Characteristics (Overall)
Conductor
AWG Stranding Material Cross Section Construction n x D
13 Stranded BC - Bare Copper 2.5 mm² 320x0.10 mm

Conductor Count

8

Insulation
Element Type Material Nominal Diameter Diameter +/- Tolerance
Outer Conductor(s) Insulation PVC - Polyvinyl Chloride 2.85 mm 0.1 mm
Central Conductor PVC - Polyvinyl Chloride 3.75 mm 0.1 mm
Color Chart
Number Color
Wire 1 (central) Red
Wire 2 Blue
Wire 3 Black
Wire 4 White
Wire 5 Green
Wire 6 Yellow
Wire 7 Purple
Wire 8 Brown
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance
PVC - Polyvinyl Chloride 12.4 mm 0.3 mm

Table Notes

Matte Finish

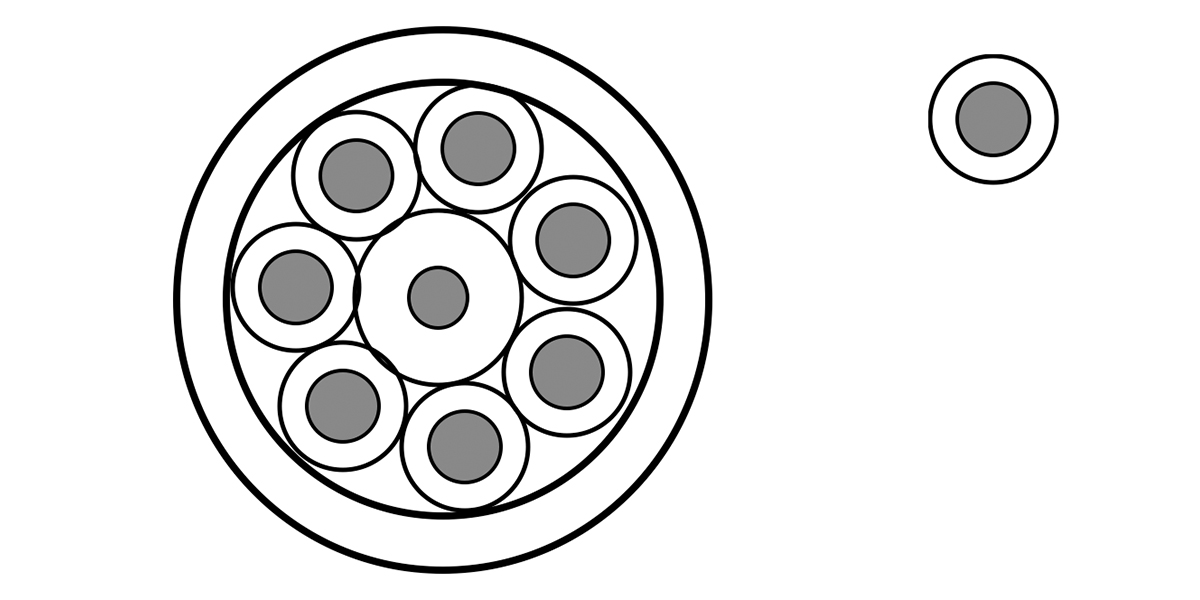

Construction and Dimensions
Cabling
Description
8 elements twisted together covered with a non-woven separating foil
Electrical Characteristics
Conductor DCR
Max. Conductor DCR
8 Ohm/km
Current
Max. Recommended Current [A]
9 A
Voltage
Voltage Rating [V]
300 V
Temperature Range

Storage Temperature Range

-15°C To +60°C

Other Temp Range

-5 to +60 °C

Mechanical Characteristics

Max. Pull Tension

20 N

Min. Bend Radius During Installation

65 mm

Standards

CPR Euroclass

Eca

Applicable Environmental and Other Programs

Environmental Space

Indoor - Euroclass Eca
Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-1-2
History

Update and Revision

Revision Number: 0.172 Revision Date: 02-03-2025

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
BE43907.00250 Black Reel 250 m 8719605026651
