Product Number: BE46936
10 PAIR AES/EBU, 26AWG, ISTP, LSZH, STAGE
10 PAIR AES/EBU, 26AWG/0.14mm², ISTP, LSZH, STAGE
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Digital multi-modulation cable used in professional studiotechnics; For analogue and digital transmission in instruments for frequency modulation |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Construction n x D |
|---|---|---|---|
| 26 | 18x38 | TC - Tinned Copper | 18x0.10 mm |
|
Conductor Count |
20 |
|---|---|
|
Total Number of Pairs |
10 |
Insulation
| Type | Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|---|
| Insulation | PE - Polyethylene | 1.13 mm | 0.03 mm |
Color Chart
| Number | Color |
|---|---|
| Pair 1 t/m 10 | White & Blue |
Inner Shield
| Type | Material | Min. Coverage [%] |
|---|---|---|
| Tape | Polyester | |
| Spiral Serve / Screen | Tinned Copper (TC) | 90% |
Inner Jacket
| Material | Color | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness |
|---|---|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | Gray | 2.90 mm | 0.10 mm | 0.20 mm |
|
Table Notes |
Elements are numbered |
|---|
Outer Shield
| Type | Material | Drainwire Material | Drainwire AWG | Drainwire Construction n x D | Drainwire Position | Min. Coverage [%] |
|---|---|---|---|---|---|---|
| Braid | Tinned Copper (TC) | TC - Tinned Copper | 26 | 18x0.10 mm | Over separating foil, under braid | 90% |
Outer Jacket
| Material | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness |
|---|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 13.30 mm | 0.50 mm | 1.10 mm |

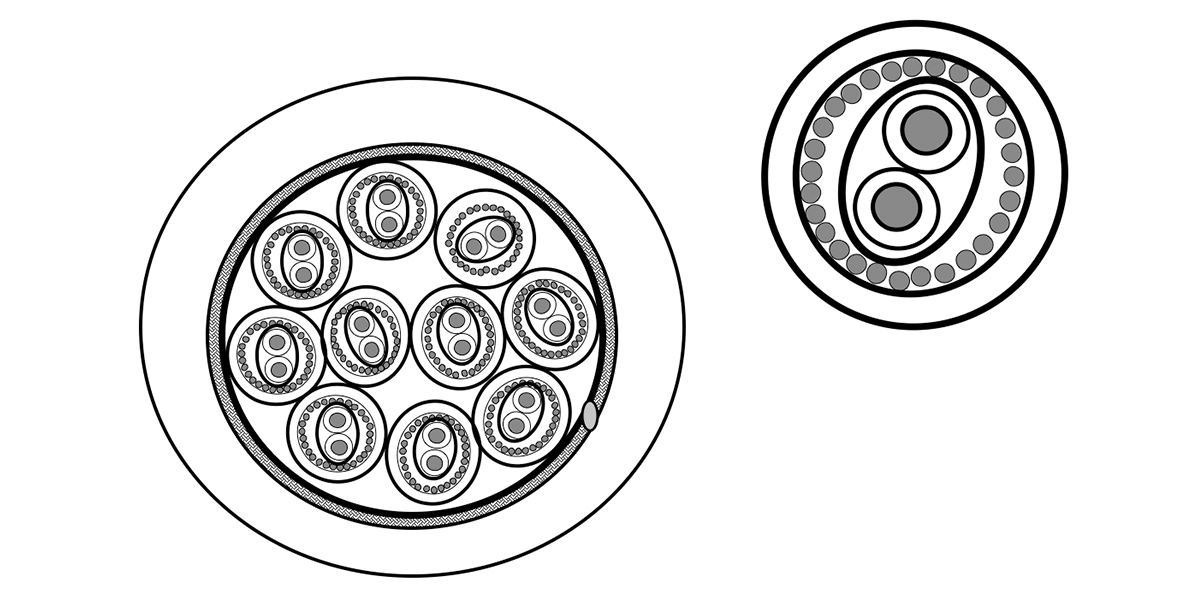

Construction and Dimensions
Cabling
| Description |
|---|
| 10 pairs covered with a non-woven separating foil |
Electrical Characteristics
Conductor DCR
| Max. Conductor DCR | Nominal Inner Shield DCR |
|---|---|
| 130 Ohm/km | 40 Ohm/km |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|
| 56 pF/m | 220 pF/m |
|
Min Insulation Resistance |
2000 MOhm*km |
|---|
Inductance
| Nominal Pair Inductance |
|---|
| 0.80 µH/m |
Impedance
| Frequency [MHz] | Nominal Characteristic Impedance | Nominal Characteristic Tolerance |
|---|---|---|
| 0.1 - 6 | 110 Ohm | +/- 10 Ohm |
| 6 - 20 | 110 Ohm | 20 Ohm |
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 2 MHz | 3.1 dB/100m |
| 4 MHz | 6.2 dB/100m |
| 5 MHz | 7.3 dB/100m |
| 6 MHz | 8.2 dB/100m |
| 12 MHz | 13.1 dB/100m |
| 24 MHz | 21.1 dB/100m |
Delay
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 60% |
Temperature Range
|
Other Temp Range |
-30 to +70 °C |
|---|
Mechanical Characteristics
|
Max. Pull Tension |
500 N |
|---|---|
|
Min. Bend Radius During Installation |
133 mm |
|
Min. Bend Radius During Operation |
199.5 mm |
Standards
|
CENELEC Compliance |
EN 50290-2-20 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|
Flammability, LS0H, Toxicity Testing
|
IEC Flammability |
IEC 60332-3-24 |
|---|---|
|
IEC 60754-1 - Halogen Amount |
Zero |
|
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity |
2.5 µS/mm |
|
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH |
4.3 |
History
|
Update and Revision |
Revision Number: 0.172 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.172 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| BE46936.01250 | Gray | Reel | 250 m | 8719605027788 |
| BE46936.01500 | Gray | Reel | 500 m | 8719605027795 |
| BE46936.02250 | Violet | Reel | 250 m | 8719605122742 |
| BE46936.02500 | Violet | Reel | 500 m | 8719605122759 |
