Product Number: 5002UP
Audio Cable, 4 Conductor 12 AWG, BC, CL3

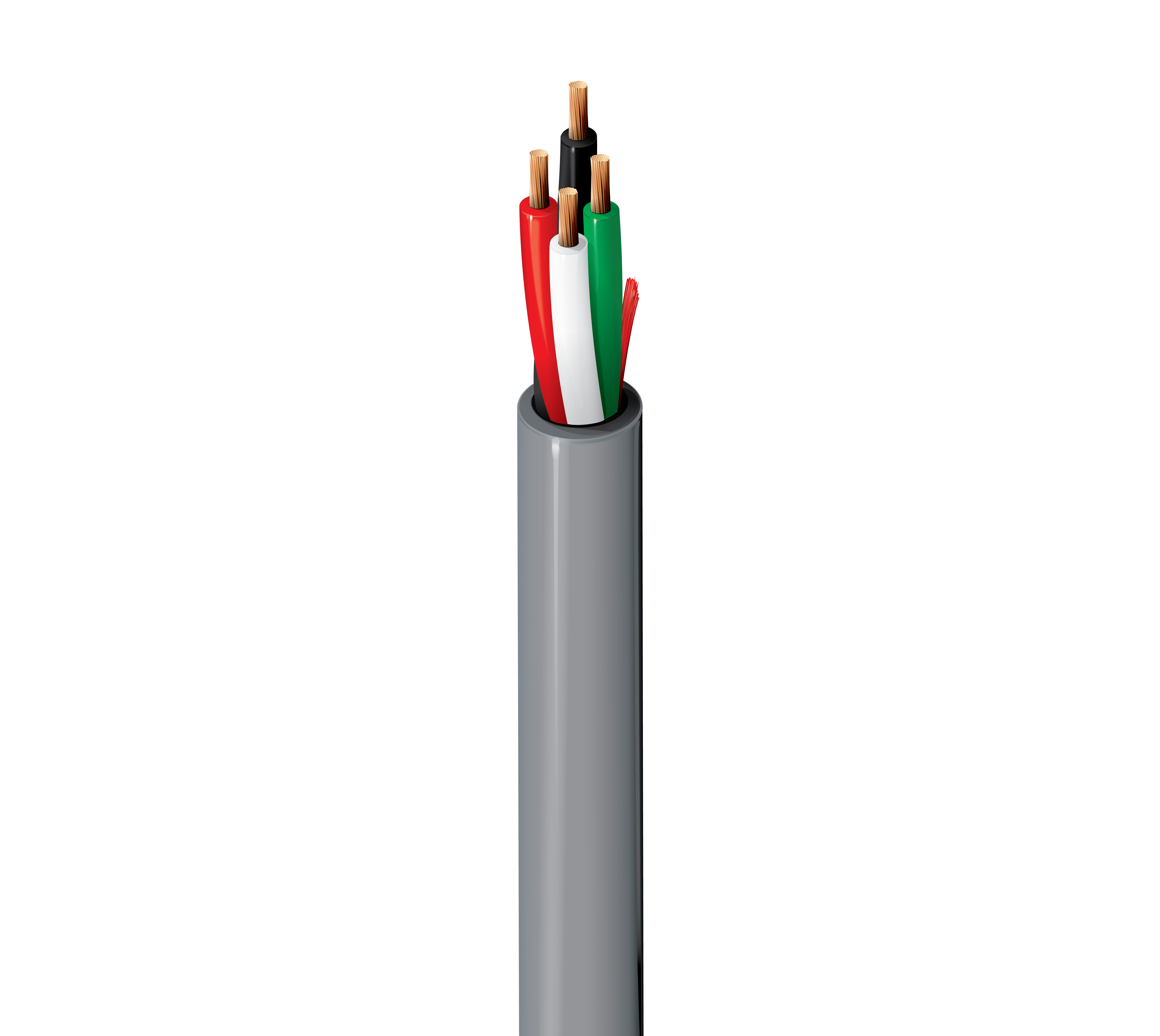

Audio Cable, 4 Conductor 12 AWG, highly flexible stranded (65x30) bare copper conductors with PVC insulation, CL3, PVC jacket with ripcord
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
High Flex Audio/Speaker |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 4 | 12 AWG | 65x30 | BC - Bare Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PVC - Polyvinyl Chloride | 0.023 in (0.58 mm) | 0.138 in (3.51 mm) | Black, White, Red, Green |
Outer Shield
| Material |
|---|
| No Shield |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.022 in (0.56 mm) | 0.377 in (9.58 mm) | Yes |
|
Overall Cable Diameter (Nominal) |
0.377 in (9.58 mm) |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Max. Current |
|---|---|---|---|
| Conductor(s) | 1.56 Ohm/1000ft | 32 pF/ft (100 pF/m) | 24 Amps per conductor @ 30°C |
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 75°C | -20°C to +75°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 3.7 in (94 mm) | 3.7 in (94 mm) |
|
Max. Pull Tension |
338 lbs (153 kg) |
|---|---|
|
Bulk Cable Weight |
113 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor (Not Riser or Plenum) |
|---|---|
|
Flammability / Reaction to Fire |
UL 1685 UL loading |
|
NEC / UL Compliance |
Article 725, CL3 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
History
|
Update and Revision |
Revision Number: 0.509 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.509 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC |
|---|---|---|---|---|
| 5002UP 010500 | Black | Reel | 500 ft | 612825155720 |
| 5002UP 0101000 | Black | Reel | 1,000 ft | 612825155799 |
| 5002UP D15500 | Blue | Reel | 500 ft | 611589226523 |
| 5002UP 008500 | Gray | Reel | 500 ft | 612825155768 |
