Product Number: 5T00UP

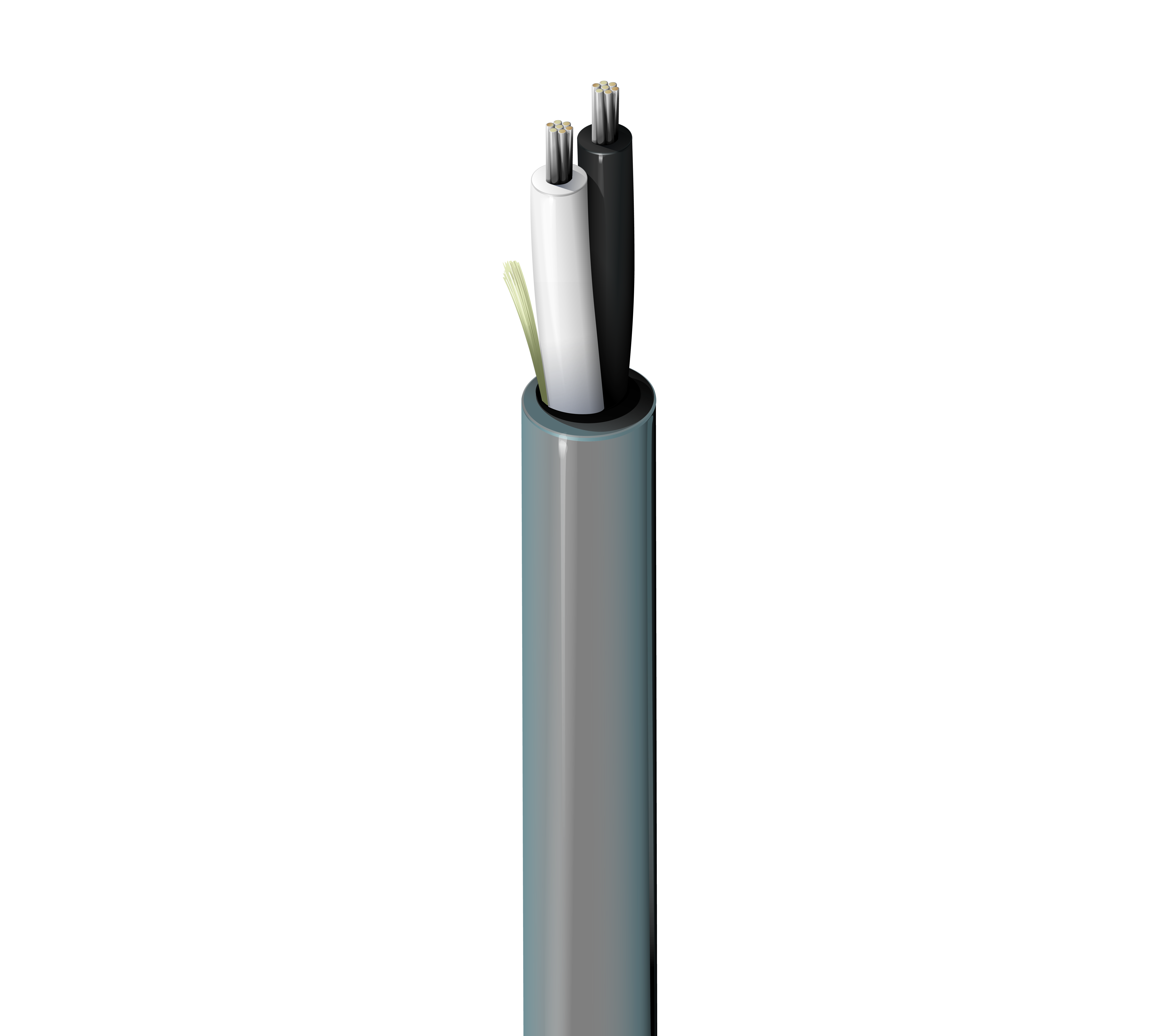

Audio Cable, 2 Conductor 10 AWG, BC, Unshielded, CL2
Audio Cable, Rated-CL2, 2-10 AWG highly flexible stranded bare copper conductors with PVC insulation, PVC jacket with ripcord
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 2 | 10 AWG | 65x28 | BC - Bare Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PVC - Polyvinyl Chloride | 0.020 in (0.51 mm) | 0.152 in (3.86 mm) | Black, White |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.026 in (0.66 mm) | 0.356 in (9.04 mm) | Yes |
|
Overall Cable Diameter (Nominal) |
0.356 in (9.04 mm) |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Max. Current |
|---|---|---|---|
| Conductor(s) | 1.03 Ohm/1000ft | 26 pF/ft (85 pF/m) | 27.8 Amps per conductor @ 25°C |
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 75°C | -20°C to +75°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 3.6 in (91 mm) | 3.6 in (91 mm) |
|
Max. Pull Tension |
260 lbs (120 kg) |
|---|---|
|
Bulk Cable Weight |
91 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor (Not Riser or Plenum), Indoor |
|---|---|
|
Flammability / Reaction to Fire |
UL 1685 UL loading , IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 725, CL2 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Plenum Number |
6T00UP |
History
|
Update and Revision |
Revision Number: 0.487 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.487 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 5T00UP 0101000 | Black | Reel | 1,000 ft | 612825437871 | C |
| 5T00UP 0105000 | Black | Reel | 5,000 ft | ||
| 5T00UP 008500 | Gray | Reel | 500 ft | 612825154495 | C |
| 5T00UP 0081000 | Gray | Reel | 1,000 ft | 612825154488 | C |
