Product Number: 8279

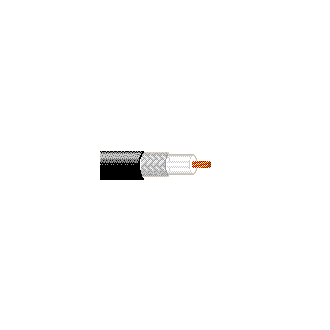

Precision Video Coax, Miniature, #23 Stranded BC, 95% TC Braid
23 AWG stranded (7x32) .023" bare compacted copper conductor, polyethylene insulation, tinned copper braid shield (95% coverage), polyethylene jacket.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Coax |
|---|---|---|---|---|
| 23 | 7x32 | BC-C - Bare Copper (Compacted) | 0.023 in | 1 |
|
Conductor Count |
1 |
|---|
Insulation
| Material | Nominal Diameter |
|---|---|
| PE - Polyethylene | 0.146 in |
Outer Shield
| Type | Material | Coverage [%] |
|---|---|---|
| Braid | Tinned Copper (TC) | 95% |
Outer Jacket
| Material | Nominal Diameter |
|---|---|
| PE - Polyethylene | 0.22 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance | Nominal Outer Shield DCR | Outer Conductor DCR |
|---|---|---|---|
| 19.1 Ohm/1000ft | 19.1 Ohm/1000ft | 4.5 Ohm/1000ft | 4.5 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Shield |
|---|
| 21 pF/ft |
Inductance
| Nominal Inductance |
|---|
| 0.118 µH/ft |
Impedance
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
Return Loss
| Frequency [MHz] | Minimum Return (RL) |
|---|---|
| 5-216 MHz | 27 dB |
| 217-850 MHz | 21 dB |
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 0.4 dB/100ft |
| 3.6 MHz | 0.6 dB/100ft |
| 10 MHz | 1.2 dB/100ft |
| 71.5 MHz | 3.3 dB/100ft |
| 135 MHz | 4.7 dB/100ft |
| 270 MHz | 6.8 dB/100ft |
| 360 MHz | 8 dB/100ft |
| 540 MHz | 9.9 dB/100ft |
| 720 MHz | 11.6 dB/100ft |
| 750 MHz | 11.9 dB/100ft |
| 1000 MHz | 13.8 dB/100ft |
Delay
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 1.54 ns/ft | 66% |
Voltage
| Non-UL Voltage Rating |
|---|
| 2300 V RMS |
Temperature Range
|
Non-UL Temp Rating |
80°C |
|---|---|
|
Operating Temperature Range |
-55°C To +80°C |
Mechanical Characteristics
|
Bulk Cable Weight |
26 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
45 lbs |
|
Min. Bend Radius/Minor Axis |
2.5 in |
Standards
|
RG Type |
Mini 59 |
|---|---|
|
Series Type |
59 |
Applicable Environmental and Other Programs
|
Environmental Space |
Outdoor - Direct Burial |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
No |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Aerial |
Yes - When supported by messenger wire |
|---|---|
|
Suitability - Burial |
Yes |
|
Suitability - Indoor |
Yes |
|
Suitability - Outdoor |
Yes |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
Related Part Numbers
|
Footnote |
C - CRATE REEL PUT-UP. |
|---|
History
|
Update and Revision |
Revision Number: 0.323 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.323 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 8279 010500 | Black | Reel | 500 ft | 612825358077 |
| 8279 0101000 | Black | Reel | 1,000 ft | 612825355892 |
