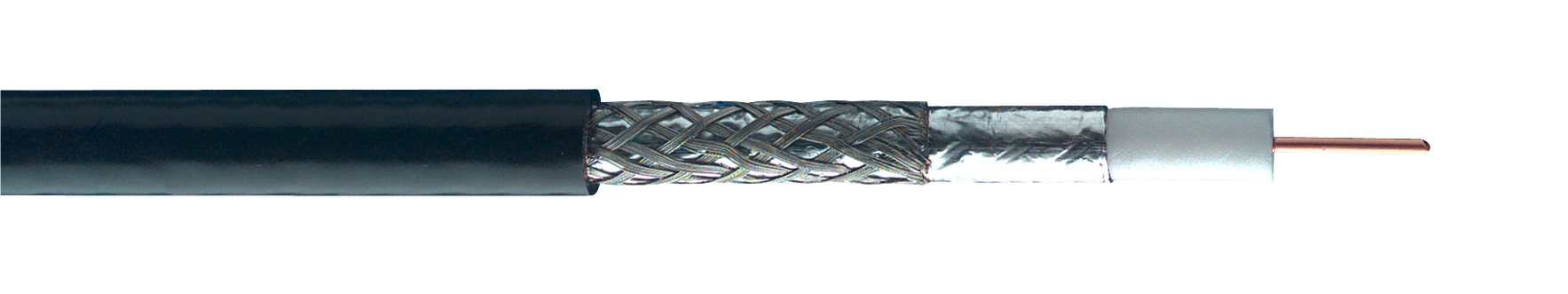

Product Number: 9248
Analog Video, RG6, #18 Solid BC, Foil + 60% TC Braid, PVC Jacket, CM
75Ohm RG-6 18 AWG solid .040" bare copper conductor, gas-injected foam HDPE insulation, Duofoil® + tinned copper braid shield (60% coverage), PVC jacket.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Coax |
|---|---|---|---|---|
| 18 | Solid | BC - Bare Copper | 0.04 in | 1 |
|
Conductor Count |
1 |
|---|
Insulation
| Material | Nominal Diameter |
|---|---|
| PE - Polyethylene (Foam) | 0.18 in |
|
Table Notes |
Gas Injected |
|---|
Outer Shield
| Type | Layer | Material | Material Trade Name | Coverage [%] |
|---|---|---|---|---|
| Tape | 1 | Tri-Laminate (Alum+Poly+Alum) | Duofoil® | 100% |
| Braid | 2 | Tinned Copper (TC) | 60% |
Outer Jacket
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.27 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance | Nominal Outer Shield DCR | Outer Conductor DCR |
|---|---|---|---|
| 6.4 Ohm/1000ft | 6.4 Ohm/1000ft | 5.6 Ohm/1000ft | 5.6 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Shield |
|---|
| 16.2 pF/ft |
Inductance
| Nominal Inductance |
|---|
| 0.106 µH/ft |
Impedance
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
Return Loss
| Frequency [MHz] | Minimum Return (RL) |
|---|---|
| 5-450 MHz | 23 dB |
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 0.3 dB/100ft |
| 5 MHz | 0.54 dB/100ft |
| 10 MHz | 0.7 dB/100ft |
| 50 MHz | 1.5 dB/100ft |
| 100 MHz | 2 dB/100ft |
| 200 MHz | 2.8 dB/100ft |
| 400 MHz | 4 dB/100ft |
| 700 MHz | 5.3 dB/100ft |
| 900 MHz | 6.1 dB/100ft |
| 1000 MHz | 6.5 dB/100ft |
| 1500 MHz | 8.3 dB/100ft |
Delay
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 1.24 ns/ft | 82% |
Voltage
| UL Voltage Rating | Voltage Rating [V] |
|---|---|
| 300 V RMS | 30 V RMS |
|
Electrical Characteristics Notes |
30 V RMS (UL AWM Style 1354); 300 V RMS (CM) |
|---|
Temperature Range
|
UL Temp Rating |
80°C |
|---|---|
|
Operating Temperature Range |
-40°C To +80°C |
Mechanical Characteristics
|
Bulk Cable Weight |
35 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
44 lbs |
|
Min. Bend Radius/Minor Axis |
2.75 in |
Standards
|
NEC/(UL) Compliance |
CM |
|---|---|
|
CEC/C(UL) Compliance |
CM |
|
UL AWM Style Compliance |
AWM 1354 (30 V 80°C) |
|
CPR Euroclass |
Eca |
|
RG Type |
6 |
|
Series Type |
6 |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor/Outdoor |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Indoor |
Yes |
|---|---|
|
Suitability - Outdoor |
Yes |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
UL1685 UL Loading |
|---|---|
|
IEC Flammability |
IEC 60332-1-2 |
|
UL voltage rating |
300 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|---|
|
Plenum Number |
89248 and 82248 |
Related Part Numbers
|
Footnote |
C - CRATE REEL PUT-UP. |
|---|
History
|
Update and Revision |
Revision Number: 0.426 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.426 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC/EAN |
|---|---|---|---|---|
| 9248.00152 | Black | Reel | 152 m | 8719605020321 |
| 9248.00U152 | Black | UnReel | 152 m | 8719605020352 |
| 9248.00305 | Black | Reel | 305 m | 8719605020338 |
| 9248 010500 | Black | Reel | 500 ft | 612825357858 |
