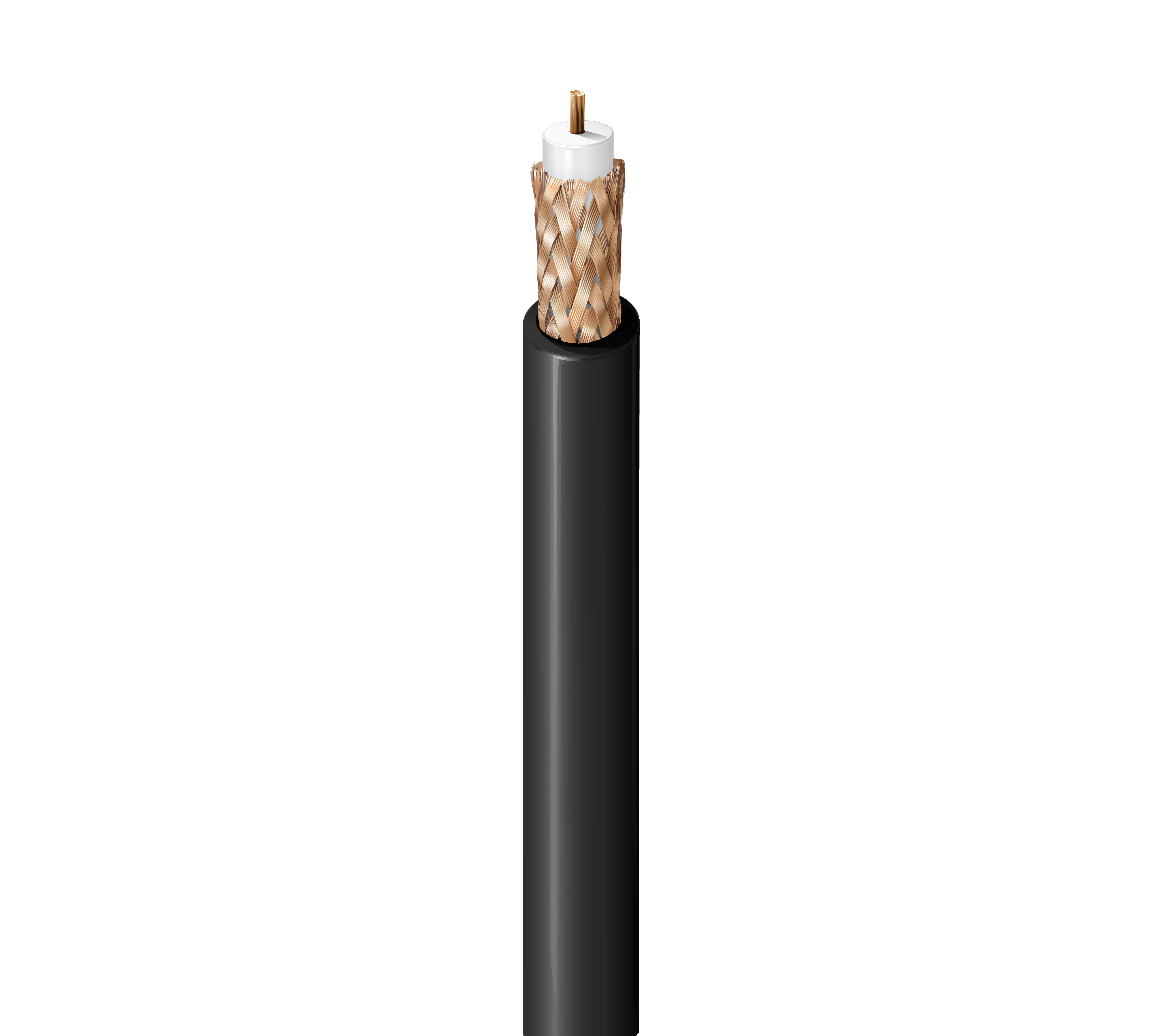

75 Ohm Analog Video Coax, RG-59, 22 AWG Str BC, 95% BC Braid, PVC Jkt, CM
Regions Available: Global
|
Suitable Applications |
Standard analog video |
|---|
|
RG Type |
59 |
|---|
| Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|
| 22 AWG | 7x30 | 0.029 in | BC - Bare Copper |
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene (Foam) | 0.146 in (3.71 mm) | White |
| Outer Shield Type | Material | Coverage |
|---|---|---|
| Braid | Bare Copper (BC) | 95% |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.240 in (6.10 mm) |
|
Overall Cable Diameter (Nominal) |
0.240 in (6.10 mm) |
|---|
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.3 dB/100ft |
| 5 MHz | 0.65 dB/100ft |
| 10 MHz | 0.9 dB/100ft |
| 50 MHz | 2.1 dB/100ft |
| 100 MHz | 3 dB/100ft |
| 200 MHz | 4.5 dB/100ft |
| 400 MHz | 6.6 dB/100ft |
| 700 MHz | 8.9 dB/100ft |
| 900 MHz | 10.1 dB/100ft |
| 1000 MHz | 10.9 dB/100ft |
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 15 Ohm/1000ft | 2.6 Ohm/1000ft (8.5 Ohm/km) | 17.3 pF/ft (56.8 pF/m) | 75 Ohm | 78% |
| UL Voltage Rating |
|---|
| 300 V (CM), 30 V (UL AWM 1354) |
| Operating |
|---|
| -40°C to +80°C |
| Installation Min. |
|---|
| 2.4 in (61 mm) |
|
Max. Pull Tension |
65 lbs (29 kg) |
|---|---|
|
Bulk Cable Weight |
33 lbs/1000ft |
|
Environmental Suitability |
Indoor (Not Riser or Plenum), Indoor, Aerial - Black only, When supported by messenger wire |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
UL1685 UL Loading |
|
CPR Compliance |
CPR Euroclass: Eca; CPR UKCA Class: Eca |
|
NEC / UL Compliance |
CM |
|
AWM Compliance |
AWM 1354 |
|
CEC / C(UL) Compliance |
CM |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Plenum Number |
89259 |
|
Update and Revision |
Revision Number: 0.491 Revision Date: 02-03-2025 |
|---|
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 9259 010100 | Black | Reel | 100 ft | 612825358893 | |
| 9259 010500 | Black | Reel | 500 ft | 612825354987 | C |
| 9259 010U500 | Black | UnReel | 500 ft | 612825357841 | |
| 9259 0101000 | Black | Reel | 1,000 ft | 612825352969 | C |
| 9259 010U1000 | Black | UnReel | 1,000 ft | 612825358770 | |
| 9259 0101200 | Black | Reel | 1,200 ft | 612825352921 | |
| 9259 0101500 | Black | Reel | 1,500 ft | 612825358787 | |
| 9259 0105000 | Black | Reel | 5,000 ft | 612825358909 | C |
