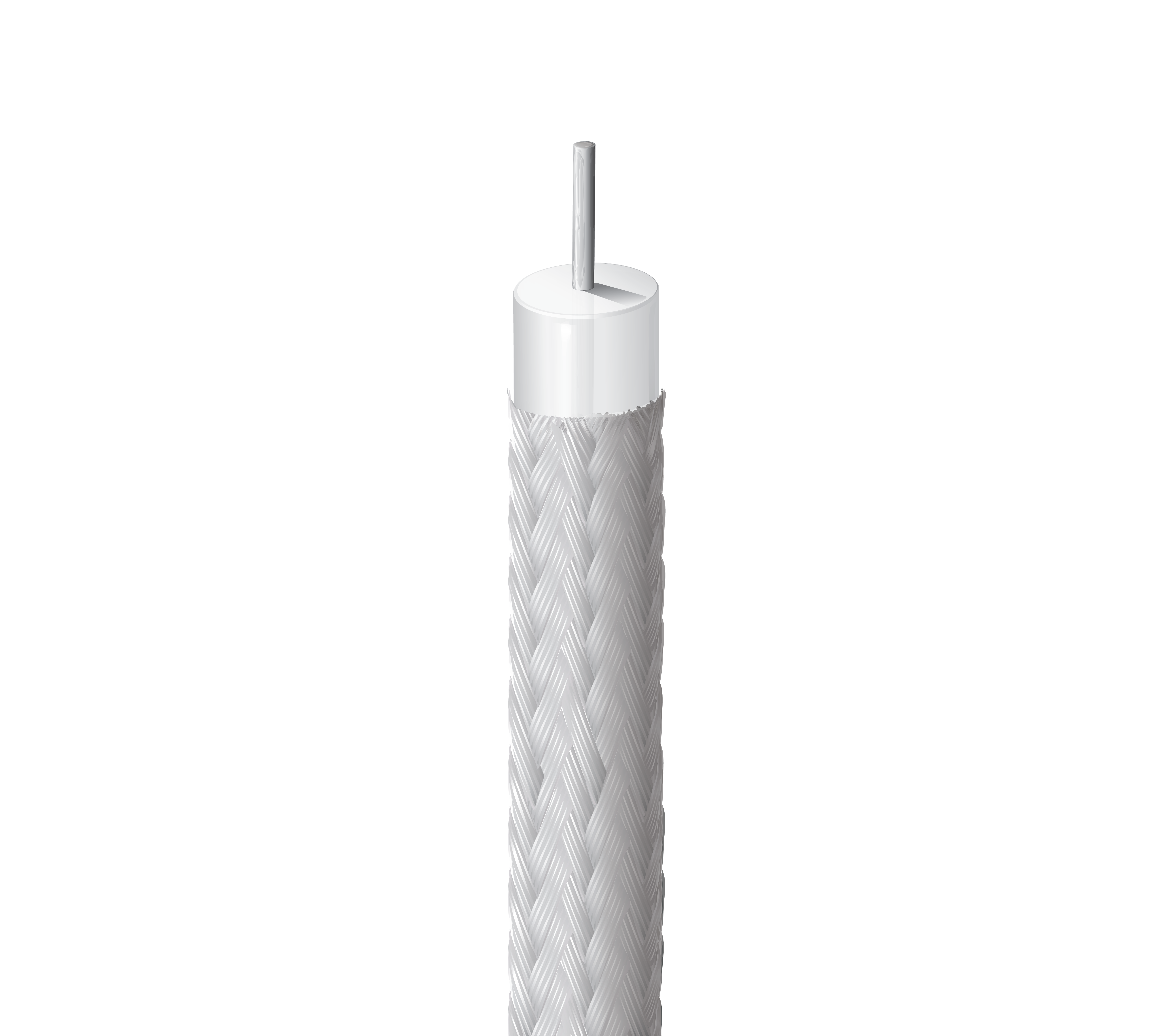

Conformable Coax, 50 Ohm RG-405, 24 AWG Solid SCCS, Copper-Tin Composite Shield, Unjacketed
Regions Available: Global
|
Suitable Applications |
Microwave and other high frequency applications, Interconnect RF equipment, Radar equipment, Military communications |
|---|
|
RG Type |
405 |
|---|
| Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|
| 24 AWG | Solid | 0.020 in | SCCS - Silvered Copper Covered Steel |
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PTFE - Polytetrafluoroethylene | 0.062 in (1.6 mm) | White |
| Layer | Outer Shield Type | Material | Coverage | Notes |
|---|---|---|---|---|
| 1 | Tape | Bare Copper (BC) | 100% | |
| 2 | Braid | Tinned Copper (TC + Tin Filled) | 100% | Diameter: 0.085 inch |
| Material |
|---|
| No Jacket |
|
Overall Cable Diameter (Nominal) |
0.085 in (2.2 mm) |
|---|
| Frequency | Max. VSWR |
|---|---|
| 500 MHz | 1.1:1 |
| 1000 MHz | 1.11:1 |
| 3000 MHz | 1.13:1 |
| 7000 MHz | 1.17:1 |
| 15000 MHz | 1.25:1 |
| 20000 MHz | 1.3:1 |
|
Table Notes |
VSWR limit is a continuous sloping line from 500 MHz to 20 GHz |
|---|
| Frequency | Nom. Attenuation |
|---|---|
| 500 MHz | 15.0 dB/100ft |
| 1000 MHz | 22.5 dB/100ft |
| 3000 MHz | 32.8 dB/100ft |
| 3000 MHz | 41.2 dB/100ft |
| 5000 MHz | 54.9 dB/100ft |
| 7000 MHz | 66.4 dB/100ft |
| 10000 MHz | 81.2 dB/100ft |
| 15000 MHz | 102 dB/100ft |
| 18000 MHz | 113 dB/100ft |
| 20000 MHz | 120 dB/100ft |
| Frequency | Max. Power Rating |
|---|---|
| 500 MHz | 180 W |
| 1,000 MHz | 119 W |
| 2,000 MHz | 79 W |
| 3,000 MHz | 62 W |
| 5,000 MHz | 46 W |
| 7,000 MHz | 37 W |
| 10,000 MHz | 30 W |
| 15,000 MHz | 24 W |
| 18,000 MHz | 21 W |
| 20,000 MHz | 20 W |
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 64.2 Ohm/1000ft | 10.2 Ohm/1000ft (33.5 Ohm/km) | 29.5 pF/ft (96.8 pF/m) | 50 Ohm | 70% |
| UL Voltage Rating | Voltage Rating |
|---|---|
| 30 V (UL AWM Style 10245) | 1500 V |
| UL Temperature | Operating |
|---|---|
| 105°C | -70°C to +200°C |
| Installation Min. |
|---|
| 0.125 in (3.18 mm) |
|
Max. Pull Tension |
26 lbs (12 kg) |
|---|---|
|
Bulk Cable Weight |
12 lbs/1000ft |
|
Environmental Suitability |
Indoor (Not Riser or Plenum), Indoor |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
UL 1581 Horizontal Wire |
|
AWM Compliance |
AWM 10245 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Update and Revision |
Revision Number: 0.482 Revision Date: 02-03-2025 |
|---|
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 1671A TIN50 | Tin | Reel | 50 ft | 612825120285 | |
| 1671A TIN100 | Tin | Reel | 100 ft | 612825120261 | |
| 1671A TIN500 | Tin | Reel | 500 ft | 612825120292 | V |
| 1671A TIN1000 | Tin | Reel | 1,000 ft | 612825120278 | V |
