Product Number: 8240

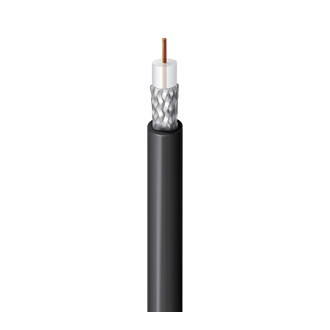

50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Solid BC, 95% TC Braid, PVC Jkt, CMX
50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Solid Bare Copper Conductor , PE Insulation, 95% Tinned Copper Braid Shield, PVC Jacket, CMX
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification) |
|---|
Construction Details
|
RG Type |
58 |
|---|
Conductor
| Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|
| 20 AWG | Solid | 0.033 in | BC - Bare Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene | 0.116 in (2.95 mm) | White |
Outer Shield
| Outer Shield Type | Material | Coverage |
|---|---|---|
| Braid | Tinned Copper (TC) | 95% |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.193 in (4.90 mm) |
|
Overall Cable Diameter (Nominal) |
0.193 in (4.90 mm) |
|---|
Electrical Characteristics
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.3 dB/100ft |
| 10 MHz | 1.1 dB/100ft |
| 50 MHz | 2.5 dB/100ft |
| 100 MHz | 3.8 dB/100ft |
| 200 MHz | 5.6 dB/100ft |
| 400 MHz | 8.4 dB/100ft |
| 700 MHz | 11.7 dB/100ft |
| 900 MHz | 13.7 dB/100ft |
| 1000 MHz | 14.5 dB/100ft |
Power Rating
| Frequency | Max. Power Rating |
|---|---|
| 50 MHz | 530 W |
| 100 MHz | 350 W |
| 400 MHz | 160 W |
| 1,000 MHz | 90 W |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 9.4 Ohm/1000ft | 4.1 Ohm/1000ft (13 Ohm/km) | 28.5 pF/ft (93.5 pF/m) | 52 Ohm | 66% |
Voltage
| UL Voltage Rating | Voltage Rating |
|---|---|
| 300 V (CMX), 30 V (UL AWM 1354) | 1900 V |
|
Electrical Characteristics Notes |
Actual Impedance specification is 51.5 +/- 1.5 ohms. |
|---|
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 60°C (UL AWM 1354) | -40°C to +75°C |
Bend Radius
| Installation Min. |
|---|
| 1.9 in (48 mm) |
|
Max. Pull Tension |
47 lbs (21 kg) |
|---|---|
|
Bulk Cable Weight |
26 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Outdoor - Aerial, Indoor, Outdoor - Black only, Aerial - Black only, When supported by messenger wire |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
UL1581 |
|
CPR Compliance |
CPR Euroclass: Eca; CPR UKCA Class: Eca |
|
NEC / UL Compliance |
CMX |
|
AWM Compliance |
AWM 1354 |
|
CEC / C(UL) Compliance |
CMX |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Plenum Number |
88240, 82240 |
History
|
Update and Revision |
Revision Number: 0.539 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.539 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 8240 010100 | Black | Reel | 100 ft | 612825196761 | |
| 8240 010500 | Black | Reel | 500 ft | 612825196785 | C |
| 8240 010U500 | Black | UnReel | 500 ft | 612825358664 | |
| 8240 0101000 | Black | Reel | 1,000 ft | 612825196778 | C |
