Product Number: 8268

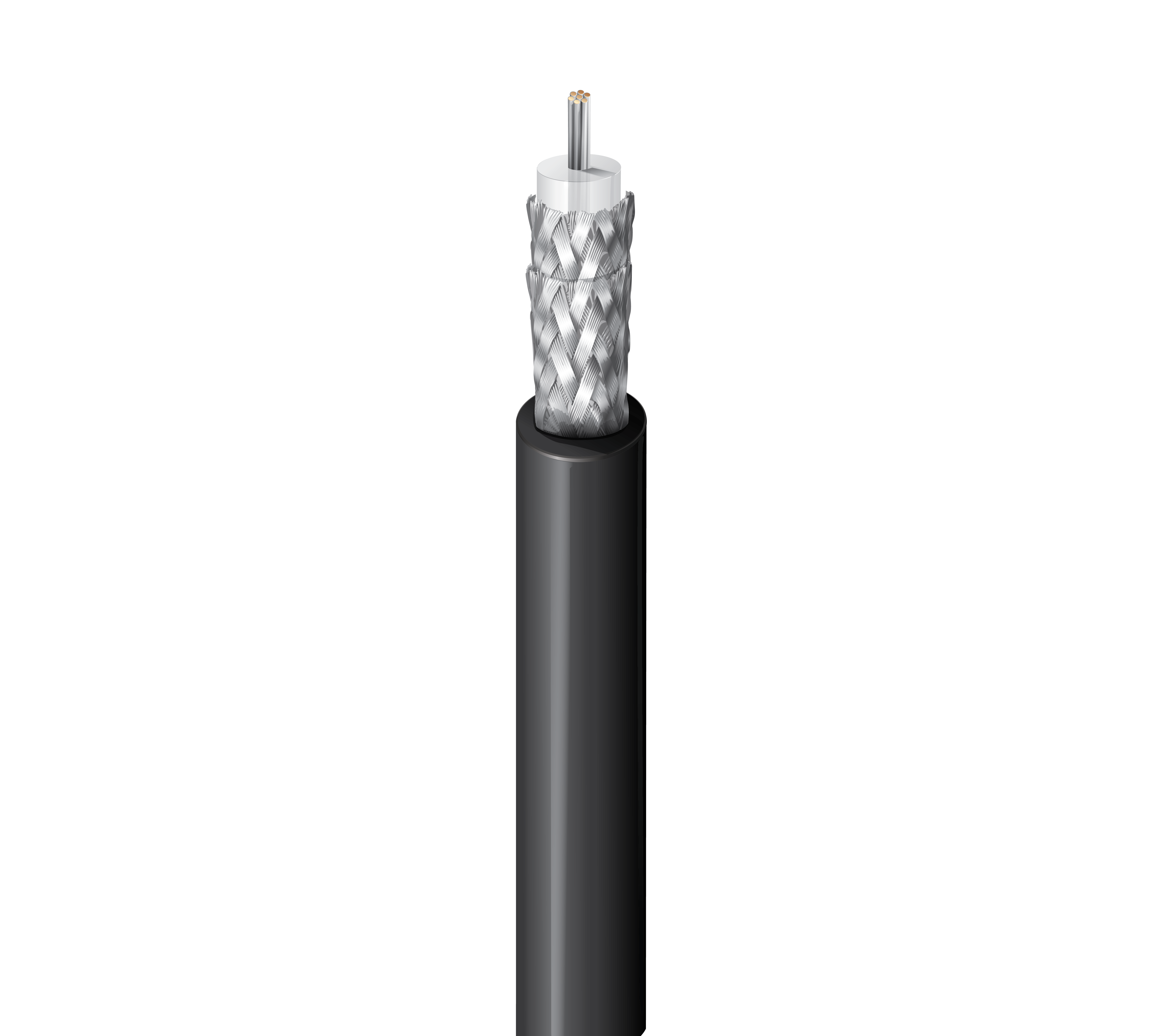

Mil-Spec Coax, 50 Ohm, RG-214, 13 AWG Str SC, Double 95% SC Braid, PVC Jkt, CMX, Commercial Non-QPL

Mil-Spec Coax, 50 Ohm, RG-214, 13 AWG (7x21) Silvered Copper Conductor, PE Insulation, Double 95% Silvered Copper Braid Shield, PVC Jacket (Non-Contaminating), CMX, Commercial, non-QPL

  • Availability:
    Global
  • Global inventory:
    Available
8268
  • 8268
4 of 1

Specifications

Report An Error

Product Overview

Suitable Applications

High frequency microwave and satellite, Point-to-point and point-to-multipoint wireless antenna communication

RG Type

214

Conductor

Size Stranding Nom. Diameter Material
13 AWG 7x21 0.089 in SC - Silvered Copper

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene 0.285 in (7.24 mm) White

Outer Shield

Layer Outer Shield Type Material Coverage
1 Braid Silvered Copper (SC) 95%
2 Braid Silvered Copper (SC) 95%

Outer Jacket

Material Nom. Diameter
PVC - Polyvinyl Chloride (Non-Contaminating) 0.425 in (10.8 mm)

Overall Cable Diameter (Nominal)

0.425 in (10.8 mm)

Attenuation

Frequency Nom. Attenuation
1 MHz 0.17 dB/100ft
10 MHz 0.55 dB/100ft
50 MHz 1.3 dB/100ft
100 MHz 1.9 dB/100ft
200 MHz 2.7 dB/100ft
400 MHz 4.1 dB/100ft
700 MHz 6.5 dB/100ft
900 MHz 7.6 dB/100ft
1000 MHz 8.0 dB/100ft
4000 MHz 20.0 dB/100ft

Power Rating

Frequency Max. Power Rating
50 MHz 1,500 W
100 MHz 907 W
200 MHz 549 W
400 MHz 332 W
700 MHz 221 W
900 MHz 184 W
1,000 MHz 171 W
4,000 MHz 62 W

Electricals

Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
1.7 Ohm/1000ft 0.7 Ohm/1000ft (2.3 Ohm/km) 30.8 pF/ft (101 pF/m) 50 Ohm 66%

Voltage

UL Voltage Rating Voltage Rating
300 V (CMX), 30 V (UL AWM 1354) 3700 V (Mil-Spec)

Temperature

UL Temperature Operating
60°C (UL AWM 1354) -40°C to +80°C

Bend Radius

Installation Min.
4.25 in (108 mm)

Max. Pull Tension

225 lbs (102 kg)

Bulk Cable Weight

131 lbs/1000ft

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor, Aerial - Black only, When supported by messenger wire

Sustainability

CA Prop 65

Flammability / Reaction to Fire

VW-1

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

CMX

AWM Compliance

AWM 1354

CEC / C(UL) Compliance

CMX

Military Compliance

Commercial, non-QPL product (M17/164-00001)

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Update and Revision

Revision Number: 0.487 Revision Date: 02-03-2025

Update and Revision

Revision Number: 0.487 Revision Date: 02-03-2025

Part Numbers

Item # Color Putup Type Length UPC Footnote
8268 010500 Black Reel 500 ft 612825358084 C
8268 0101000 Black Reel 1,000 ft 612825197546 C
