Product Number: 9239

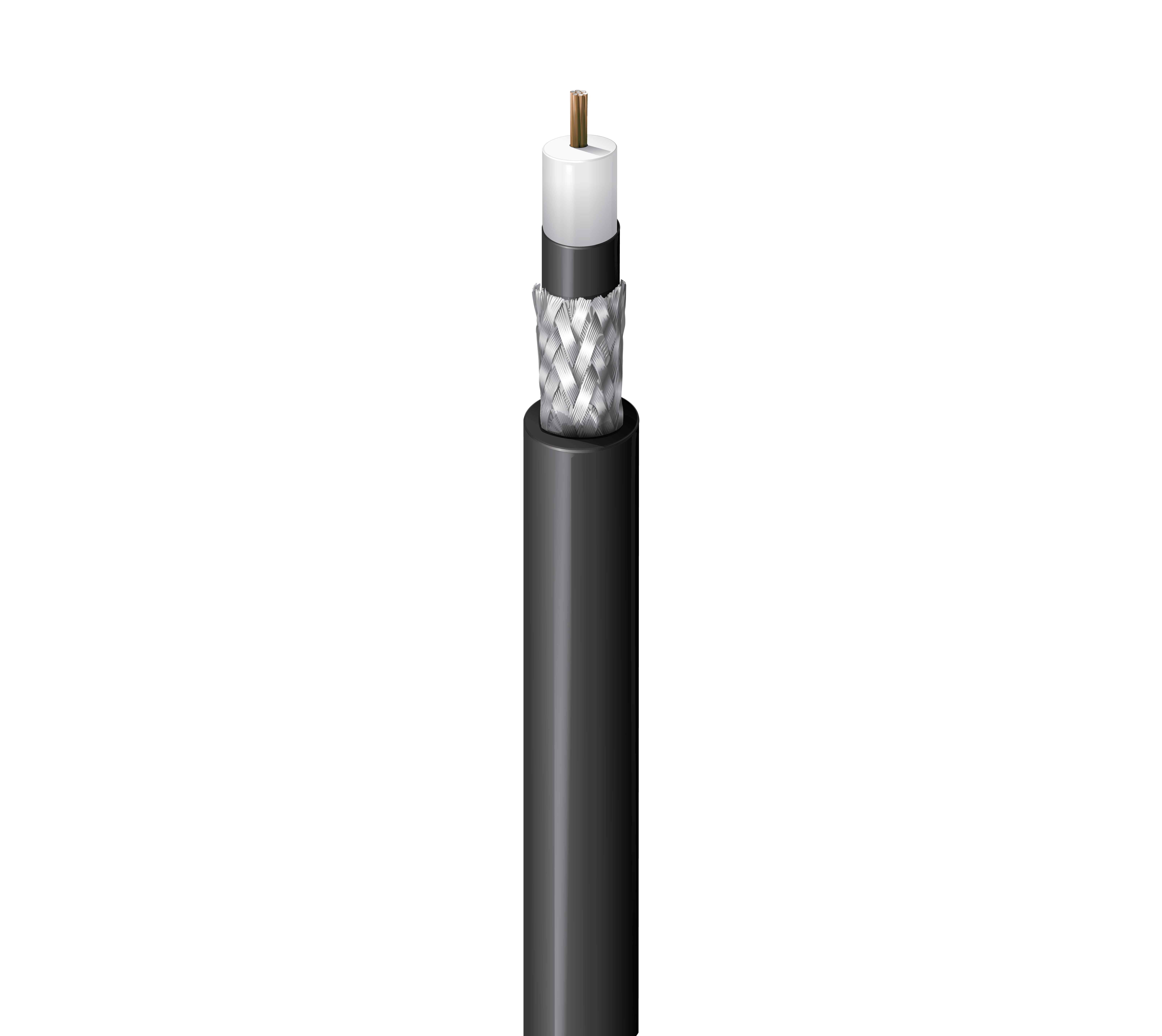

Audio Coax, Low Noise, RG-174, 26 AWG Str BCCS, 90% TC Brd, PVC Jkt
Audio Coax, Low Noise, RG-174, 26 AWG (7x34) Bare Copper Covered Steel Conductor, PE Insulation, PE Conductive Layer, 90% Tinned Copper Braid Shield, PVC Jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Low noise microphone, Analog audio, Instrumentation |
|---|
Construction Details
|
RG Type |
174 |
|---|
Conductor
| No. of Elements | Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|---|
| 1 | 26 AWG | 7x34 | 0.006 in | BCCS - Bare Copper Covered Steel |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene | 0.044 in (1.1 mm) | Clear, Black |
| PVC - Polyvinyl Chloride (Conductive) | 0.056 in (1.4 mm) |
Outer Shield
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Braid | Tinned Copper (TC) | 90% |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.101 in (2.57 mm) |
|
Overall Cable Diameter (Nominal) |
0.101 in (2.57 mm) |
|---|
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Velocity of Prop. |
|---|---|---|---|
| 89.6 Ohm/1000ft | 14 Ohm/1000ft (46 Ohm/km) | 44 pF/ft (140 pF/m) | 57% |
Voltage
| Voltage Rating |
|---|
| 1100 V |
|
Electrical Characteristics Notes |
NBS Low Noise Test (Modified), MIL-DTL-17J Paragraph 4.8.14, 8 mV Peak to Peak Max |
|---|
Mechanical Characteristics
Temperature
| Operating |
|---|
| -40°C To +60°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.01 in (25.7 mm) | 1.01 in (25.7 mm) |
|
Max. Pull Tension |
43 lbs (20 kg) |
|---|---|
|
Bulk Cable Weight |
7 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor (Not Riser or Plenum), Indoor |
|---|---|
|
Flammability / Reaction to Fire |
IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca; CPR UKCA Class: Eca |
|
European Directive Compliance |
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
Product Notes
|
Notes |
Not recommended for RF use. Low noise audio applications. |
|---|
History
|
Update and Revision |
Revision Number: 0.257 Revision Date: 04-04-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.257 Revision Date: 04-04-2024 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC |
|---|---|---|---|---|
| 9239 010100 | Black | Reel | 100 ft | 612825358824 |
| 9239 010500 | Black | Reel | 500 ft | 612825358855 |
| 9239 0101000 | Black | Reel | 1,000 ft | 612825357728 |
