Product Number: 9250

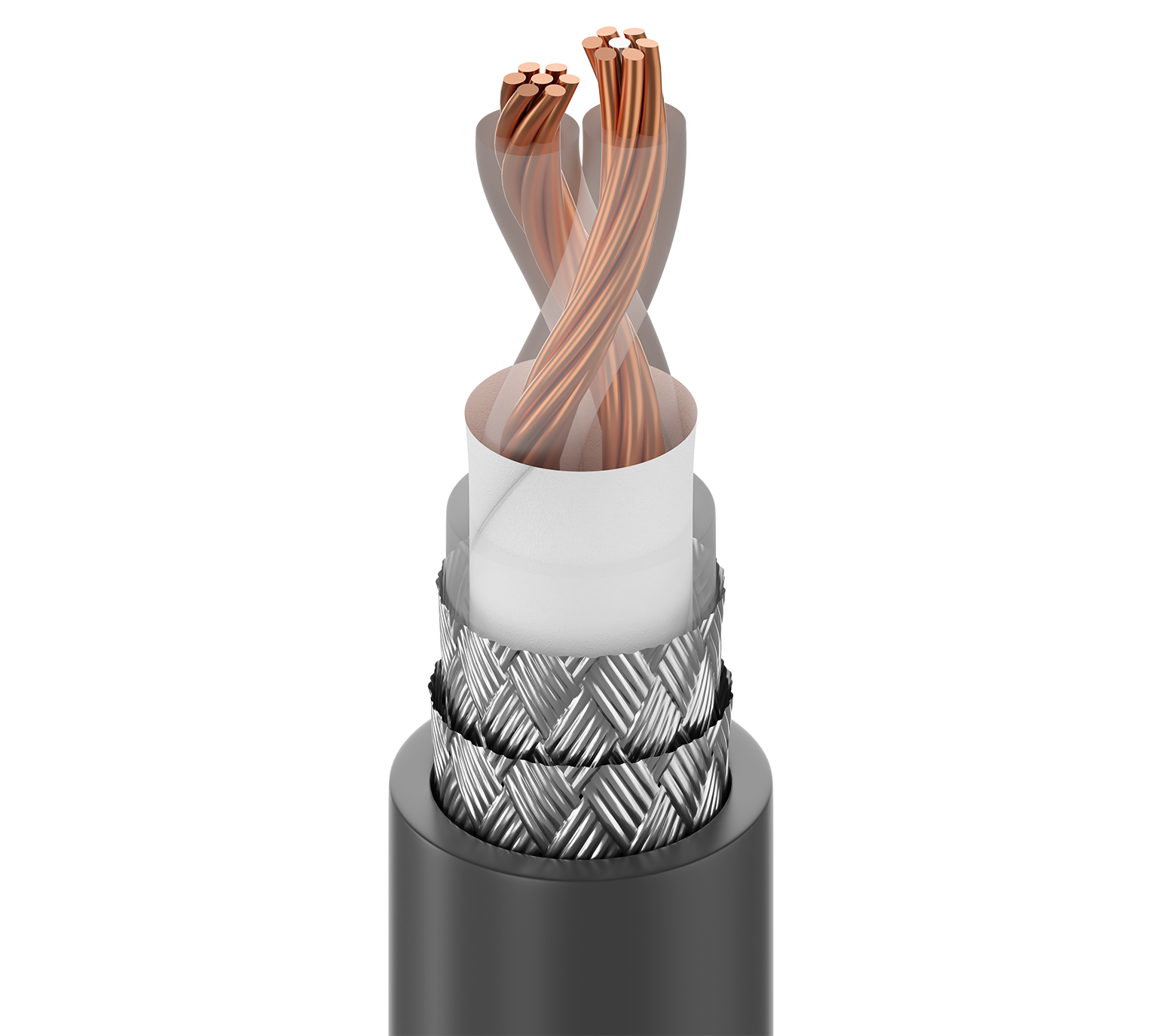

95Ω Twinax RG-22B/U Type, 1Pr #18 Str BC, PE Ins, PE Inner Jkt, Two TC Braids, Non-contaminating PVC Jkt
Twinax 95Ω RG-22B/U Type, 1 Pair, 18 AWG (7x26) bare copper, polyethylene insulation, polyethylene inner jacket, tinned copper double braid shield (95% coverage each), non-contaminating PVC jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Computer, Instrumentation |
|---|
Construction Details
|
RG Type |
22 |
|---|
Conductor
| Size | Stranding | Nom. Diameter | Material | Notes |
|---|---|---|---|---|
| 18 AWG | 7x26 | 0.046 in | BC - Bare Copper | |
| 18 AWG | 7x26 | 0.046 in | BC+TC - Bare Copper + Tinned Copper | Only center strand is Tinned |
Insulation
| Material | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|
| PE - Polyethylene | 0.089 in (2.3 mm) | Clear | PE on both conductors |
| PE - Polyethylene | 0.282 in (7.16 mm) | Clear | PE over pair |
Outer Shield
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Braid | Tinned Copper (TC) | 95% |
| 2 | Braid | Tinned Copper (TC) | 95% |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride (Non-Contaminating) | 0.416 in (10.6 mm) |
|
Overall Cable Diameter (Nominal) |
0.416 in (10.6 mm) |
|---|
Electrical Characteristics
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.30 dB/100ft |
| 10 MHz | 0.90 dB/100ft |
| 20 MHz | 1.30 dB/100ft |
| 50 MHz | 2.10 dB/100ft |
| 100 MHz | 3.00 dB/100ft |
| 200 MHz | 4.50 dB/100ft |
| 400 MHz | 6.30 dB/100ft |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Cond (Mutual) | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 6.6 Ohm/1000ft | 0.9 Ohm/1000ft (3.0 Ohm/km) | 16.0 pF/ft (52.5 pF/m) | 95 Ohm | 66% |
Transfer Impedance
| Frequency | Max. Transfer Impedance |
|---|---|
| 1 MHz | 0.7 mOhm/m |
| 10 MHz | 1.0 mOhm/m |
| 50 MHz | 7.0 mOhm/m |
Voltage
| Voltage Rating |
|---|
| 750 V |
Mechanical Characteristics
Temperature
| Operating |
|---|
| -40°C to +60°C |
Bend Radius
| Installation Min. |
|---|
| 4.5 in (110 mm) |
|
Max. Pull Tension |
237 lbs (108 kg) |
|---|---|
|
Bulk Cable Weight |
113 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Outdoor, Outdoor |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
VW-1 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
History
|
Update and Revision |
Revision Number: 0.494 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.494 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 9250 010500 | Black | Reel | 500 ft | 612825225751 | C |
| 9250 0101000 | Black | Reel | 1,000 ft | 612825225744 | C |
