Product Number: 3093A
ControlBus™, Coax RG-6, #18 Sol BCCS, FFEP Ins, QUAD AL Shld, PVDF Jkt, CMP High Temp 150C

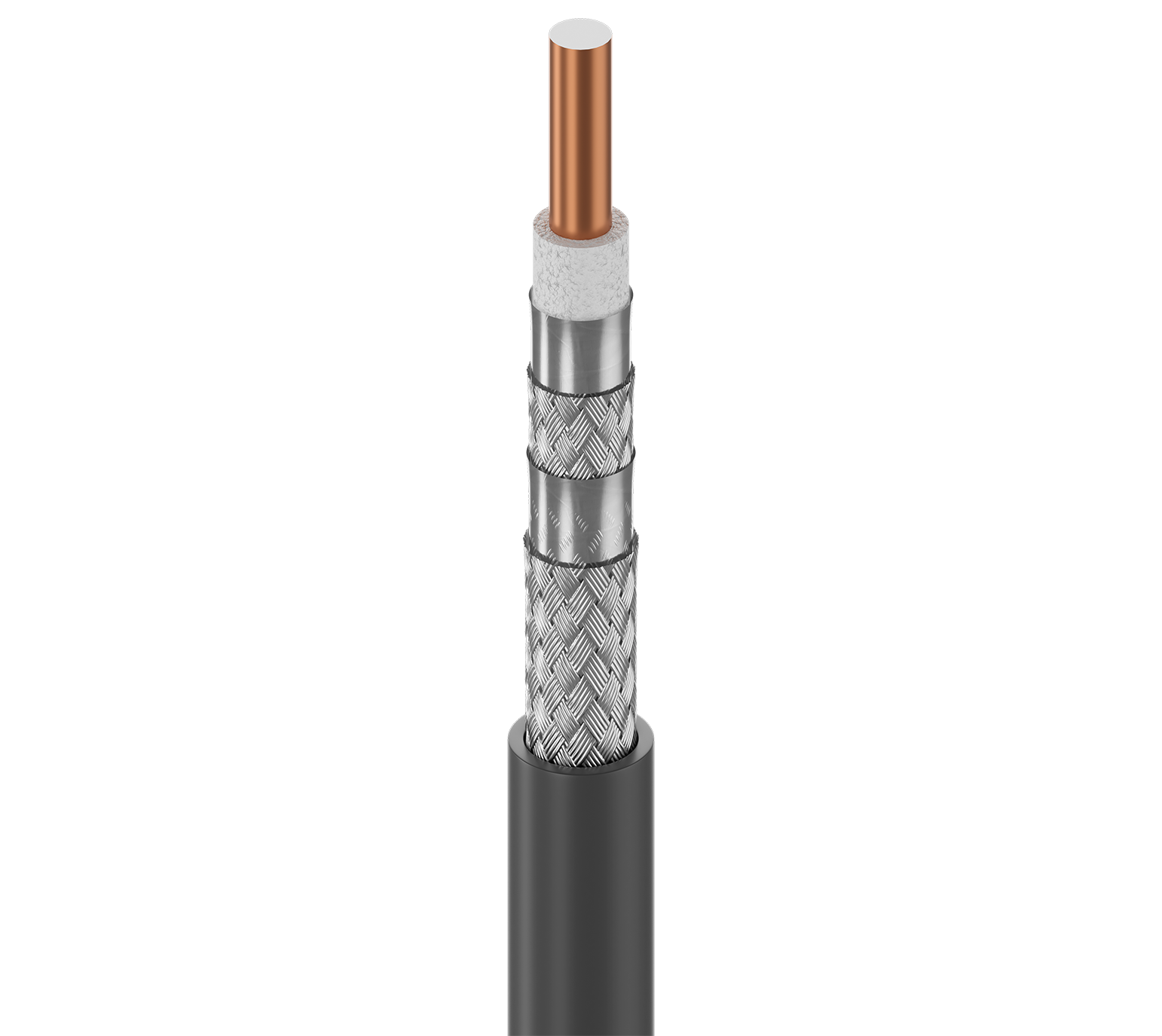

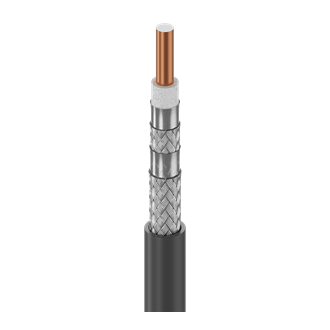

Coax RG-6 18 AWG (Solid) Bare Copper Covered Steel, Foam FEP Insulation, Overall Duobond® II+ Aluminum Braid(60%)+Duofoil®+Aluminum Braid(40%) Shield, PVDF Outer Jacket, CMP High Temp 150C
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Harsh environment, factory automation, ControlNet™, Modbus II, Industrial Coax, Belden ControlNet cables provide maximum signal integrity and run length exceeding the high-speed, time-critical requirements necessary for ControlNet factory floor applications |
|---|
Construction Details
|
RG Type |
6 |
|---|
Conductor
| Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|
| 18 AWG | Solid | 0.040 in | BCCS - Bare Copper Covered Steel |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| FEP - Fluorinated Ethylene Propylene (Foam) | 0.170 in (4.32 mm) | White |
Outer Shield
| Layer | Outer Shield Type | Material | Material Trade Name | Coverage |
|---|---|---|---|---|
| 1 | Tape | Tri-Laminate (Alum+Poly+Alum) | Duobond® II | 100% |
| 2 | Braid | Aluminum | 60% | |
| 3 | Tape | Tri-Laminate (Alum+Poly+Alum) | Duofoil® | 100% |
| 4 | Braid | Aluminum | 40% |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PVDF - Polyvinylidene Fluoride | 0.274 in (6.96 mm) |
|
Overall Cable Diameter (Nominal) |
0.274 in (6.96 mm) |
|---|
Electrical Characteristics
Return Loss
| Frequency | Min. Structural Return Loss |
|---|---|
| 5 - 50 MHz | 23 dB |
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.34 dB/100ft |
| 2 MHz | 0.37 dB/100ft |
| 5 MHz | 0.44 dB/100ft |
| 10 MHz | 0.58 dB/100ft |
| 20 MHz | 0.85 dB/100ft |
| 50 MHz | 1.39 dB/100ft |
| 100 MHz | 1.99 dB/100ft |
| 200 MHz | 2.92 dB/100ft |
| 300 MHz | 3.68 dB/100ft |
| 400 MHz | 4.38 dB/100ft |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 28 Ohm/1000ft | 2.6 Ohm/1000ft (8.5 Ohm/km) | 16.5 pF/ft (54.1 pF/m) | 75 Ohm | 82% |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CMP) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 150°C | -20°C to +150°C |
Bend Radius
| Installation Min. |
|---|
| 2.75 in (69.9 mm) |
|
Max. Pull Tension |
104 lbs (47.2 kg) |
|---|---|
|
Bulk Cable Weight |
36 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor - Plenum, Indoor, Outdoor, Aerial - When supported by messenger wire, Burial |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
NFPA 262 |
|
NEC / UL Compliance |
CMP |
|
CEC / C(UL) Compliance |
CMP |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Non-Plenum Number |
3092A |
Product Notes
|
Notes |
Blue available as standard in 1000-ft put-up only. Suitable for Outdoor and Direct Burial applications. |
|---|
History
|
Update and Revision |
Revision Number: 0.501 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.501 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 3093A 0101000 | Black | Reel | 1,000 ft | 612825141464 | C |
| 3093A 0102500 | Black | Reel | 2,500 ft | 612825141488 | C N |
| 3093A 0105000 | Black | Reel | 5,000 ft | 612825141495 | C Z |
