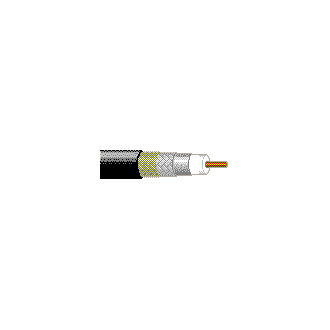

CATV Video, RG6, 18 AWG BCCS, Foil + Braid, Waterblocked, PVC Jacket
| AWG | Stranding | Material | Nominal Diameter | No. of Coax |
|---|---|---|---|---|
| 18 | Solid | BCCS - Bare Copper Covered Steel | 0.04 in | 1 |
|
Conductor Count |
1 |
|---|
| Material | Nominal Diameter |
|---|---|
| PE - Polyethylene (Foam) | 0.18 in |
|
Table Notes |
Gas Injected |
|---|
| Type | Layer | Material | Material Trade Name | Coverage [%] |
|---|---|---|---|---|
| Tape | 1 | Tri-Laminate (Alum+Poly+Alum) | Duofoil® | 100% |
| Braid | 2 | Aluminum | 90% |
|
Table Notes |
Coreguard® |
|---|
| Material | Nominal Diameter |
|---|---|
| PE - Polyethylene | 0.27 in |
| Nominal Conductor DCR | Nominal Outer Shield DCR | Outer Conductor DCR |
|---|---|---|
| 28 Ohm/1000ft | 5 Ohm/1000ft | 5 Ohm/1000ft |
| Nom. Capacitance Conductor to Shield |
|---|
| 16.2 pF/ft |
| Nominal Inductance |
|---|
| 0.097 µH/ft |
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
| Frequency [MHz] | Min. Structural Return Loss (SRL) |
|---|---|
| 5 - 1000 MHz | 20 dB |
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 1.2 ns/ft | 83% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) |
|---|---|
| 5 MHz | 0.58 dB/100ft |
| 55 MHz | 1.60 dB/100ft |
| 211 MHz | 3.05 dB/100ft |
| 270 MHz | 3.37 dB/100ft |
| 300 MHz | 3.55 dB/100ft |
| 350 MHz | 3.85 dB/100ft |
| 400 MHz | 4.15 dB/100ft |
| 450 MHz | 4.40 dB/100ft |
| 550 MHz | 4.90 dB/100ft |
| 750 MHz | 5.65 dB/100ft |
| 870 MHz | 6.11 dB/100ft |
| 1000 MHz | 6.55 dB/100ft |
| Non-UL Voltage Rating |
|---|
| 350 V RMS |
|
UL Temp Rating |
80°C |
|---|---|
|
Operating Temperature Range |
-55°C To +80°C |
|
Bulk Cable Weight |
24 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
162 lbs |
|
Min. Bend Radius/Minor Axis |
3 in |
|
RG Type |
6 |
|---|---|
|
Series Type |
6 |
|
Environmental Space |
Outdoor - Water Exposure |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/96/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
No |
|
MII Order #39 (China RoHS) |
Yes |
|
Suitability - Burial |
Yes |
|---|---|
|
Suitability - Indoor |
Yes |
|
Suitability - Outdoor |
Yes |
|
Plenum (Y/N) |
No |
|---|
|
Update and Revision |
Revision Number: 0.390 Revision Date: 04-29-2024 |
|---|
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 1532A 0101000 | Black | Reel | 1,000 ft | 612825316558 |
| 1532A 0031000 | Orange | Reel | 1,000 ft | 612825117278 |
