Product Number: 82444
Electronic, 4 C #22 Str TC, FEP Ins, PVC Jkt, CMP

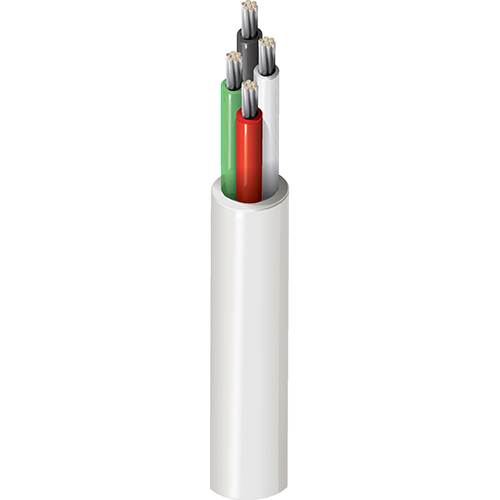

Electronic Cable, 4 Conductor 22AWG (7x30) Tinned Copper, FEP Insulation, PVC Outer Jacket, CMP
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
indoor plenum applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 4 | 22 | 7x30 | TC - Tinned Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| FEP - Fluorinated Ethylene Propylene | 0.0065 in (0.17 mm) | 0.042 in (1.1 mm) | Black, White, Red, Green |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.134 in (3.40 mm) |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Max. Current |
|---|---|---|
| 15 Ohm/1000ft | 18 pF/ft (59 pF/m) | 3.3 Amps per Conductor at 25ºC (10°C Temperature Rise) |
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| Operating |
|---|
| 0°C To +60°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.34 in (34.0 mm) | 1.34 in (34.0 mm) |
|
Max. Pull Tension |
36 lbs (16 kg) |
|---|---|
|
Bulk Cable Weight |
15 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Outdoor |
|---|---|
|
Flammability / Reaction to Fire |
NFPA 262, FT6 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 800, CMP |
|
CEC / C(UL) Compliance |
CMP |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Non-Plenum Number |
8444 |
History
|
Update and Revision |
Revision Number: 0.492 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.492 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 82444 877U500 | Natural | UnReel | 500 ft | 612825197102 | |
| 82444 8771000 | Natural | Reel | 1,000 ft | 612825197119 | C |
| 82444 877U1000 | Natural | UnReel | 1,000 ft | 612825197096 |
