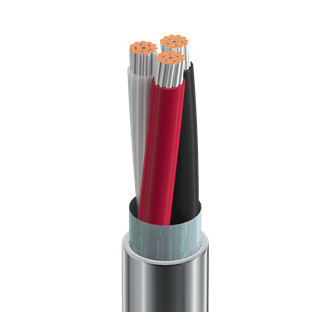

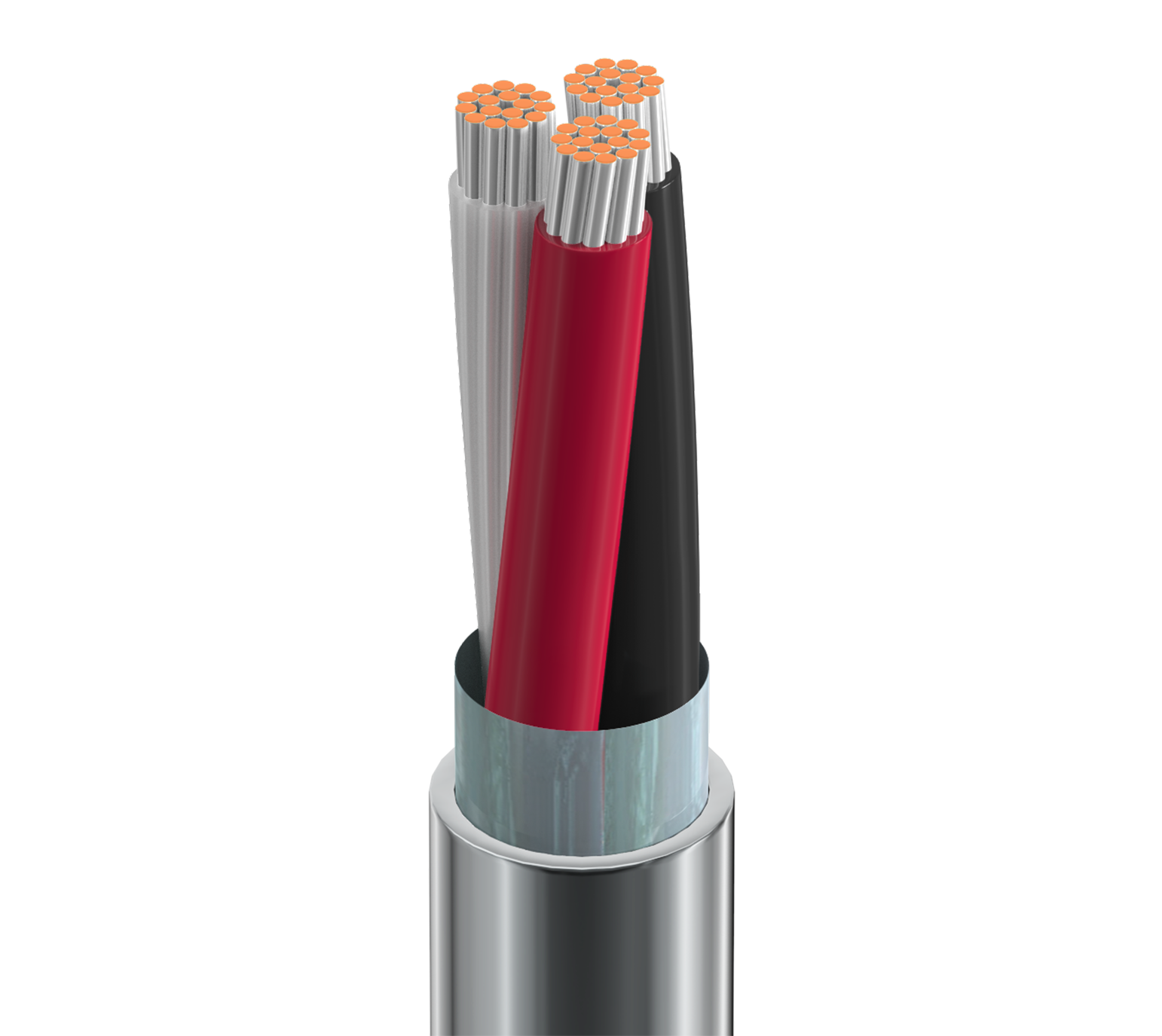

Electronic, 3 C #18 Str TC, PE Ins, OS, PVC Jkt, CM
Regions Available: Global
|
Suitable Applications |
low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring |
|---|
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 3 | 18 AWG | 16x30 | TC - Tinned Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PE - Polyethylene | 0.018 in (0.46 mm) | 0.082 in (2.1 mm) | Black, Red, Clear |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 20 AWG (7x28) TC |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.033 in (0.84 mm) | 0.246 in (6.25 mm) |
|
Overall Cable Diameter (Nominal) |
0.246 in (6.25 mm) |
|---|
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Max. Current |
|---|---|---|---|---|---|
| Conductor(s) | 7.06 Ohm/1000ft | 24 pF/ft (79 pF/m) | 48 pF/ft (160 pF/m) | 69 Ohm | 14 Amps per Conductor at 30ºC |
| UL Voltage Rating |
|---|
| 300 V (CM), 300 V (UL AWM 2093) |
| UL Temperature | Operating |
|---|---|
| 60°C | -20°C to +60°C |
| Stationary Min. | Installation Min. |
|---|---|
| 0.16 in (4.1 mm) | 2.5 in (64 mm) |
|
Max. Pull Tension |
75 lbs (34 kg) |
|---|---|
|
Bulk Cable Weight |
36 lbs/1000ft |
|
Environmental Suitability |
Indoor |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
UL 1685 UL loading , IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca; CPR UKCA Class: Eca |
|
NEC / UL Compliance |
Article 800, CM |
|
AWM Compliance |
AWM 2093 |
|
CEC / C(UL) Compliance |
CM |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
Plenum Number |
88770 |
|
Update and Revision |
Revision Number: 0.531 Revision Date: 03-04-2023 |
|---|
| Item # | Color | Putup Type | Length | UPC/EAN | Footnote |
|---|---|---|---|---|---|
| 8770.023048 | Black | Reel | 3,048 m | 8719605019226 | |
| 8770.00U152 | Chrome | UnReel | 152 m | 8719605019172 | |
| 8770.01152 | Chrome | Reel | 152 m | 8719605019196 | |
| 8770.00U305 | Chrome | UnReel | 305 m | 8719605019189 | |
| 8770.01305 | Chrome | Reel | 305 m | 8719605019219 | |
| 8770 060500 | Chrome | Reel | 500 ft | 612825215653 | C |
| 8770 060U500 | Chrome | UnReel | 500 ft | 612825215592 | |
| 8770 0601000 | Chrome | Reel | 1,000 ft | 612825215608 | C |
| 8770 060U1000 | Chrome | UnReel | 1,000 ft | 612825215585 | |
| 8770.013048 | Chrome | Reel | 3,048 m | 8719605019202 | |
| 8770 0605000 | Chrome | Reel | 5,000 ft | 612825215660 | |
| 8770 06010000 | Chrome | Reel | 10,000 ft | 612825215615 | C Y |
| 8770 06012000 | Chrome | Reel | 12,000 ft | 612825215646 | C Y |
