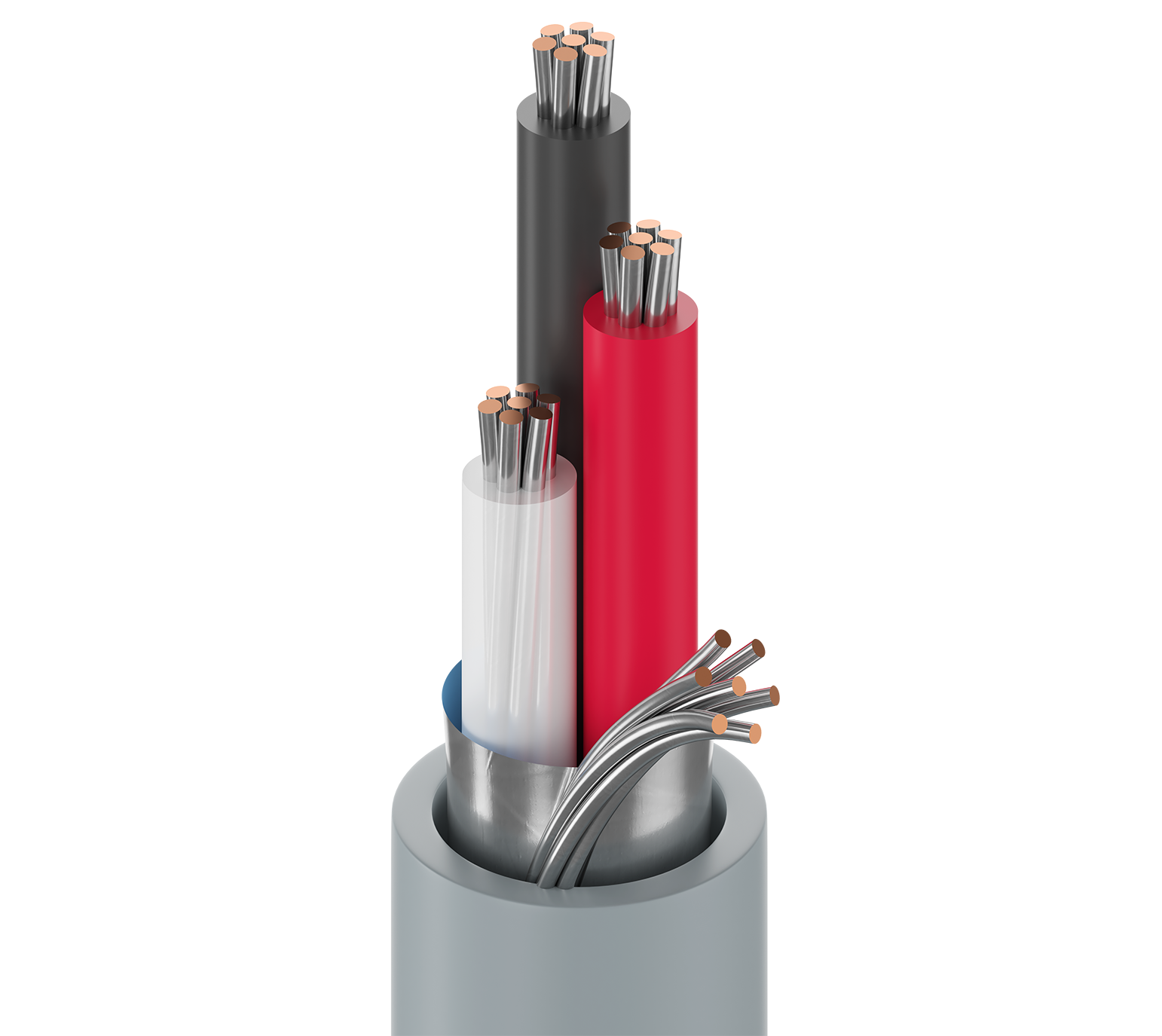

Electronic, 3 C #20 Str TC, PE Ins, OS, PVC Jkt, CM
|
Suitable Applications |
low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring |
|---|
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 3 | 20 AWG | 7x28 | TC - Tinned Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PE - Polyethylene | 0.017 in (0.43 mm) | 0.070 in (1.8 mm) | Black, Red, Clear |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 20 AWG (7x28) TC |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.033 in (0.84 mm) | 0.218 in (5.54 mm) |
|
Overall Cable Diameter (Nominal) |
0.218 in (5.54 mm) |
|---|
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|---|
| Conductor(s) | 11.1 Ohm/1000ft | 27 pF/ft (89 pF/m) | 51 pF/ft (170 pF/m) | 8 Amps per Conductor at 30ºC |
| UL Voltage Rating |
|---|
| 300 V (CM), 300 V (UL AWM 2093) |
| UL Temperature | Operating |
|---|---|
| 60°C | -20°C to +60°C |
| Stationary Min. | Installation Min. |
|---|---|
| 2.2 in (56 mm) | 2.2 in (56 mm) |
|
Max. Pull Tension |
50.4 lbs (22.9 kg) |
|---|---|
|
Bulk Cable Weight |
28 lbs/1000ft |
|
Environmental Suitability |
Indoor |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
UL 1685 UL loading , IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca; CPR UKCA Class: Eca |
|
NEC / UL Compliance |
Article 800, CM |
|
AWM Compliance |
AWM 2093 |
|
CEC / C(UL) Compliance |
CM |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Update and Revision |
Revision Number: 0.536 Revision Date: 04-19-2023 |
|---|
| Item # | Color | Putup Type | Length | UPC/EAN | Footnote |
|---|---|---|---|---|---|
| 8772.00152 | Chrome | Reel | 152 m | 8719605019370 | |
| 8772.00U152 | Chrome | UnReel | 152 m | 8719605019394 | |
| 8772.00305 | Chrome | Reel | 305 m | 8719605019387 | |
| 8772.00U305 | Chrome | UnReel | 305 m | 8719605019400 | |
| 8772 060500 | Chrome | Reel | 500 ft | 612825215806 | C |
| 8772 060U500 | Chrome | UnReel | 500 ft | 612825215783 | |
| 8772 0601000 | Chrome | Reel | 1,000 ft | 612825215790 | C |
| 8772 060U1000 | Chrome | UnReel | 1,000 ft | 612825215776 | |
| 8772 0605000 | Chrome | Reel | 5,000 ft | 612825215813 |
