Product Number: 1346F
DeviceBus® for ODVA DeviceNet™, 2 Pr #22+24 Str TC, PVC+PO Ins, IS+OA TC Brd, TPE Jkt, CMG

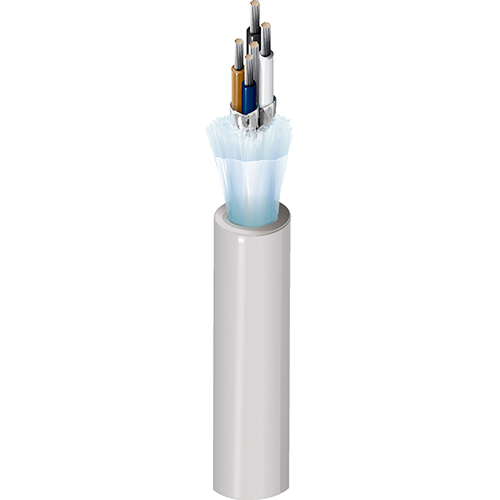

DeviceBus® for ODVA DeviceNet™, 2 Pair 22+24AWG (154x44+105x44) Tinned Copper, PVC+PO Insulation, Individual Beldfoil® & OA Tinned Copper Braid(65%) Shield, TPE Outer Jacket, CMG
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 22 | 154x44 | TC - Tinned Copper | 1 |
| 24 | 105x44 | TC - Tinned Copper | 1 |
|
Conductor Count |
4 |
|---|
Insulation
| Element | Material | Nominal Wall Thickness |
|---|---|---|
| 22 AWG | PVC - Polyvinyl Chloride | 0.016 in |
| 24 AWG | PE - Polyethylene (Foam) | 0.026 in |
Color Chart
| Number | Color |
|---|---|
| 22 AWG Pair | Red & Black |
| 24 AWG Pair | Blue & White |
Inner Shield
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 22 | 26x36 |
Outer Shield
| Type | Material | Coverage [%] |
|---|---|---|
| Braid | Tinned Copper (TC) | 65% |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| TPE - Thermoplastic Elastomer | 0.275 in | 0.036 in |
Electrical Characteristics
Conductor DCR
| Element | Max. Conductor DCR | Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|---|---|
| 22 AWG | 17.5 Ohm/1000ft | 3.2 Ohm/1000ft | |
| 24 AWG | 28 Ohm/100m | 28.0 Ohm/1000ft |
Capacitance
| Element | Nom. Capacitance Conductor to Conductor |
|---|---|
| 24 AWG Pair(s) | |
| 12 pF/ft |
Impedance
| Nominal Characteristic Impedance | Nominal Characteristic Impedance Description |
|---|---|
| 100 Ohm | 24 AWG Pair |
| 120 Ohm |
Delay
| Max. Delay | Max. Delay Description | Nominal Velocity of Propagation (VP) [%] | Nominal Velocity of Propagation (VP) Description |
|---|---|---|---|
| 1.36 ns/ft | 24 AWG Pair | 24 AWG Pair | |
| 75% |
High Frequency
| Element | Frequency [MHz] |
|---|---|
| 24 AWG Pair Only | 0.125 MHz |
| 0.5 MHz | |
| 1 MHz |
Current
| Max. Recommended Current [A] |
|---|
| 5 Amps per Conductor at 25ºC |
| 5 Amps per Conductor at 25ºC (22 AWG) |
Voltage
| UL Description | UL Voltage Rating |
|---|---|
| CL2, CMG | 300 V RMS |
Temperature Range
|
UL Temp Rating |
75°C |
|---|---|
|
Operating Temperature Range |
-30°C to +75°C |
Mechanical Characteristics
|
Oil Resistance |
Yes |
|---|---|
|
Bulk Cable Weight |
41 lbs/1000ft |
|
Max. Pull Tension |
65 lbs |
|
Min. Bend Radius/Minor Axis |
2.75 in |
Standards
|
NEC Articles |
Article 800 |
|---|---|
|
NEC/(UL) Compliance |
CL2, CMG |
|
CSA AWM Compliance |
AWM I/II A |
|
CPR Euroclass |
Eca |
|
Other Specification |
ODVA Class 2 Thin |
Applicable Environmental and Other Programs
|
EU Directive 2000/53/EC (ELV) |
Yes |
|---|---|
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Oil Resistance |
Yes |
|---|---|
|
Suitability - Outdoor |
Yes |
|
Suitability - Sunlight Resistance |
Yes |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
UL1685 FT4 Loading |
|---|---|
|
IEC Flammability |
IEC 60332-1-2 |
|
UL voltage rating |
300 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
Related Part Numbers
|
Footnote |
C - CRATE REEL PUT-UP. |
|---|
Product Notes
|
Notes |
Hi-Flex. Thin. Meter marks on jacket to aid users in installation. |
|---|
History
|
Update and Revision |
Revision Number: 0.562 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.562 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 1346F T5U1000 | Gray T5U | Reel | 1,000 ft | 612825112334 |
