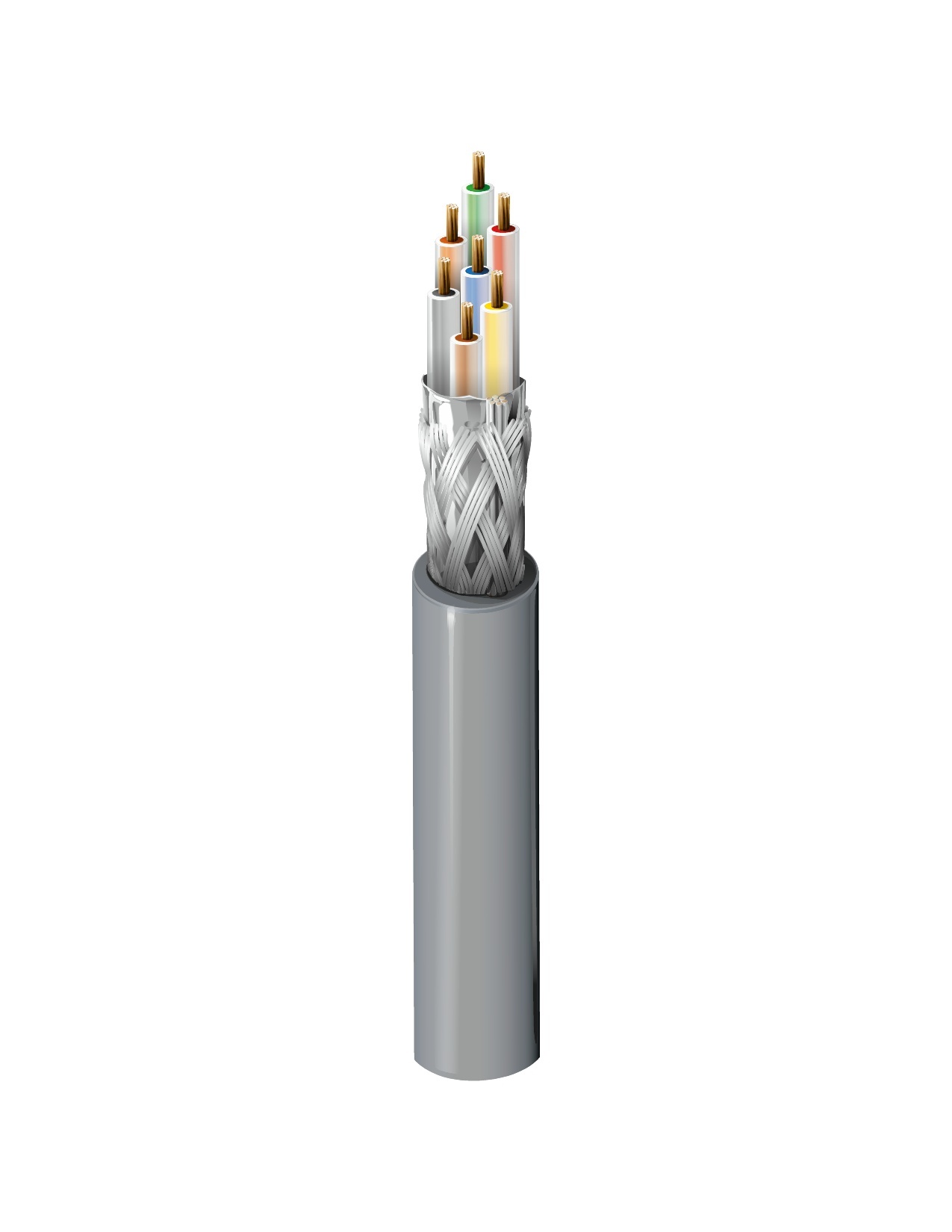

Product Number: 1540A
RISC 6000, #28-7c, BC, PO, O/A Foil+Braid, PVC Jkt, CL2
RISC 6000 IBM XX, YY Cable, 28 AWG stranded (7x36) bare copper conductors, patented step polyolefin insulation, twisted pairs, overall Beldfoil® shielded + tinned copper braid shield (65% coverage), tinned copper drain wire, PVC jacket (see RISC color code chart below).
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
For RISC Systems where energy efficiency is Key |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 7 | 28 AWG | 7x36 | BC - Bare Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PP/PE - Polypropylene/Polyethylene | 0.01 in (0.25 mm) | 0.035 in mm | IBM – RISC 6000 |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 28 AWG (7x36) TC |
| Braid | Tinned Copper (TC) | 67% |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.019 in (0.48 mm) | 0.19 in |
|
Overall Cable Diameter (Nominal) |
0.19 in |
|---|
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|
| 66.6 Ohm/1000ft | 12.5 pF/ft (41.0 pF/m) | 23 pF/ft (75 pF/m) | 0.9 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| UL Temperature |
|---|
| 60°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.9 in (48 mm) | 1.9 in |
|
Max. Pull Tension |
14.7 lbs (6.67 kg) |
|---|---|
|
Bulk Cable Weight |
19 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor |
|---|---|
|
Flammability / Reaction to Fire |
UL1685 UL Loading |
|
NEC / UL Compliance |
Article 725, CL2 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Other Standard Compliance(s) |
IBM Part No. XX, YY Cable, RJ-45 compatible |
Product Notes
|
Notes |
Patent # 5,220,130. Single conductors are dual insulated. Outer layer of insulation must be stripped off before attaching modular connectors. |
|---|
History
|
Update and Revision |
Revision Number: 0.341 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.341 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | UPC | Footnote |
|---|---|---|---|
| 1540A 0081000 | Gray | 612825117643 | C |
