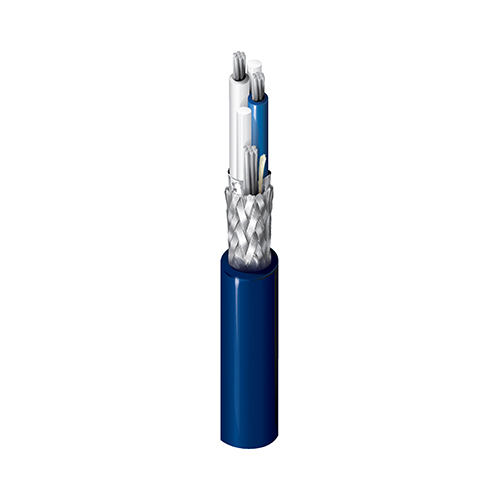

3072Z

Blue Hose®, 1 Pr #18 Str TC, PP Ins, OS+TC Brd, LSZH-TS Jkt, 600V TC-ER-ST1

...
Blue Hose® for Data Highway Plus, 1 Pair 18AWG (7x26) Tinned Copper, Polypropylene Insulation, Overall Beldfoil®+Tinned Copper Braid(55%) Shield, LSZH Thermoset Outer Jacket, 600V TC-ER-ST1

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

shipboard, harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 18 AWG 7x26 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Color Code Notes
Pair(s) PP - Polypropylene 0.025 in (0.64 mm) Blue & White Flame Retardant
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 20 AWG (7x28) TC
Braid Tinned Copper (TC) 55%
Outer Jacket
Material Nom. Thickness Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset) 0.100 in (2.54 mm) 0.480 in (12.2 mm)

Overall Cable Diameter (Nominal)

0.480 in (12.2 mm)

Electrical Characteristics
Electricals
Element Nom. Characteristic Impedence Nom. Velocity of Prop.
Pair(s) 78 Ohm 65%
High Frequency (Nominal/Typical)
Element
Pair(s)
Voltage
UL Voltage Rating Voltage Rating
600 V (TC-ER-ST1), 300 V (CMG-ST1, PLTC-ST1) 150 V (ITC-ST1)
Mechanical Characteristics
Temperature
UL Temperature
75°C Dry
Standards and Compliance

Environmental Suitability

Burial

CPR Compliance

CPR Euroclass: Fca

NEC / UL Compliance

Article 336, Article 725, Article 727, Article 800, CMG-ST1, TC-ER-ST1, PLTC-ST1, ITC-ST1

CEC / C(UL) Compliance

CMG-ST1

History

Update and Revision

Revision Number: 0.167 Revision Date: 02-03-2025

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC Footnote
3072Z 0105000 Black 612825140122 C
