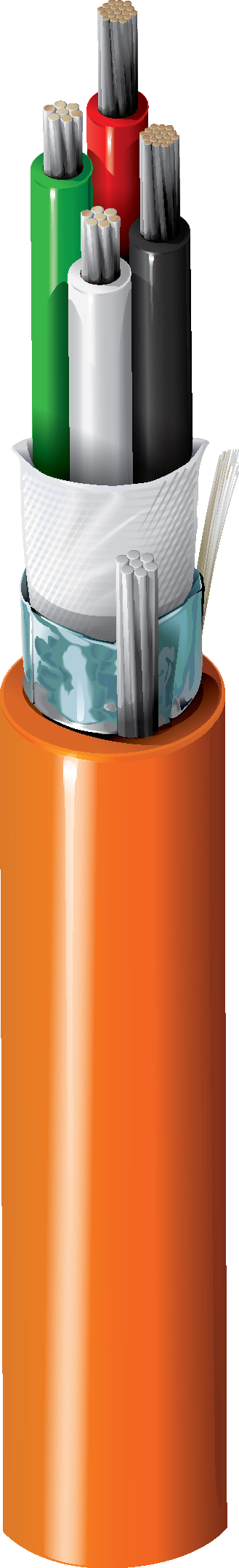

Product Number: 3125A
DeviceBus® for Square D/Seriplex®, 2 Pr #16+22 Str TC, PVC+PO Ins, OS (Data), PVC Jkt, CM
DeviceBus® for Square D/Seriplex®, 2 Pair 16+22AWG (26x30+7x30) Tinned Copper, PVC+PO Insulation, Overall Beldfoil® (Data Pair Only) Shield, PVC Outer Jacket, CM
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 16 | 26x30 | TC - Tinned Copper | 1 |
| 22 | 7x30 | TC - Tinned Copper | 1 |
|
Conductor Count |
4 |
|---|
Insulation
| Element | Material | Nominal Wall Thickness |
|---|---|---|
| 16 AWG | PE - Polyethylene (Foam) | 0.025 in |
| 22 AWG | PE - Polyethylene (Foam) | 0.0405 in |
Color Chart
| Number | Color |
|---|---|
| 1 (16 AWG) | Black and Red |
| 2 (22 AWG) | Green and White |
Outer Shield
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 22 | 7x30 |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness | Separator Material |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.368 in | 0.039 in | PO - Polyolefin (Foam) Tape |
Construction and Dimensions
Cabling
| Lay Direction |
|---|
| Left Hand |
Electrical Characteristics
Conductor DCR
| Element | Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|---|
| 16 AWG | 4.49 Ohm/1000ft | 16 Ohm/1000ft |
| 22 AWG | 18.1 Ohm/1000ft |
Capacitance
| Element | Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|---|
| 22 AWG | 16 pF/ft | 28 pF/ft |
| 16 AWG | 9 pF/ft | 16 pF/ft |
| 22 AWG | ||
| 16 AWG |
Impedance
| Nominal Characteristic Impedance |
|---|
| 120 Ohm |
Delay
| Nominal Velocity of Propagation (VP) [%] | Nominal Velocity of Propagation (VP) Description |
|---|---|
| 78% | 16 AWG |
| 78% | 22 AWG |
Voltage
| UL Description | UL Voltage Rating |
|---|---|
| CM | 300 V RMS |
| CL2 |
Temperature Range
|
UL Temp Rating |
75°C |
|---|---|
|
Operating Temperature Range |
-20°C to +75°C |
Mechanical Characteristics
|
Bulk Cable Weight |
55.6 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
85 lbs |
Standards
|
NEC Articles |
Article 725, Article 800 |
|---|---|
|
NEC/(UL) Compliance |
CL2, CM |
|
CEC/C(UL) Compliance |
CM |
Applicable Environmental and Other Programs
|
EU Directive 2000/53/EC (ELV) |
Yes |
|---|---|
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
UL1685 UL Loading |
|---|---|
|
UL voltage rating |
300 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
Related Part Numbers
|
Footnote |
C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN. |
|---|
History
|
Update and Revision |
Revision Number: 0.382 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.382 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 3125A 0031000 | Orange | Reel | 1,000 ft | 612825142027 |
| 3125A 0035000 | Orange | Reel | 5,000 ft | 612825142034 |
