773105T

RS-485, 1 Pr, 22AWG, Str TC, PE Ins, OS+TC Brd, LSZH Jkt, BBA, LSZH Jkt, CMG, PLTC, Sun Res

...

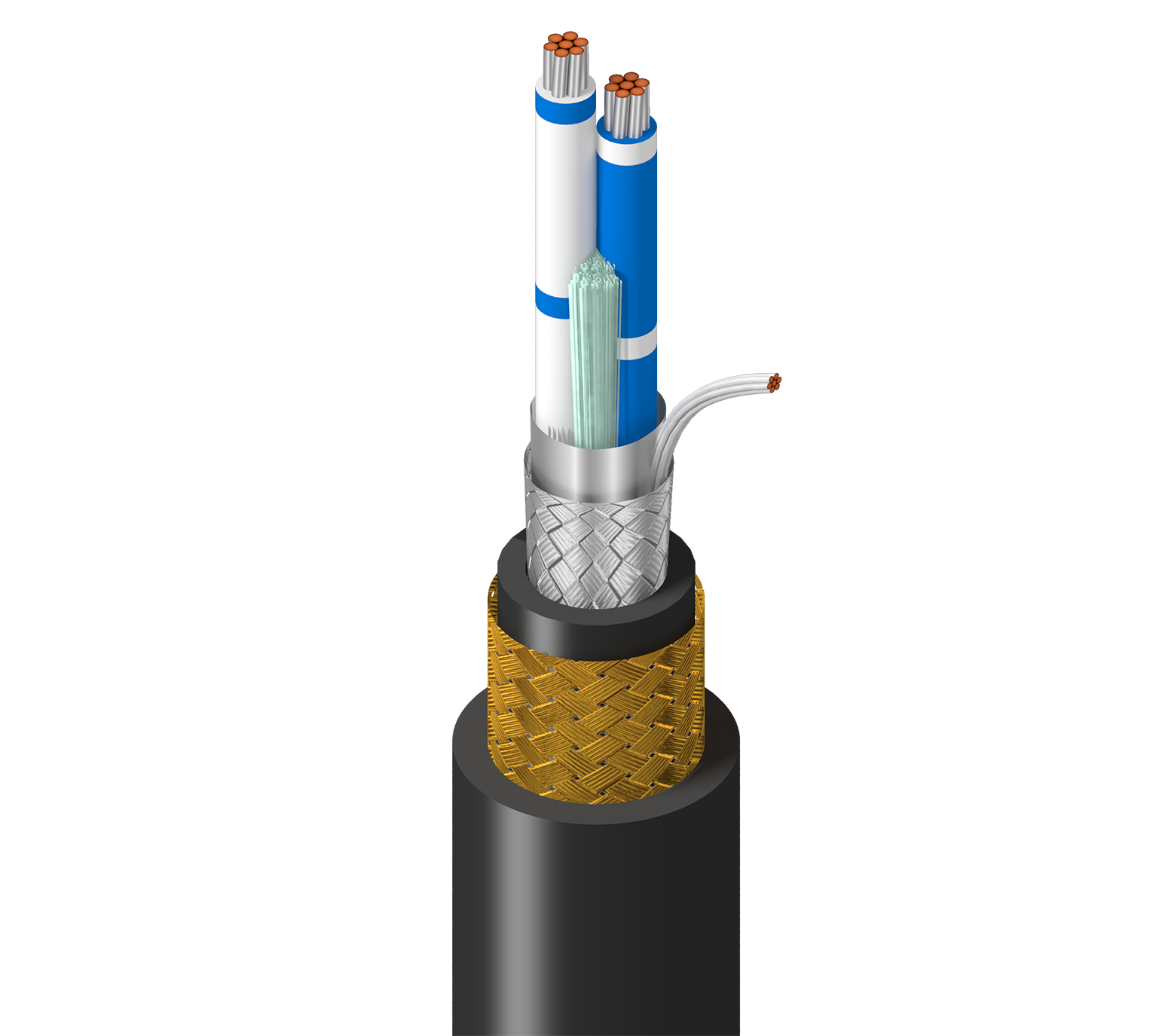

RS-485, 120 Ohm, 1 pair 22AWG (7x30) tinned copper Datalene® insulaton, Overall Foil + 65% Tinned Copper Braid, LSZH Jacket, Bronze Braid Armor, LSZH jacket, CMG, PLTC, SUN RES

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

shipboard, harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 22 AWG 7x30 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Color Code Notes
Pair(s) PE - Polyethylene (Foam) 0.029 in (0.74 mm) White/Blue Stripe & Blue/White Stripe HDPE
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7x30) TC
Braid Tinned Copper (TC) 65%
Inner Jacket
Material Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.450 in (11.4 mm)
Armor
Armor Type & Material
BBA - Bronze Braid Armor
Outer Jacket
Material Nom. Thickness Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.050 in (1.3 mm) 0.605 in (15.4 mm)

Overall Cable Diameter (Nominal)

0.605 in (15.4 mm)

Electrical Characteristics
Electricals
Element Max. Conductor DCR Nom. Characteristic Impedence Nom. Velocity of Prop.
Pair(s) 14.7 Ohm/km (4.48 Ohm/1000ft) 120 Ohm 78%
High Frequency (Nominal/Typical)
Element Frequency [MHz] Nom. Insertion Loss (Attenuation)
Pair(s) 1 0.5 dB/100ft
High Frequency
Max./Min. Input Impedance (unFitted)
120 +/- 12
Voltage
UL Voltage Rating
300 V (CMG, PLTC)
Mechanical Characteristics
Temperature
UL Temperature Operating
60°C -20°C to +60°C

Max. Pull Tension

60 lbs (27 kg)

Bulk Cable Weight

223 lbs/1000ft (332 kg/km)

Standards and Compliance

Environmental Suitability

Outdoor, Sunlight Resistance

Flammability / Reaction to Fire

UL 1685 UL Loading

NEC / UL Compliance

Article 725, Article 800, CMG, PLTC

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.310 Revision Date: 04-30-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC
773105T 0105000 Black 612825188780
