8134

RS232/485 Low Cap, #28-4pr, FPE, O/A Foil+Braid, PVC Jkt, CL2, 120Ω

...

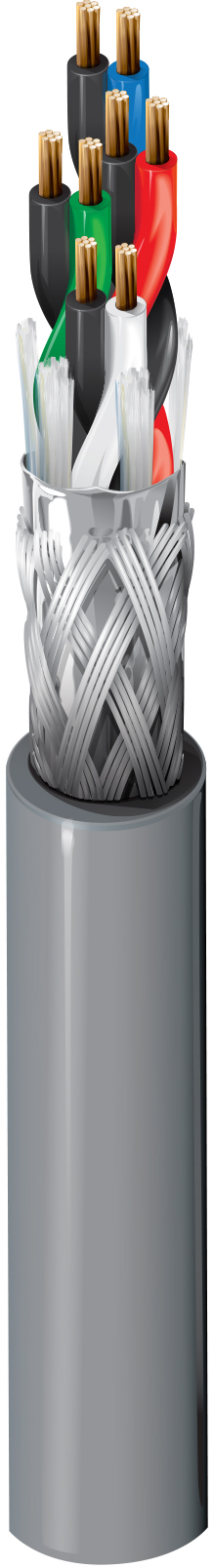

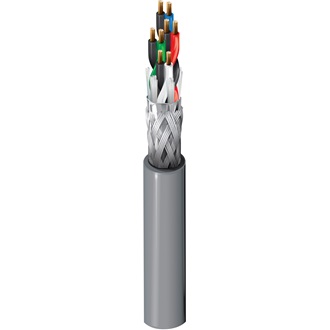

Computer EIA RS-232/485 Cable, 4-Pair, 28 AWG stranded (7x36) tinned copper conductors, Datalene® insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), 28 AWG stranded tinned copper drain wire, PVC jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

RS-232 extended distance applications; RS-485 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 4 28 AWG 7x36 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Color Code
Pair(s) PE - Polyethylene (Foam) 0.0145 in (0.368 mm) White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 28 AWG (7x36) TC
Braid Tinned Copper (TC) 65%
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.035 in (0.89 mm) 0.286 in (7.26 mm)

Overall Cable Diameter (Nominal)

0.286 in (7.26 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 65 Ohm/1000ft (210 Ohm/km) 11 pF/ft (36 pF/m) 20 pF/ft (66 pF/m) 120 Ohm 78% 0.9 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
30 V (UL AWM 2919)
Mechanical Characteristics
Temperature
UL Temperature Operating
80°C (UL AWM 2919) -30°C to +80°C

Bulk Cable Weight

36 lbs/1000ft (54 kg/km)

Standards and Compliance

Flammability / Reaction to Fire

UL1685 UL Loading, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

CL2

AWM Compliance

AWM 2919

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Product Notes

Notes

Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.

History

Update and Revision

Revision Number: 0.335 Revision Date: 12-22-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
8134 060100 Chrome Reel 100 ft 612825195313
8134 060500 Chrome Reel 500 ft 612825195337 C
8134 0601000 Chrome Reel 1,000 ft 612825195320 C
