Product Number: 8165
RS232/422 Low Cap, #24-5pr, FPO, Indiv.& O/A Foils+Braid, PVC Jkt, CM, 100Ω

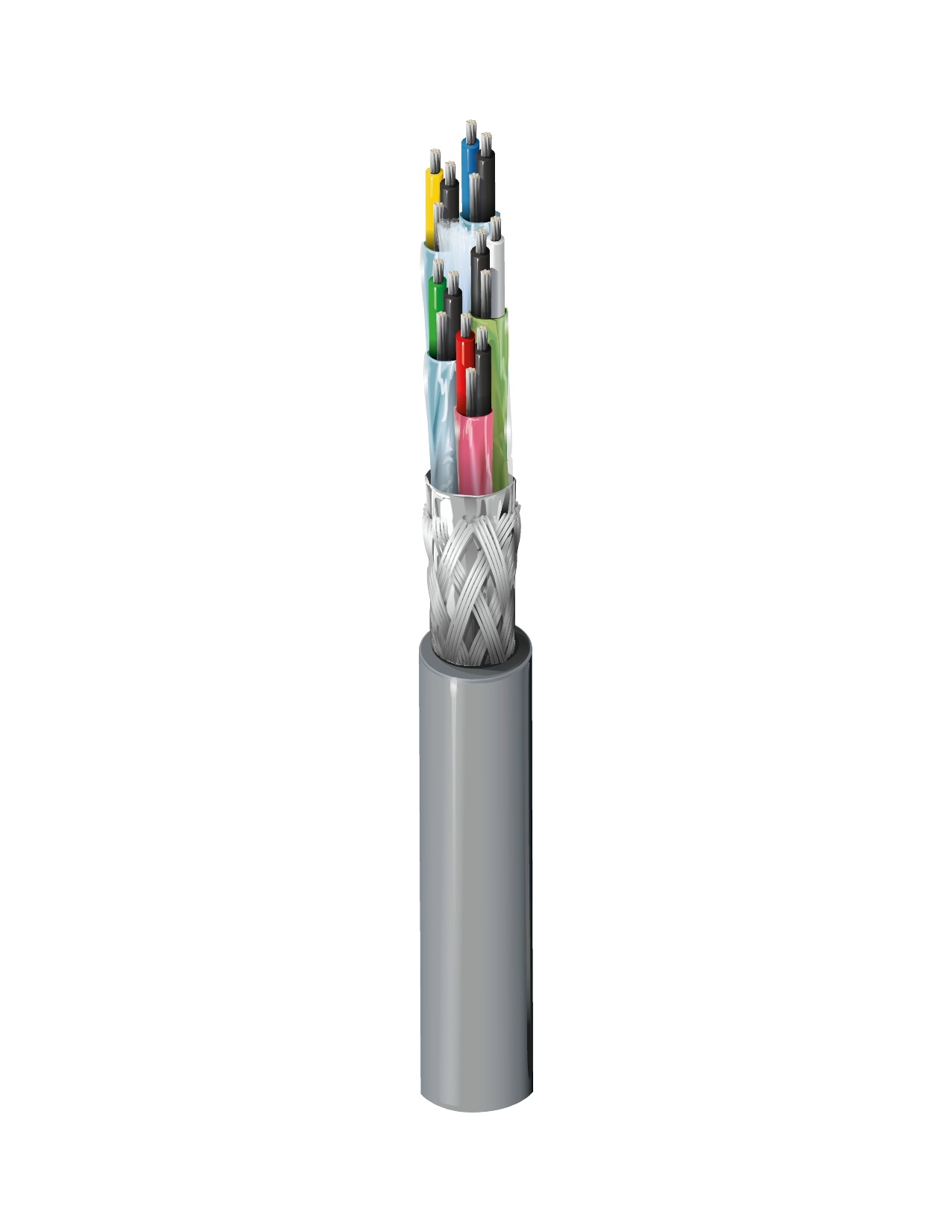

Computer EIA RS-232/422, Digital Audio Cable, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, 5 twisted pairs individually Beldfoil® shielded + overall 100% Beldfoil® + tinned copper braid shield (65% coverage), drain wire, PVC jacket.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
RS-232 Extended Distance & RS-422 Applications; Computer Communications; Low Voltage Analog signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Digital Audio; Panel Wiring |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 5 | 24 AWG | 7x32 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Color Code |
|---|---|---|---|
| Pair(s) | PE - Polyethylene (Foam) | 0.019 in (0.48 mm) | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow |
Inner Shield
| Element | Shield Type | Material | Coverage | Drainwire Type | Notes |
|---|---|---|---|---|---|
| Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC | each pair, Z-Fold® Foil-in |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 65% |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.048 in (1.2 mm) | 0.413 in (10.5 mm) |
|
Overall Cable Diameter (Nominal) |
0.413 in (10.5 mm) |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Pair(s) | 24 Ohm/1000ft (79 Ohm/km) | 12.5 pF/ft (41.0 pF/m) | 22 pF/ft (72 pF/m) | 100 Ohm | 78% | 1.6 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CM), 300 V (UL AWM 2493) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 60°C (UL AWM 2493) | -40°C to +60°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 4.1 in (100 mm) | 4.1 in (100 mm) |
|
Max. Pull Tension |
132 lbs (59.9 kg) |
|---|---|
|
Bulk Cable Weight |
81 lbs/1000ft (120 kg/km) |
Standards and Compliance
|
Environmental Suitability |
Indoor |
|---|---|
|
Flammability / Reaction to Fire |
UL1685 UL Loading, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca; CPR UKCA Class: Eca |
|
NEC / UL Compliance |
Article 800, CM |
|
AWM Compliance |
AWM 2493 |
|
CEC / C(UL) Compliance |
CM |
|
European Directive Compliance |
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
Product Notes
|
Notes |
Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight. |
|---|
History
|
Update and Revision |
Revision Number: 0.342 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.342 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC/EAN | Footnote |
|---|---|---|---|---|---|
| 8165.0030 | Chrome | Reel | 30 m | 8719605018007 | |
| 8165 060100 | Chrome | Reel | 100 ft | 612825195665 | |
| 8165.00152 | Chrome | Reel | 152 m | 8719605017994 | |
| 8165.00305 | Chrome | Reel | 305 m | 8719605018014 |
