8208

Electronic, 2 C #18 Str TC, EPDM Ins, OA TC Brd, PVC Jkt

...

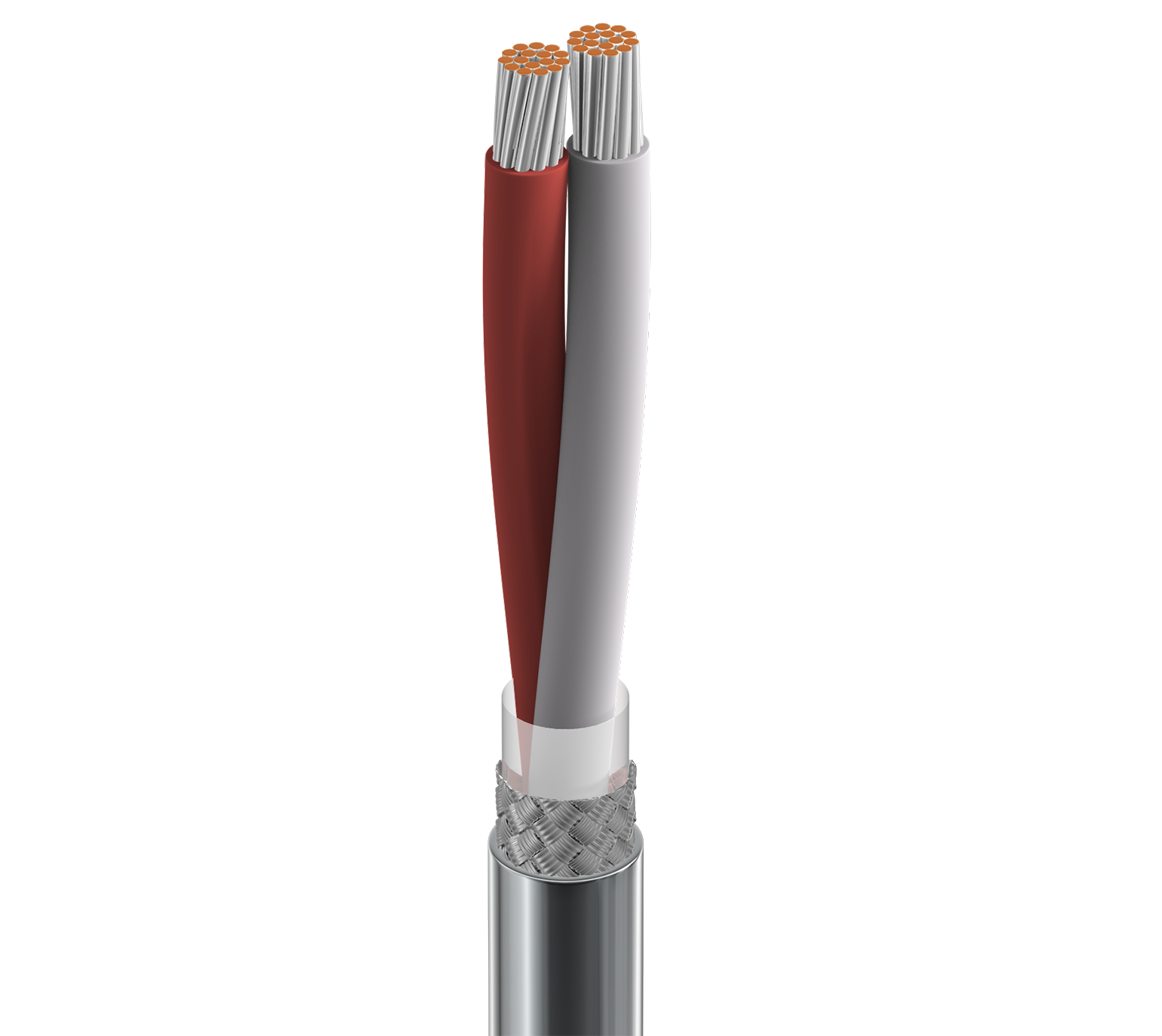

Electronic, 2 Conductor 18AWG (16x30) Tinned Copper, EPDM Insulation, Overall Tinned Copper Braid(73%) Shield, PVC Outer Jacket
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 18 AWG 16x30 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) EPDM - Ethylene Propylene Diene Monomer 0.022 in (0.56 mm) 0.091 in (2.3 mm) Red, White
Outer Shield
Shield Type Material Coverage
Braid Tinned Copper (TC) 73%
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter
Polyester Tape PVC - Polyvinyl Chloride 0.025 in (0.64 mm) 0.257 in (6.53 mm)

Overall Cable Diameter (Nominal)

0.257 in (6.53 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Max. Current
Conductor(s) 6.5 Ohm/1000ft 46 pF/ft (150 pF/m) 77 pF/ft (250 pF/m) 44 Ohm 5.2 Amps per Conductor at 25ºC
Voltage
Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
75°C -20°C to +80°C
Bend Radius
Stationary Min. Installation Min.
2.57 in (65.3 mm) 2.57 in (65.3 mm)

Max. Pull Tension

41.6 lbs (18.9 kg)

Bulk Cable Weight

40 lbs/1000ft

Standards and Compliance

Sustainability

CA Prop 65

CPR Compliance

CPR Euroclass: Eca

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Product Notes

Notes

No surface printing.

History

Update and Revision

Revision Number: 0.524 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
8208 060100 Chrome Reel 100 ft 612825196051
8208 060500 Chrome Reel 500 ft 612825196075 C
8208 060U500 Chrome UnReel 500 ft 612825196044
8208 0601000 Chrome Reel 1,000 ft 612825196068 C
8208 060U1000 Chrome UnReel 1,000 ft 612825196037
8208 0605000 Chrome Reel 5,000 ft 612825196082 C Z
