8471LS

Electronic, 1PR #16 Str TC, PO ins, Unsh, LSNH Jkt, 300V, SWA

...
Electronic, 1 Pair AWG 16 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Unshielded shielding, LSZH / FRNC jacket , 300V, SWA
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Instrumentation and computer cable; For data transmission applications

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
16 19x29 TC - Tinned Copper 1

Conductor Count

2

Total Number of Pairs

1

Insulation
Material Nominal Diameter Diameter +/- Tolerance
PE - Polyethylene 2.67 mm 0.05 mm
Color Chart
Number Color
Pair 1 Black & White
Inner Jacket
Material Color Nominal Diameter Nominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant) Chrome (RAL 7037) 7.1 mm 0.89 mm

Table Notes

UV Stabilised

Outer Shield
Material
No Shield
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant) 11.5 mm 1.3 mm

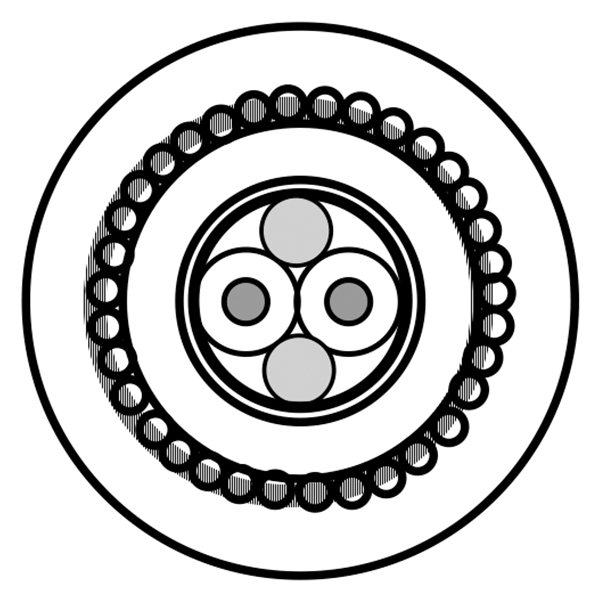

Construction and Dimensions
Cabling
Description Filler
1 pair and 2 fillers twisted to cable core covered with a polyester foil Polypropylene (2x) (White, 2.29 mm)
Armor
Type of Armor Material Thickness of Armoring Wires Coverage Percentage
Steel Wire Armoring Galvanized steel wire 0.9 mm Min. 95%
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
14.7 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
108.3 pF/m
Inductance
Nominal Pair Inductance
0.62 µH/m
Current
Element Max. Recommended Current [A]
Conductor(s) 7.1 Amps per Conductor
Voltage
Voltage Rating [V]
300 V
Temperature Range

Storage Temperature Range

-30°C to +80°C

Operating Temp Range (Fixed Install)

-15°C To +80°C

Mechanical Characteristics

Oil Resistance

IEC 60811-404

Min. Bend Radius During Installation

172.5 mm

Standards

CPR Euroclass

Eca

CENELEC Compliance

EN 50290-2-20
Applicable Environmental and Other Programs

Environmental Space

Indoor, Indoor/Outdoor, Outdoor, Indoor/Outdoor - Euroclass Eca
Suitability

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-3-24

IEC 60754-1 - Halogen Amount

Zero

IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity

2.5 µS/mm

IEC 60754-2 - Halogen Acid Gas Amount - Min. pH

4.3

IEC 61034-2 - Smoke Density Min. Transmittance

60%

History

Update and Revision

Revision Number: 0.231 Revision Date: 06-28-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
8471LS.00500 Black Reel 500 m 8719605018281
8471LS.001000 Black Reel 1,000 m 8719605018267
8471LS.001500 Black Reel 1,500 m 8719605018274
