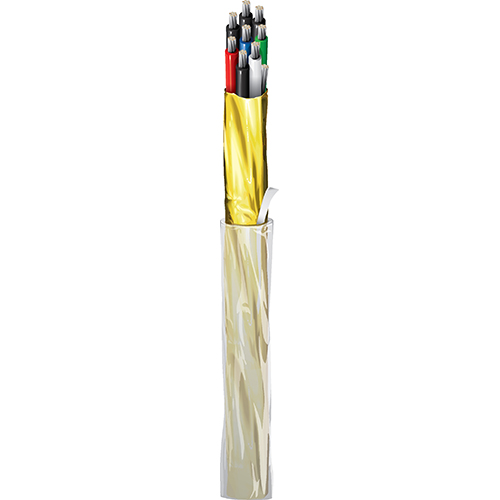

85168

Electronic, 8 Pr #20 Str TC, ETFE Ins, OS, ETFE Jkt

...
High Temperature Electronic, 8 Pair 20AWG (7x28) Tinned Copper, ETFE Insulation, Overall Beldfoil® Shield, ETFE Outer Jacket
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

extreme high/low temperature environments; chemical resistant; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); instrumentation

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
20 7x28 TC - Tinned Copper 8

Conductor Count

16

Total Number of Pairs

8

Insulation
Material Material Trade Name Nominal Wall Thickness
ETFE - Ethylene Tetrafluoroethylene Tefzel® 0.015 in
Color Chart
Number Color
1 Black & Red
2 Black & White
3 Black & Green
4 Black & Blue
5 Black & Yellow
6 Black & Brown
7 Black & Orange
8 Red & White
Outer Shield
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Kapton®) Beldfoil® 100% TC - Tinned Copper 22 7x30
Outer Jacket
Material Material Trade Name Nominal Diameter Nominal Wall Thickness
ETFE - Ethylene Tetrafluoroethylene Tefzel® 0.439 in 0.025 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
9.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
23 pF/ft 40 pF/ft
Inductance
Nominal Inductance
0.186 µH/ft
Impedance
Nominal Characteristic Impedance
73 Ohm
Current
Max. Recommended Current [A]
4 Amps per Conductor at 25ºC
Voltage
Non-UL Voltage Rating
300 V RMS
Temperature Range

UL Temp Rating

150°C

Operating Temperature Range

-60°C To +150°C

Mechanical Characteristics

Bulk Cable Weight

115 lbs/1000ft

Max. Pull Tension

224 lbs

Min. Bend Radius/Minor Axis

4.5 in
Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Related Part Numbers

Footnote

C - CRATE REEL PUT-UP.
Product Notes

Notes

Tefzel and Kapton are DuPont trademarks.

History

Update and Revision

Revision Number: 0.384 Revision Date: 12-22-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
85168 3681000 Clear, Transparent Reel 1,000 ft 612825210641
