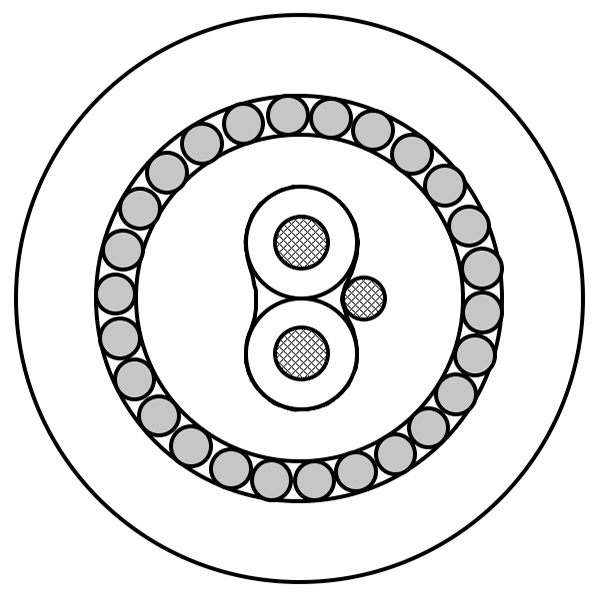

Product Number: 8719LS
Electronic, 2 C #16 Str TC, PE Ins, OS, PSZH Jkt, SWA, Eca
Electronic, 2 Conductor 16AWG (19x29) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, LSZH Outer Jacket, Steel Wire Armour, CPR Eca
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Instrumentation and computer cable for data transmission applications |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material |
|---|---|---|
| 16 | 19x29 | TC - Tinned Copper |
|
Conductor Count |
2 |
|---|---|
|
Total Number of Pairs |
1 |
Insulation
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| PE - Polyethylene | 3.1 mm | 0.07 mm |
Color Chart
| Number | Color |
|---|---|
| Wire 1 | Black |
| Wire 2 | Transparent |
Inner Shield
| Type | Material | Drainwire Material | Drainwire AWG |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | TC - Tinned Copper | 18 |
Inner Jacket
| Material | Color | Nominal Diameter |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | Chrome | 8.1 mm |
Outer Shield
| Material |
|---|
| Bi-Laminate (Alum+Poly) |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 12.5 mm | 1.3 mm |
Construction and Dimensions
Armor
| Type of Armor | Material | Thickness of Armoring Wires | Coverage Percentage |
|---|---|---|---|
| Steel Wire Armoring | Single steel wire | 0.9 mm | 95% |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|
| 14.76 Ohm/km | 20 Ohm/km |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|
| 75.4 pF/m | 144.4 pF/m |
Inductance
| Nominal Pair Inductance |
|---|
| 0.66 µH/m |
Current
| Max. Recommended Current [A] |
|---|
| 7 A |
Temperature Range
|
Installation Temperature Range |
-15°C To +80°C |
|---|---|
|
Storage Temperature Range |
-15°C To +80°C |
|
Operating Temperature Range |
-15°C To +80°C |
|
Operating Temp Range (Fixed Install) |
-45°C To +80°C |
Mechanical Characteristics
|
Oil Resistance |
IEC 60811-404 |
|---|---|
|
Bulk Cable Weight |
300 kg/km |
Standards
|
CPR Euroclass |
Dca-s1,d2,a1 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor, Indoor/Outdoor, Outdoor, Indoor/Outdoor - Euroclass Dca |
|---|
Flammability, LS0H, Toxicity Testing
|
IEC Flammability |
IEC 60332-1-2, IEC 60332-3-24 |
|---|---|
|
IEC 60754-1 - Halogen Amount |
Zero |
|
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity |
2.5 µS/mm |
|
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH |
4.3 |
History
|
Update and Revision |
Revision Number: 0.193 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.193 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 8719LS.009999 | Black | Reel | 1,450 m | 8719605018489 |
| 8719LS.001500 | Black | Reel | 1,500 m | 8719605018465 |
| 8719LS.002100 | Black | Reel | 2,100 m | 8719605018472 |
