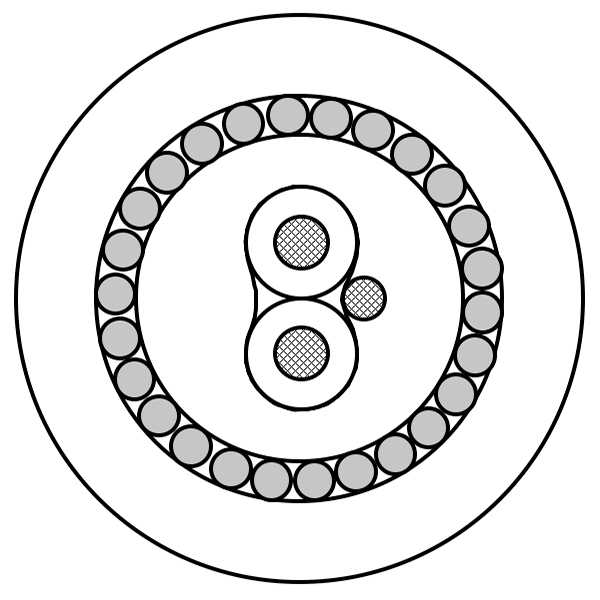

Product Number: 8719LWS
Electronic, 2 C #16 Str TC, PE Ins, OS, PSZH Jkt, SWA, Cca
Electronic, 2 Conductor 16AWG (19x29) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, LSZH Outer Jacket, Steel Wire Armour, CPR Cca
-
Availability:
Global
-
Global inventory:
Capability
Specifications
Product Overview
|
Suitable Applications |
up to 600V analog signals ; up to 600V digital control ; line level audio; voice communications; panel wiring |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material |
|---|---|---|
| 16 | 19x29 | TC - Tinned Copper |
|
Conductor Count |
2 |
|---|---|
|
Total Number of Pairs |
1 |
Insulation
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| PE - Polyethylene | 3.1 mm | 0.07 mm |
Inner Shield
| Type | Material | Drainwire AWG |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 18 |
Inner Jacket
| Material | Color | Nominal Diameter |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | Black | 8.1 mm |
Outer Shield
| Material |
|---|
| Bi-Laminate (Alum+Poly) |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 12.5 mm | 1.3 mm |
Construction and Dimensions
Armor
| Thickness of Armoring Wires | Coverage Percentage |
|---|---|
| 0.9 mm | 95% |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|
| 14.8 Ohm/km | 20 Ohm/km |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|
| 75 pF/m | 144 pF/m |
Inductance
| Nominal Pair Inductance |
|---|
| 0.66 µH/m |
Temperature Range
|
Installation Temperature Range |
-15°C To +80°C |
|---|---|
|
Storage Temperature Range |
-15°C To +80°C |
Mechanical Characteristics
|
Oil Resistance |
IEC 60811-404 |
|---|---|
|
Bulk Cable Weight |
300 kg/km |
Standards
|
CPR Euroclass |
Cca-s1,d2,a1 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor, Indoor/Outdoor, Outdoor, Indoor/Outdoor - Euroclass Cca |
|---|
Flammability, LS0H, Toxicity Testing
|
IEC Flammability |
IEC 60332-1-2, IEC 60332-3-24 |
|---|---|
|
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity |
2.5 µS/mm |
|
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH |
4.3 |
Product Notes
|
Notes |
This is a preliminary Technical Design Specification (TDS) which is subject to modification throughout the prototyping phase. The minimum business quantity to offer is 3km for the first order. This product will have Black as standard color and 305mt or 500mt as standard put-ups. Additional options for colors and put-ups are available on special request. The estimated production lead time for the first order will be similar to the production lead time of 8719LS plus extra 6-7 weeks. Please liaise with your Belden representative for confirmation. |
|---|
History
|
Update and Revision |
Revision Number: 0.64 Revision Date: 06-19-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.64 Revision Date: 06-19-2024 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 8719LWS.001000 | Black | Reel | 1,000 m | 8719605192080 |
