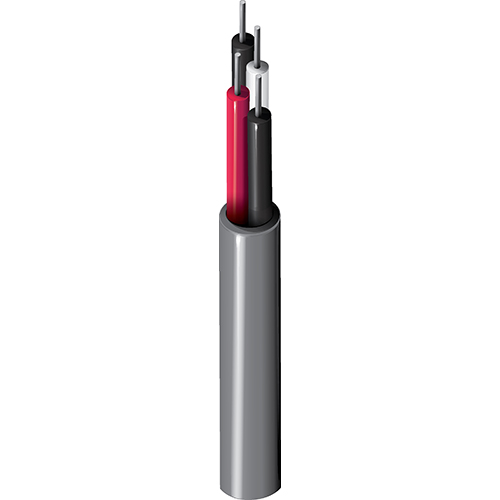

8757

Electronic, 4 Pr #22 Sol TC, PVC Ins, PVC Jkt, CMG

...
Electronic, 4 Pair 22AWG (Solid) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

telephone cables; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); voice communications

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 4 22 AWG Solid TC - Tinned Copper
Insulation
Element Material Nom. Thickness Color Code
Pair(s) PVC - Polyvinyl Chloride 0.010 in (0.25 mm) Black & Red, Black & White, Black & Green, Black & Blue
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.032 in (0.81 mm) 0.264 in (6.71 mm)

Overall Cable Diameter (Nominal)

0.264 in (6.71 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Pair(s) 16.5 Ohm/1000ft (54.1 Ohm/km) 30 pF/ft (98 pF/m) 1.96 Amps per Conductor at 20ºC
Voltage
UL Voltage Rating
300 V (CMG), 150 V (UL AWM 2576)
Mechanical Characteristics
Temperature
UL Temperature Operating
80°C (UL AWM 2576) -20°C to +80°C

Max. Pull Tension

60 lbs (27 kg)

Bulk Cable Weight

36 lbs/1000ft (54 kg/km)

Standards and Compliance

Flammability / Reaction to Fire

UL1685 FT4 Loading

NEC / UL Compliance

Article 800, CMG

AWM Compliance

AMW 2576

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

88757 or 82757 (Stranded conductors)

History

Update and Revision

Revision Number: 0.351 Revision Date: 12-22-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
8757 0601000 Chrome Reel 1,000 ft 612825215073 C
