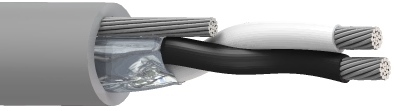

Product Number: 8761MN
SpaceMaker™, 2 C #22 Str TC, PO Ins, OS, PVC Jkt, AWM 2937
SpaceMaker™, 2 Conductor 22AWG (19x34) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, AWM 2937
-
Availability:
Global
-
Global inventory:
Available
Specifications
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 22 AWG | 19x34 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | PP - Polypropylene | 0.01 in (0.25 mm) | 0.050 in (1.3 mm) | Black & White |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (19x36) TC |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.016 in (0.41 mm) | 0.135 in |
|
Overall Cable Diameter (Nominal) |
0.135 in |
|---|
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedence | Max. Current |
|---|---|---|---|---|
| 18.1 Ohm/1000ft | 28.8 pF/ft (94.5 pF/m) | 55.9 pF/ft (183 pF/m) | 51 Ohm | 4.64 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 80°C | -20°C To +80°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.350 in (34.29 mm) | 1.350 in |
|
Max. Pull Tension |
15.4 lbs (6.99 kg) |
|---|---|
|
Bulk Cable Weight |
11 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor |
|---|---|
|
CPR Compliance |
CPR Euroclass: Eca |
|
AWM Compliance |
AWM 2937 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
History
|
Update and Revision |
Revision Number: 0.405 Revision Date: 02-15-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.405 Revision Date: 02-15-2024 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| 8761MN 006100 | Blue, Light | 612825386032 |
| 8761MN 0061000 | Blue, Light | 612825386049 |
| 8761MN 008100 | Gray | 612825386056 |
| 8761MN 0081000 | Gray | 612825382737 |
