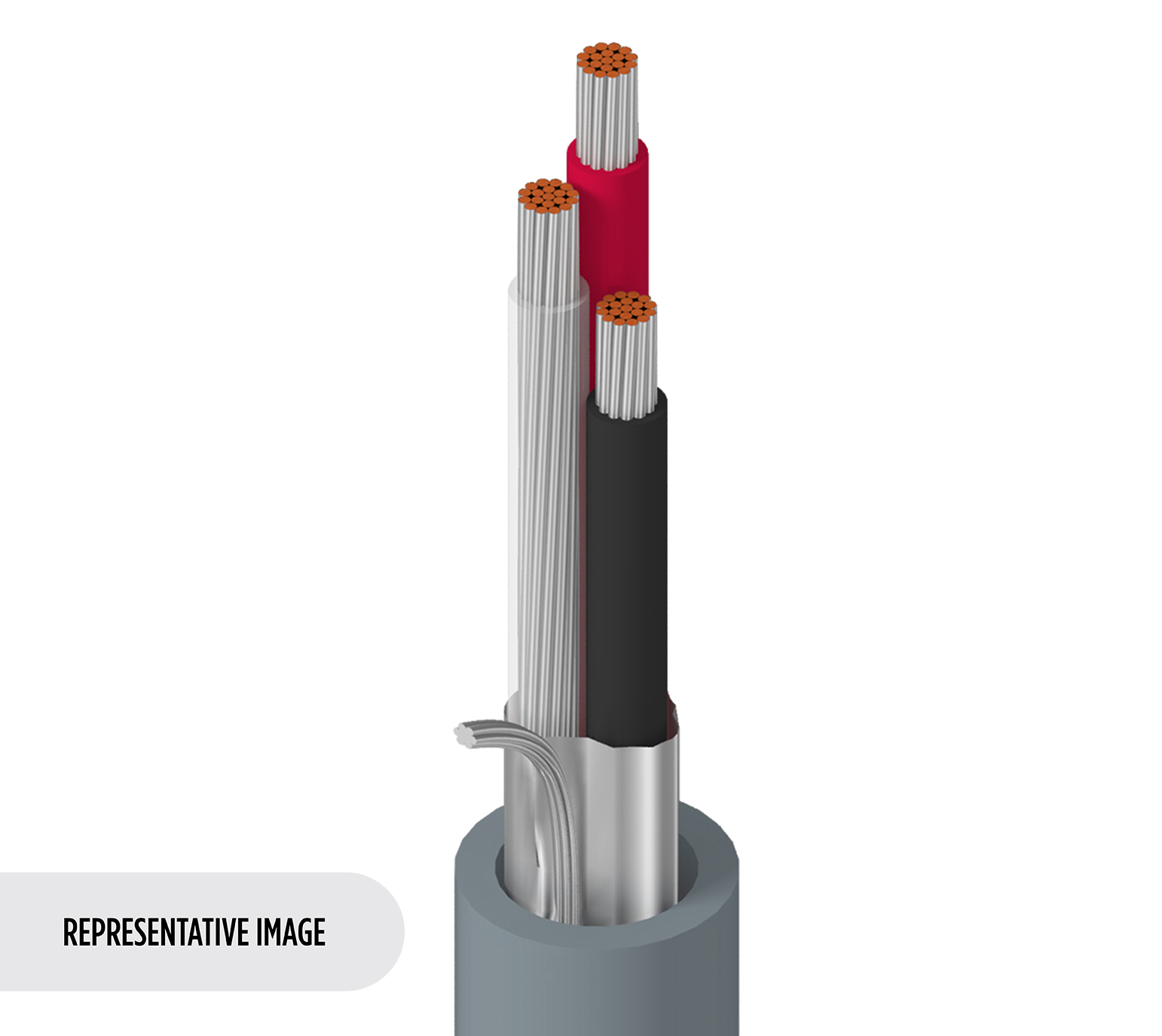

8770ELW

Electronic, 3C #18 Str TC, PO ins, OS, LSNH Jkt 300V, Cca

...
Electronic, 3 Conductor AWG 18 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Foil(s) or Copper Tape(s) shielding, LSZH / FRNC jacket , 300V, Cca
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Audio, Control & Instrumentation cable; For data transmission applications

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors
18 16x30 TC - Tinned Copper 3

Conductor Count

3

Insulation
Material Nominal Diameter Diameter +/- Tolerance Nominal Wall Thickness
PE - Polyethylene 2.08 mm 0.05 mm 0.018 in
Color Chart
Number Color
Wire 1 Black
Wire 2 Red
Wire 3 Clear
Outer Shield
Type Material Material Trade Name Coverage [%] Thickness of Foil Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) Beldfoil® (Z-Fold®) 100% 9 / 12 µm TC - Tinned Copper AWG20/7 Stranded
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant) 6.25 mm 0.84 mm
Construction and Dimensions
Cabling
Description Twists
3 wires twisted to cable core 8 twist/ft
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
21.7 Ohm/km 27.9 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
78.7 pF/m 157.5 pF/m
Inductance
Nominal Inductance
0.605 µH/m
Impedance
Nominal Characteristic Impedance
69 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
66%
Current
Element Max. Recommended Current [A]
Conductor(s) 5.3 Amps per Conductor
Voltage
Voltage Rating [V]
300 V
Temperature Range

Installation Temperature Range

-15°C To +80°C

Storage Temperature Range

-45°C To +80°C

Operating Temp Range (Flexible Install)

-15°C To +80°C

Operating Temp Range (Fixed Install)

-45°C To +80°C

Mechanical Characteristics

Oil Resistance

IEC 60811-404

Max. Pull Tension

335 N

Min. Bend Radius During Installation

62.5 mm

Min. Bend Radius/Minor Axis

2.5 in
Standards

CPR Euroclass

Cca-s1,d1,a1

CENELEC Compliance

EN 50290-2-20
Applicable Environmental and Other Programs

Environmental Space

Indoor - Euroclass Cca

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Indoor

Yes

Suitability - Non-Halogenated

Yes

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-1-2

IEC 60754-1 - Halogen Amount

Zero

IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity

2.5 µS/mm

IEC 60754-2 - Halogen Acid Gas Amount - Min. pH

4.3

IEC 61034-2 - Smoke Density Min. Transmittance

60%

Plenum/Non-Plenum

Plenum (Y/N)

No

History

Update and Revision

Revision Number: 0.35 Revision Date: 06-28-2024

Show All Specifications
Hide Specifications
Part Numbers
Item #
8770ELW.00305
