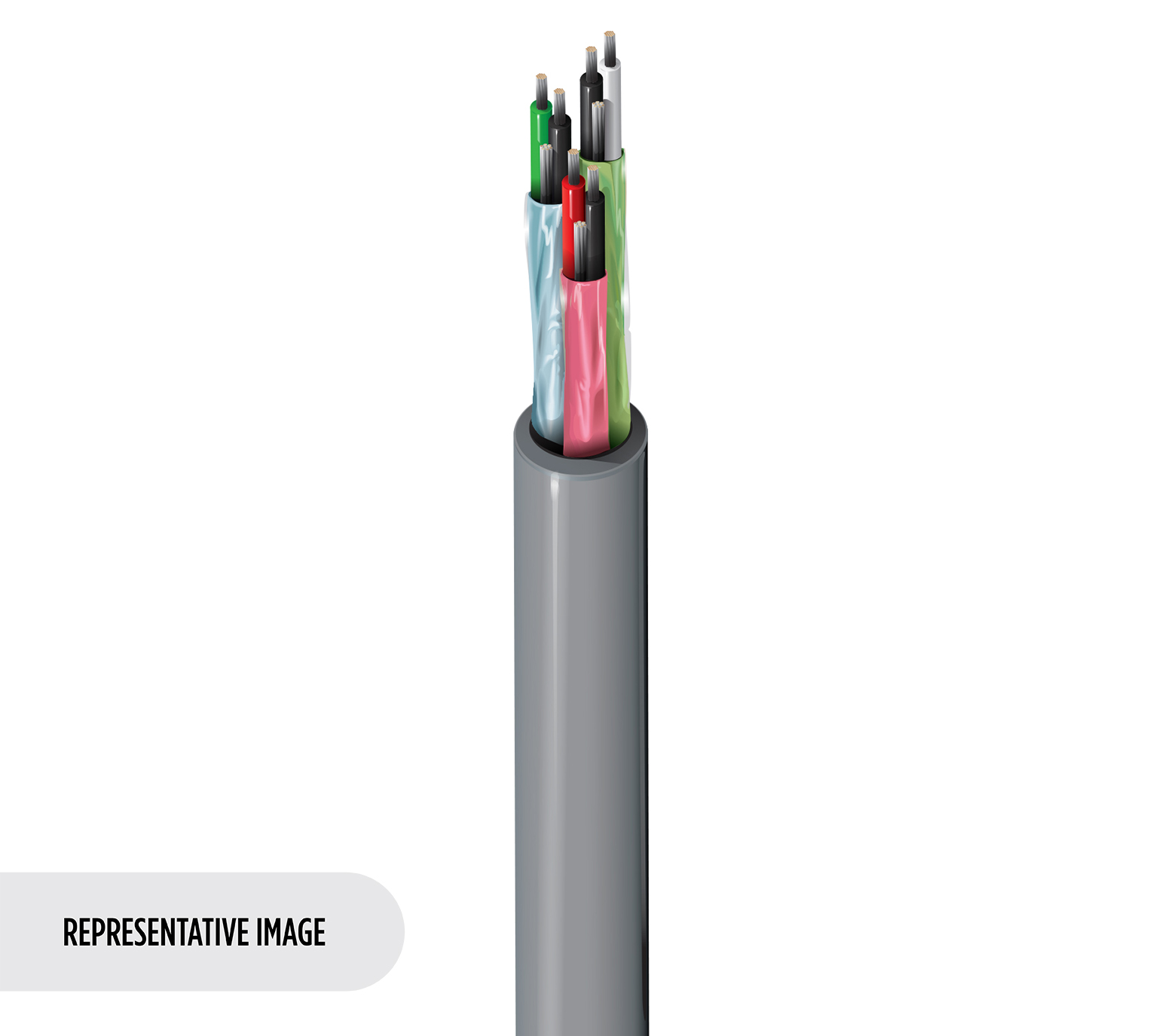

Product Number: 8777NH
Audio, Control & Instrument, #22-3pr, PP, Indiv. Foil, LSZH Jkt
Audio, Control & Instrument Cable, 3-Pair, 22 AWG stranded (7x30) tinned copper conductors, polypropylene insulation, individually shielded pairs (100% coverage), 22 AWG stranded tinned copper drain wire, LSZH jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring |
|---|
Construction Details
Conductor
| Size | Stranding | Material |
|---|---|---|
| 22 | 7x30 | TC - Tinned Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PP - Polypropylene | 1.27 mm (0.0500 in) | Black & Red, Black & White, Black & Green |
| Red, Green, Blue |
Inner Shield
| Shield Type | Material | Coverage | Drainwire Type | Notes |
|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7x30) TC | each pair |
| Polyester | each pair |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 0.89 mm (0.035 in) | 7.00 mm (0.276 in) |
|
Overall Cable Diameter (Nominal) |
7.00 mm (0.276 in) |
|---|
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Nom. Inner Shield DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Max. Current |
|---|---|---|---|---|---|
| 49.2 Ohm/km (15.0 Ohm/1000ft) | 34.8 Ohm/km (10.6 Ohm/1000ft) | 98.4 pF/m (30.0 pF/ft) | 180.4 pF/m (54.99 pF/ft) | 50 Ohm | 2 A |
Voltage
| Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| Operating | Installation | Storage |
|---|---|---|
| -45°C To +80°C | -15°C To +80°C | -45°C To +80°C |
Bend Radius
| Installation Min. |
|---|
| 70 mm (2.8 in) |
|
Max. Pull Tension |
180 N (40 lbf) |
|---|---|
|
Bulk Cable Weight |
42 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor - Euroclass Dca, Indoor, Non-Halogenated, Sunlight Resistance |
|---|---|
|
Flammability / Reaction to Fire |
IEC 60332-1-2, IEC 60332-3-24 |
|
CPR Compliance |
CPR Euroclass: Dca-s1,d1,a1; CPR UKCA Class: Dca-s1,d1,a1 |
|
ISO/IEC Compliance |
IEC 61034-2 - Smoke Density Min Transmittance = 60% |
|
CENELEC Compliance |
EN 50290-2-20 |
|
European Halogen Free Standards |
IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
|
European Directive Compliance |
EU CE Mark |
|
UK Regulation Compliance |
UKCA Mark |
History
|
Update and Revision |
Revision Number: 0.335 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.335 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| 8777NH.00152 | Chrome | Reel | 152 m | 8719605019608 |
| 8777NH.00305 | Chrome | Reel | 305 m | 8719605019615 |
| 8777NH.00500 | Chrome | Reel | 500 m | 8719605019622 |
| 8777NH.001000 | Chrome | Reel | 1,000 m | 8719605019592 |
