Product Number: 89463

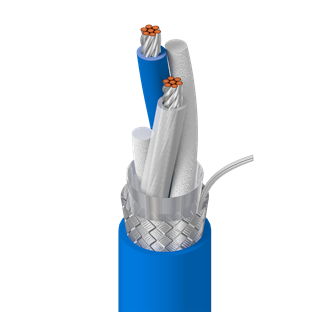

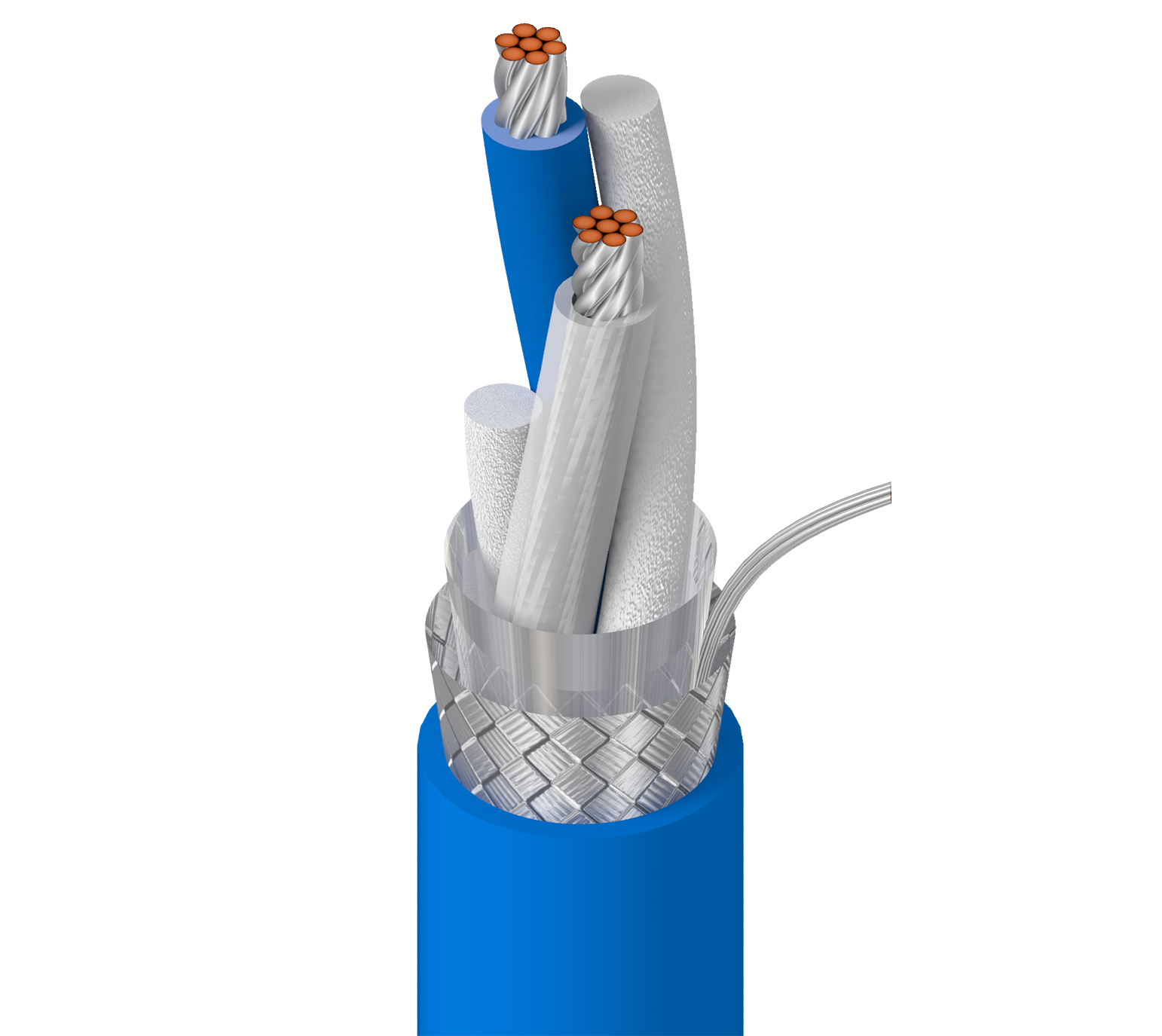

Blue Hose®, 1 Pr #20 Str TC, FEP Ins Blu, Clr, Foil+TC Brd, FEP Jkt, CMP
Blue Hose® for Data Highway Plus, 1 Pair 20AWG (7x28) Tinned Copper, FEP Insulation Blue & Clear, Overall Beldfoil®+Tinned Copper Braid(76%) Shield, Blue FEP Outer Jacket, CMP
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
extreme temp, exposure to oil and gasoline, harsh environment, Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers and other intelligent devices, PLC processor interlocking, peer-to-peer messaging, remote programming, troubleshooting, I/O updates, etc. |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 20 AWG | 7x28 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|---|---|
| Pair(s) | FEP - Fluorinated Ethylene Propylene | 0.0175 in (0.445 mm) | 0.073 in (1.9 mm) | Clear & Blue | Twinax with rod fillers |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 20 AWG (7x28) TC |
| Braid | Tinned Copper (TC) | 76% |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| FEP - Fluorinated Ethylene Propylene | 0.015 in (0.38 mm) | 0.203 in (5.16 mm) |
|
Overall Cable Diameter (Nominal) |
0.203 in (5.16 mm) |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedence | Nom. Velocity of Prop. |
|---|---|---|---|---|---|
| Pair(s) | 9.5 Ohm/1000ft | 19.7 pF/ft (64.6 pF/m) | 37 pF/ft | 78 Ohm | 69% |
|
Nom. Outer Shield DCR |
4.1 Ohm/1000ft (13 Ohm/km) |
|---|
High Frequency (Nominal/Typical)
| Element | Frequency [MHz] | Nom. Insertion Loss (Attenuation) |
|---|---|---|
| Pair(s) | 1 | 0.6 dB/100ft |
| 10 | 2.1 dB/100ft | |
| 50 | 5 dB/100ft | |
| 100 | 7.5 dB/100ft | |
| 200 | 11 dB/100ft | |
| 400 | 16 dB/100ft |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CMP, CL2P) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 200°C | -70°C to +200°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 2.5 in (64 mm) | 2.5 in (64 mm) |
|
Max. Pull Tension |
48 lbs (22 kg) |
|---|---|
|
Bulk Cable Weight |
34 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor |
|---|---|
|
Flammability / Reaction to Fire |
NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 725, Article 800 |
|
CEC / C(UL) Compliance |
CMP |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Other Standard Compliance(s) |
Allen Bradley Part No. 1770-CD |
|
Non-Plenum Number |
9463 |
History
|
Update and Revision |
Revision Number: 0.614 Revision Date: 02-07-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.614 Revision Date: 02-07-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 89463 0061000 | Blue, Light | Reel | 1,000 ft | 612825220978 | C |
| 89463 0062500 | Blue, Light | Reel | 2,500 ft | 612825220985 | C |
