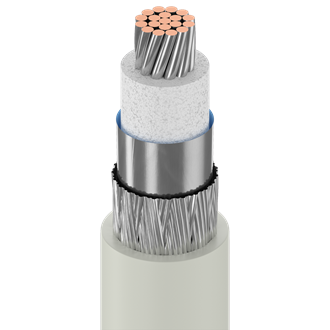

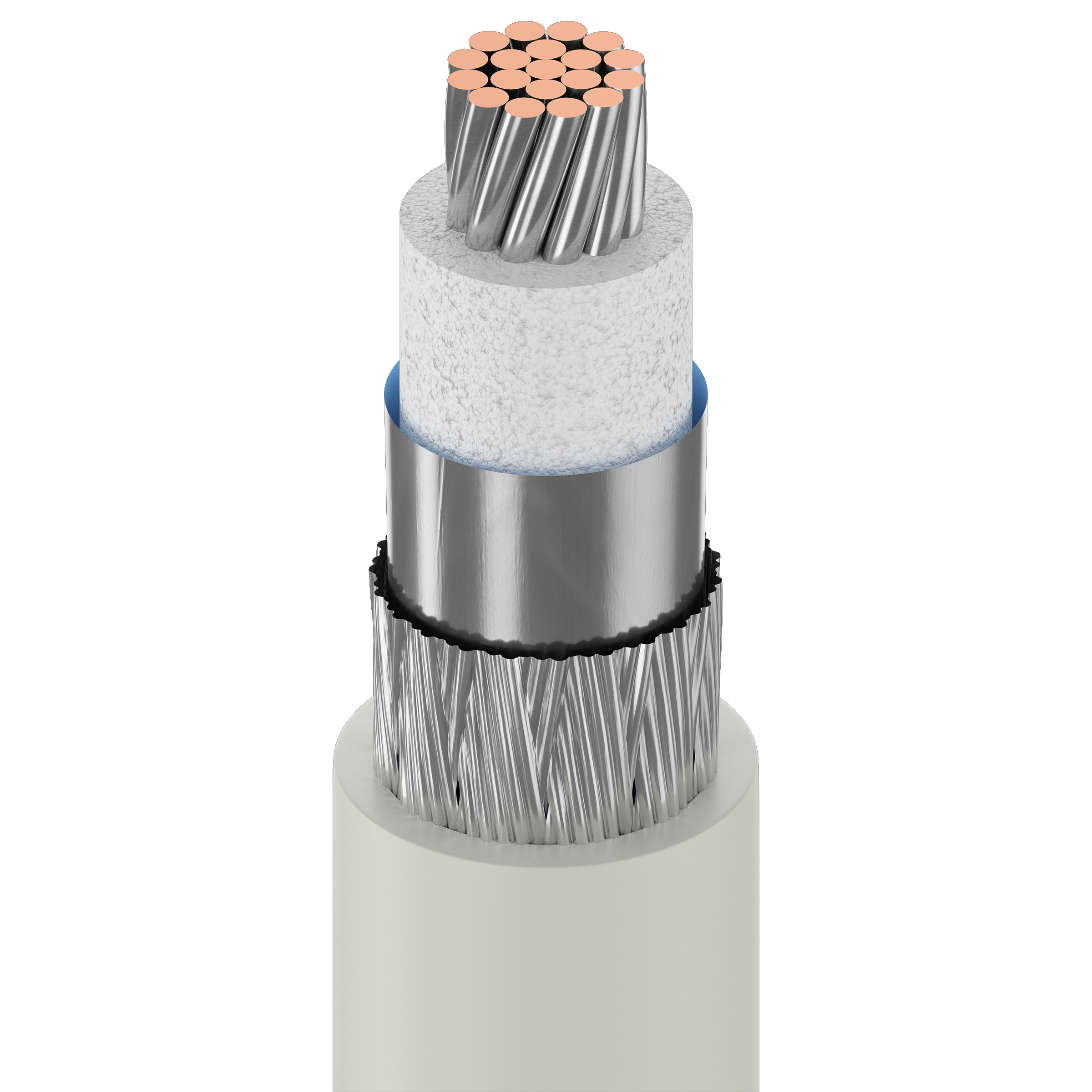

89901

Transceiver 10BASE5, #20-4pr, FEP, Indiv. Foil Shielded pairs with Isolated Overall Duofoil + Brd, CMP

...
IEEE 802.3 Ethernet Transceiver 10BASE5, 20 AWG stranded (7x28) tinned copper conductors, plenum, FEP insulation, twisted pairs, Individually foil shielded pairs, overall polyester isolation tape + Duofoil® + tinned copper braid shield (95% coverage), drain wire, light gray fluorocopolymer (PVDF) jacket, plenum rated

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

10Base5 Transceiver

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Data Pair(s) 3 20 AWG 7x28 TC - Tinned Copper
Power Pair(s) 1 20 AWG 7x28 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Data Pair(s) FEP - Fluorinated Ethylene Propylene (Foam) 0.019 in (0.48 mm) 0.076 in (1.9 mm) Gray & White, Yellow & Orange, Blue & Green
Power Pair(s) FEP - Fluorinated Ethylene Propylene 0.011 in (0.28 mm) 0.060 in (1.5 mm) Black & Red
Inner Shield
Element Shield Type Material Coverage Notes
Data Pair(s) Tape Bi-Laminate (Alum+Poly) 100% Foil Out
Power Pair(s) Tape Bi-Laminate (Alum+Poly) 100% Foil Out
Outer Shield
Shield Type Material Coverage Drainwire Type Notes
Tape Tri-Laminate (Alum+Poly+Alum) 100% 22 AWG (7x30) TC Polyester Isolating tape under DuoFoil
Braid Tinned Copper (TC) 93%
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVDF - Polyvinylidene Fluoride 0.016 in (0.41 mm) 0.370 in (9.40 mm)

Overall Cable Diameter (Nominal)

0.370 in (9.40 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Data Pair(s) 11.3 Ohm/1000ft 16.7 pF/ft (54.8 pF/m) 29.5 pF/ft (96.8 pF/m) 78 Ohm 78% 3.8 Amps per Conductor at 25ºC
Pair(s) 3.8 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CMG)
Mechanical Characteristics
Temperature
UL Temperature Operating
150°C -20°C to +150°C
Bend Radius
Stationary Min. Installation Min.
3.7 in (94 mm) 3.7 in (94 mm)

Max. Pull Tension

97.7 lbs (44.3 kg)

Bulk Cable Weight

93 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor

Flammability / Reaction to Fire

NFPA 262 (UL910), FT6, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CMP

CEC / C(UL) Compliance

CMP

IEEE Compliance

IEEE 802.3 10Base5

European Directive Compliance

EU CE Mark, REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

DEC Part No. 17-01319-00

Non-Plenum Number

9901

History

Update and Revision

Revision Number: 0.501 Revision Date: 02-03-2025

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC Footnote
89901 E4X1000 Gray, Light Dec 612825221401 C
89901 E4X500 Gray, Light Dec 612825221418 C
