9154

Electronic, 2 C #20 Str TC, PVC Ins, OS, PVC Jkt, CMG

...

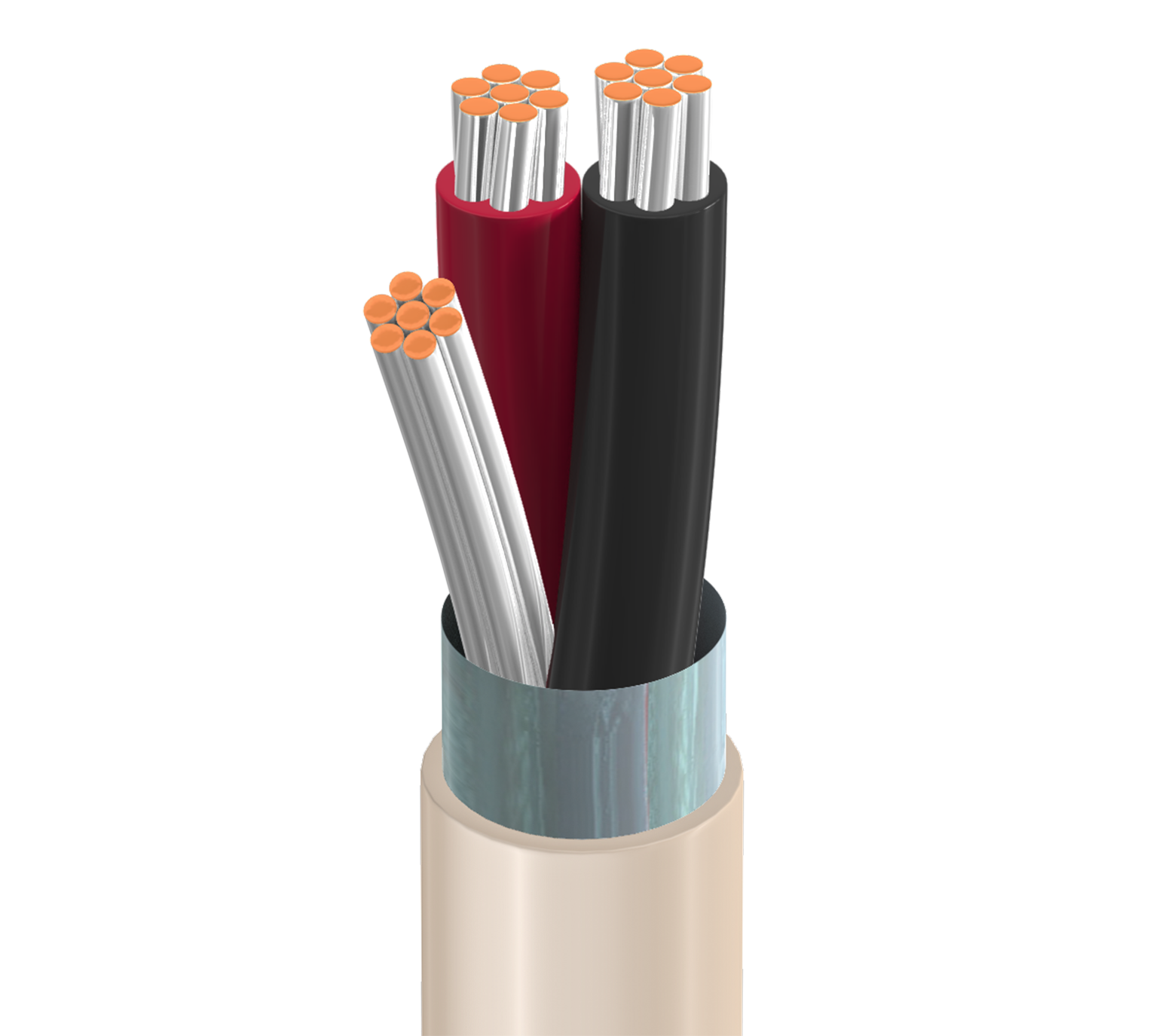

Electronic, 2 Conductor 20AWG (7x28) Tinned Copper, PVC Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CMG
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 20 AWG 7x28 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC - Polyvinyl Chloride 0.015 in (0.38 mm) 0.065 in (1.7 mm) Black, Red
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7x30) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.031 in (0.79 mm) 0.198 in (5.03 mm)

Overall Cable Diameter (Nominal)

0.198 in (5.03 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Max. Current
Conductor(s) 9.5 Ohm/1000ft 60 pF/ft (200 pF/m) 100 pF/ft (330 pF/m) 36 Ohm 4 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CMG), 300 V (UL AWM 2464)
Mechanical Characteristics
Temperature
UL Temperature Operating
80°C -20°C to +80°C
Bend Radius
Stationary Min. Installation Min.
2.0 in (51 mm) 2.0 in (51 mm)

Max. Pull Tension

34 lbs (15 kg)

Bulk Cable Weight

20 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

Sustainability

CA Prop 65

Flammability / Reaction to Fire

UL 1685 FT4 Loading, FT4, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CMG

AWM Compliance

AWM 2464

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.530 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
9154 290500 Beige, Light Reel 500 ft 612825224778 C
9154 290U500 Beige, Light UnReel 500 ft 612825224754
9154 2901000 Beige, Light Reel 1,000 ft 612825224761 C
9154 290U1000 Beige, Light UnReel 1,000 ft 612825224747
9154 2905000 Beige, Light Reel 5,000 ft 612825224785
