Product Number: 9462ZH
Electronic, 2 C #22 Str TC, PO Ins, OS, LSZH Jkt, CMG

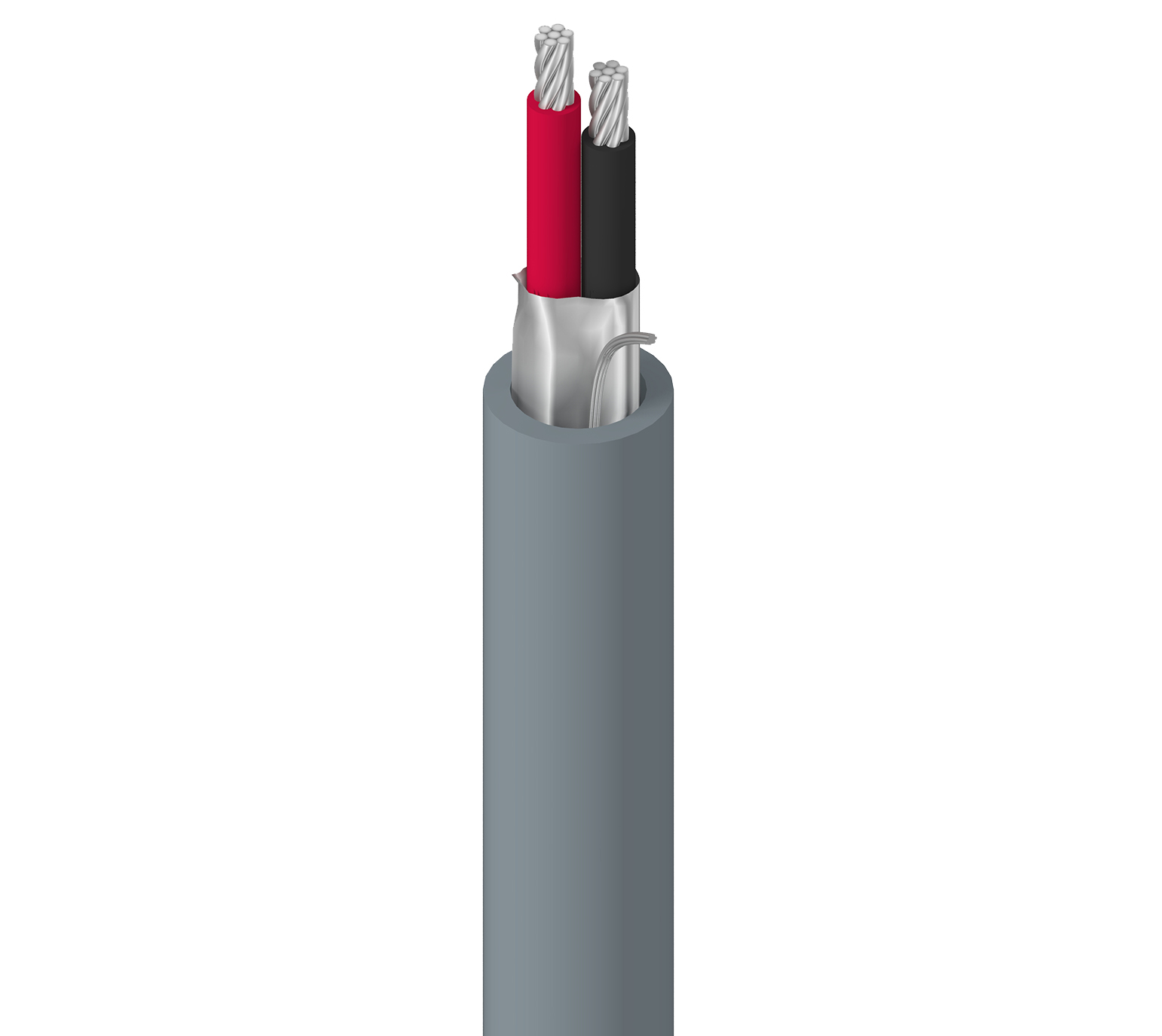

Electronic, 2 Conductor 22AWG (7x30) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, LSZH Outer Jacket, CMG
-
Availability:
Global
-
Global inventory:
Available
Specifications
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 22 AWG | 7x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | PP - Polypropylene | 0.0135 in (0.343 mm) | 0.056 in (1.4 mm) | Black and Red |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7x30) TC |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 0.035 in (0.89 mm) | 0.185 in |
|
Overall Cable Diameter (Nominal) |
0.185 in. |
|---|
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|
| 17.8 Ohm/1000ft | 25.0 pF/ft (82.0 pF/m) | 45.0 pF/ft (148 pF/m) | 3 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 75°C | -20°C to 75°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.85 in (47.0 mm) | 1.85 in |
|
Max. Pull Tension |
27 lbs (12 kg) |
|---|---|
|
Bulk Cable Weight |
17 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor |
|---|---|
|
Flammability / Reaction to Fire |
UL 1685 FT4 Loading |
|
NEC / UL Compliance |
Article 800, CMG |
|
AWM Compliance |
AWM 21307 |
|
CEC / C(UL) Compliance |
CMG |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
History
|
Update and Revision |
Revision Number: 0.282 Revision Date: 02-15-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.282 Revision Date: 02-15-2024 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| 9462ZH 0101000 | Black | 612825382294 |
| 9462ZH 010500 | Black | 612825382300 |
