Product Number: 3108Z
RS485, 3 Pr #22 Str TC, PE Ins, OS+TC Brd, LSZH-TS Jkt, CMG, PLTC

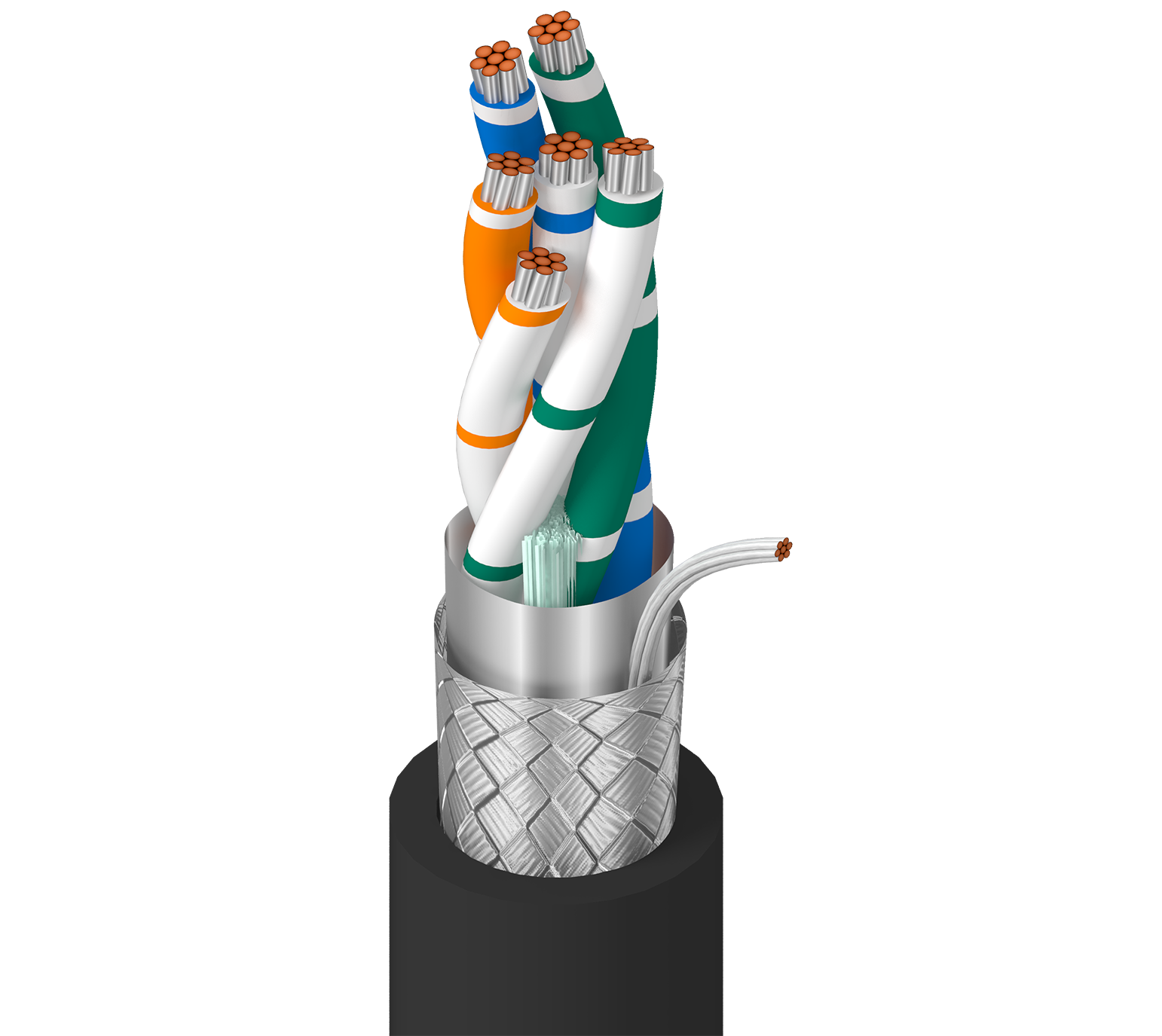

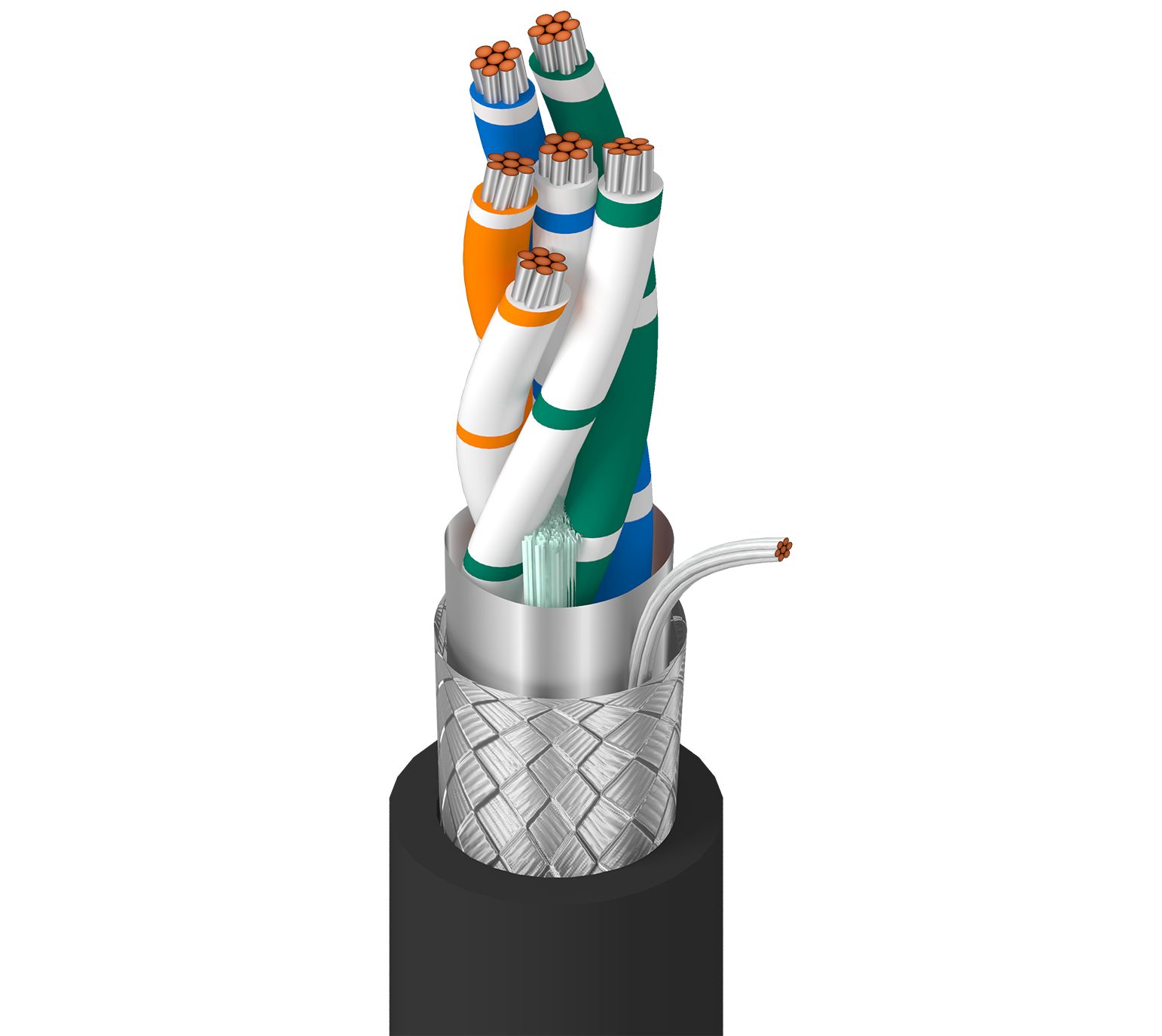

MarineTuff RS-485, 3 Pair 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, LSZH-TS Outer Jacket, CMG, PLTC,ABS (21-2090759-PDA-DUP)
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 3 | 22 AWG | 7x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Color Code | Notes |
|---|---|---|---|---|
| Pair(s) | PE - Polyethylene (Foam) | 0.023 in (0.58 mm) | White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe | HDPE |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7x30) TC |
| Braid | Tinned Copper (TC) | 65% |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset) | 0.100 in (2.54 mm) | 0.468 in (11.9 mm) |
|
Overall Cable Diameter (Nominal) |
0.468 in (11.9 mm) |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Characteristic Impedence | Nom. Velocity of Prop. |
|---|---|---|
| Pair(s) | 120 Ohm | 78% |
High Frequency (Nominal/Typical)
| Element |
|---|
| Pair(s) |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CMG, PLTC) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 75°C | -20°C to +75°C |
|
Max. Pull Tension |
93 lbs (42 kg) |
|---|---|
|
Bulk Cable Weight |
110 lbs/1000ft (160 kg/km) |
Standards and Compliance
|
Environmental Suitability |
Indoor, Outdoor, Sunlight Resistance |
|---|---|
|
Flammability / Reaction to Fire |
UL1685 UL Loading |
|
NEC / UL Compliance |
Article 725, Article 800, CMG, PLTC |
|
CEC / C(UL) Compliance |
CMG |
|
European Directive Compliance |
EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
History
|
Update and Revision |
Revision Number: 0.218 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.218 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| 3108Z 0105000 | Black | 612825141792 |
